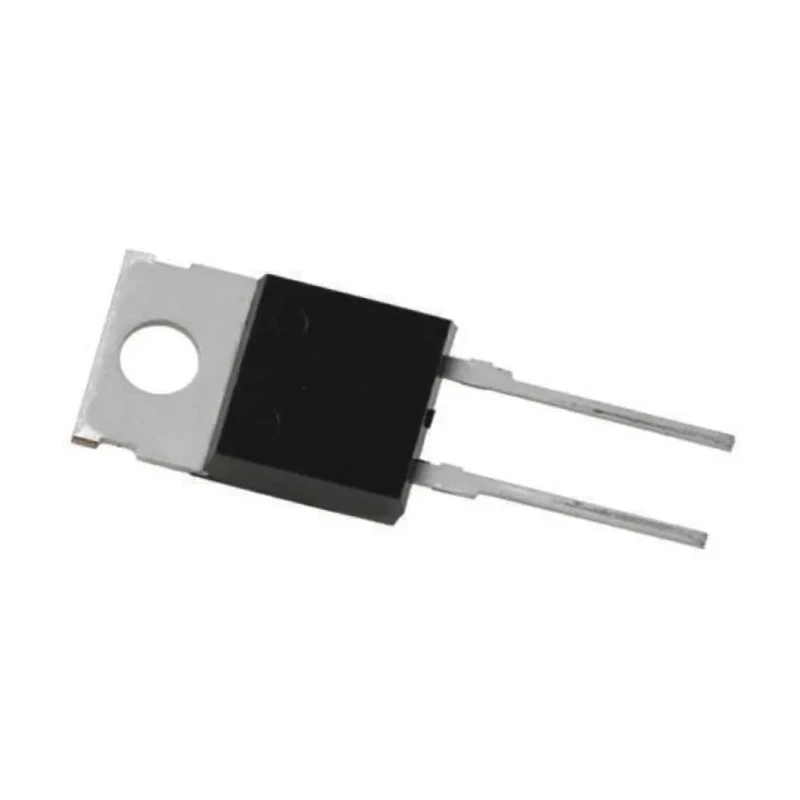

STMicroelectronics Diode Switching 600 V 8 A 2-Pin TO-220AC STTH8R06D
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STTH8R06D |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STTH8R06 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 30μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 2.9V |
| Peak Reverse Recovery Time trr | 45ns |
| Infineon Silicon Diode, Single, 7.5 A, 2-Pin 650 V TO-220 IDV15E65D2XKSA1Brand | Infineon |
Key Features
- Supports maximum continuous forward current of 8 amperes.
- Features peak reverse repetitive voltage of 600 volts.
- Utilizes a single diode configuration with switching rectifier type.
- Equipped with a maximum forward voltage drop of 2.9 volts.
- Has a peak reverse recovery time of 45 nanoseconds for fast switching.
- Operates across temperature range from -65°C to 175°C.
- Mount type is through hole with 2-pin configuration in TO-220AC package.
- Complies with RoHS standards for environmental safety.
Product Description
STMicroelectronics STTH8R06D diode switching device is designed for efficient power control in electronic circuits. It provides a maximum continuous forward current of 8 A and peak repetitive reverse voltage of 600 V, making it suitable for a wide range of industrial and commercial power applications.
Packaged in a TO-220AC through-hole format with 2 pins, the device enables easy mounting and integration into PCB designs. Its fast switching capability is supported by a peak reverse recovery time of only 45 nanoseconds, enhancing performance in switching power supplies and rectification circuits.
The diode maintains reliable operation over a wide temperature range from -65°C to 175°C. It features a low forward voltage drop of 2.9 V, which aids in reducing power dissipation. The STTH8R06D is RoHS compliant, addressing environmental and regulatory requirements.
The compact dimensions (10.4 mm length, 4.6 mm width, 9.3 mm height, and 3 mm diameter) make it ideal for space-constrained applications. With a peak surge current rating of 80 A, it withstands high transient loads effectively.
Supports maximum continuous forward current of 8 amperes. Features peak reverse repetitive voltage of 600 volts. Single diode configuration with switching rectifier type. Maximum forward voltage is 2.9 volts. Peak reverse recovery time is 45 nanoseconds.
Operating temperature range from -65°C to 175°C. Through hole mount type, TO-220AC package. RoHS compliant for environmental safety. Compact dimensions suitable for PCB integration. Peak surge current capability of 80 amperes.
This switching diode is widely used in industrial automation, power supply regulation, and electronic circuit design requiring efficient rectification and fast switching response. Explore similar Semiconductor Diodes and switching rectifiers on EnvMart for diverse industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 8 amperes.
It features a peak reverse repetitive voltage of 600 volts.
The maximum forward voltage drop is 2.9 volts.
This diode has a peak reverse recovery time of 45 nanoseconds.
It operates across a temperature range from -65°C to 175°C.
This model uses a through-hole mounting type in a TO-220AC package.
The dimensions are 10.4 mm in length, 4.6 mm in width, and 9.3 mm in height, with a diameter of 3 mm.
The peak non-repetitive forward surge current rating is 80 amperes.
Yes, it complies with RoHS standards for environmental safety.
It utilizes a single diode configuration with a switching rectifier type.
This diode is suitable for industrial automation, power supply regulation, and electronic circuit design requiring efficient rectification and fast switching response.
The peak reverse current is rated at 30 microamperes (30μA).
