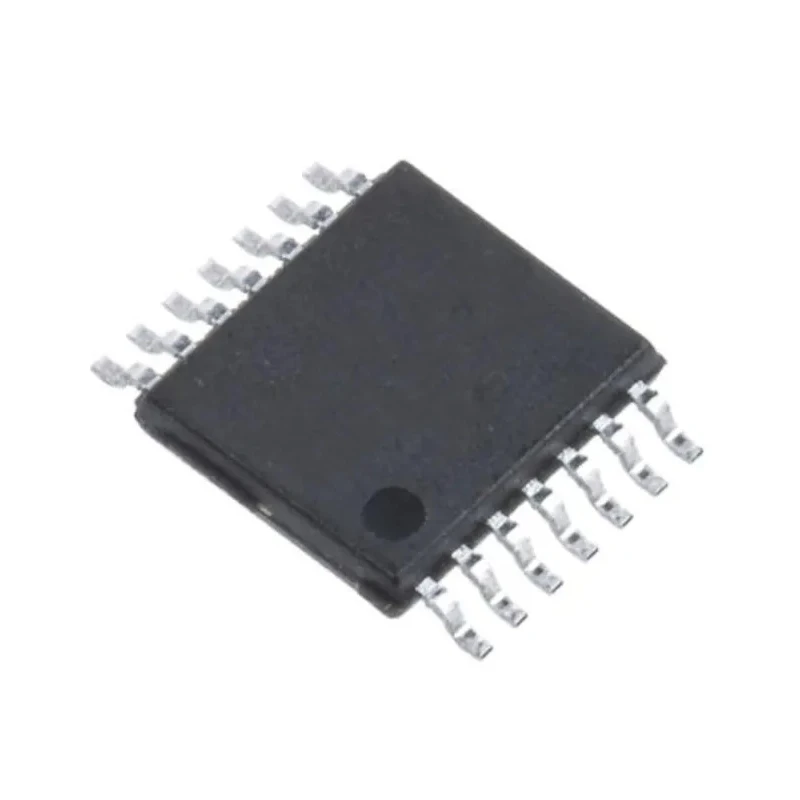

onsemi Non-Inverting CMOS Buffer VHCT Logic Family 14-Pin TSSOP MC74VHCT50ADTR2G

onsemi MC74VHCT50ADTR2G is a non-inverting CMOS buffer IC belonging to the VHCT logic family, housed in a 14-pin TSSOP surface-mount package. It operates on a minimum supply voltage of 2V and a maximum of 5.5V, making it suitable for a wide range of low voltage applications in electronic and semiconductor industry sectors.

The device features a high-speed typical propagation delay time of 3.5 nanoseconds at a 5V supply and a low power dissipation with a maximum supply current of 2mA at 25°C ambient. Its inputs are compatible with LS-TTL voltage levels, and outputs provide CMOS-compatible switching with VOH greater than 0.8 times VCC and VOL below 0.1 times VCC under load conditions, ensuring reliable logic level interfacing.

The operating temperature range is industrial grade from -55°C up to 125°C, and it conforms to rigorous quality standards including RoHS compliance and AEC-Q100 automotive certification, enabling use in automotive and other high-reliability environments.

This compact component measures 5.1mm in length and 1.2mm in height, featuring 14 pins in a thin shrink small outline package (TSSOP), which supports high-density PCB layouts.

Applications for this buffer IC include signal buffering in digital circuits, logic level translation, and driving capacitive loads in diverse industrial, automotive, and electronic manufacturing fields.

High speed operation with typical propagation delay of 3.5ns at 5V supply voltage. Low power dissipation with a maximum supply current of 2mA at 25°C ambient temperature. Operates over a wide power supply voltage range from 2V to 5.5V.

Designed with LS-TTL compatible inputs and CMOS compatible outputs. Surface mount TSSOP package with 14 pins and a compact form factor. Wide operating temperature range from -55°C to 125°C for industrial applications. Compliant with RoHS and AEC-Q100 automotive standards for reliability.

Pin count of 14 and package height of 1.2mm and length of 5.1mm.

This product is a new condition semiconductor buffer IC from onsemi, ideal for applications requiring fast, reliable logic buffering in electronic circuits. Browse the EnvMart electronics category for additional semiconductor and buffer IC components from top brands.
