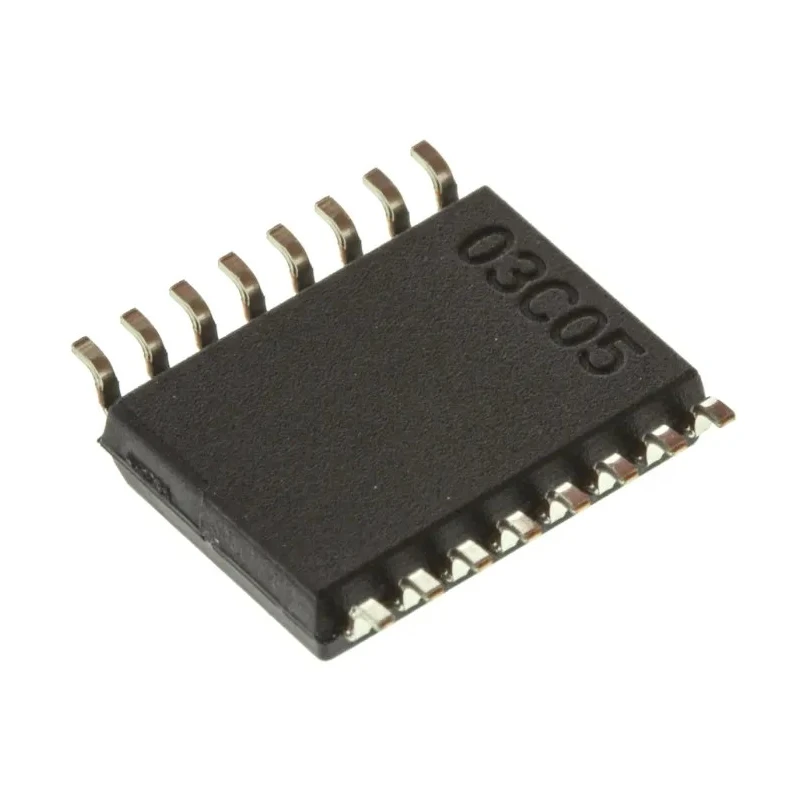

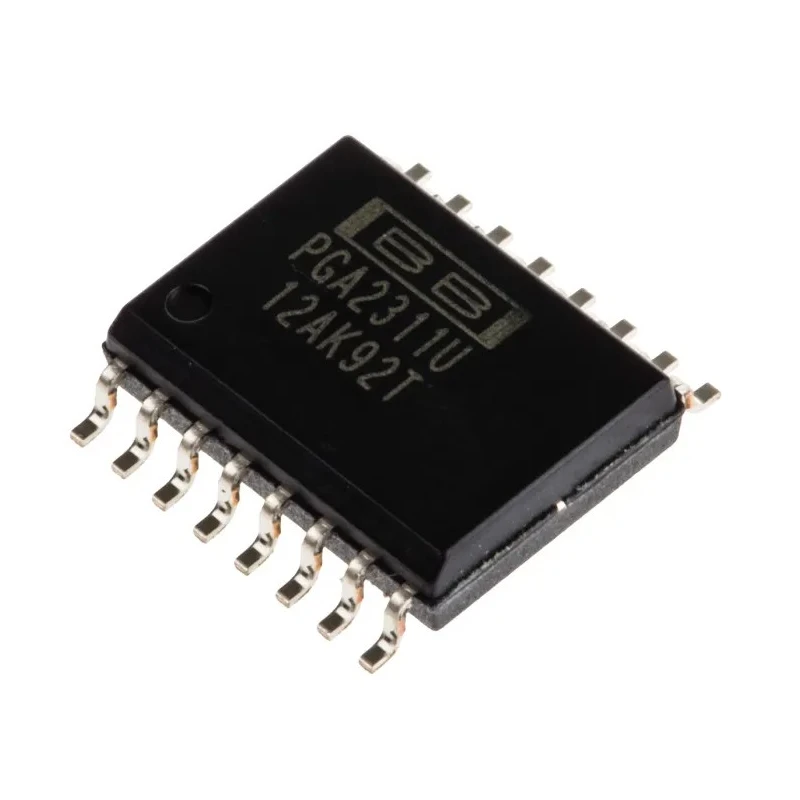

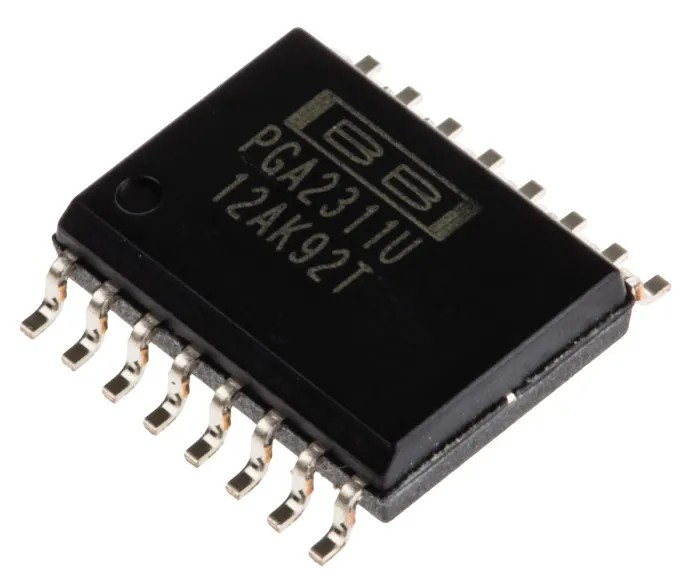

Texas Instruments 2-Channel Audio Volume Control, 16-Pin SOIC, Surface Mount PGA2311U
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2.35mm |
| Length | 10.28mm |
| Model | PGA2311U |
| Width | 7.52mm |
| Mount Type | Surface |
| Series | PGA2311 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 4.75V |
| Amplifier Type | Audio Volume Control |
| GBP - Gain Bandwidth Product | 10MHz |
| Stereo digital audio amplifier,CS3310KPBrand | Cirrus Logic |
Key Features
- The device features audio volume control capability for stereo audio systems.
- It utilizes a surface mount package enabling easy PCB integration.
- Operates reliably within a temperature range from -40°C to 85°C.
- Supports a supply voltage between 4.75V and 5.25V for stable operation.
- Offers a gain bandwidth product of 10MHz for high-fidelity audio processing.
- The compact package measures 10.28mm length, 7.52mm width, and 2.35mm height.
- Has 16 pins and is compliant with amplifier type standards for audio volume control.
Product Description
Texas Instruments PGA2311U is a 2-channel audio volume control IC housed in a 16-pin SOIC surface mount package, designed specifically for audio applications requiring precise volume attenuation. This digital potentiometer is ideal for stereo audio systems, offering excellent gain bandwidth of 10MHz, ensuring high quality audio performance. It operates efficiently within a wide temperature range from -40°C to 85°C, making it suitable for varying industrial and commercial environments.
The PGA2311 series, including the PGA2311U model, supports a supply voltage range of 4.75V to 5.25V, ensuring compatibility with standard audio amplifier circuits. Its compact size of 10.28mm by 7.52mm by 2.35mm facilitates integration into densely packed printed circuit boards, aiding in space-constrained electronic designs. With 16 pins and a surface mount form factor, this device is optimized for ease of assembly and reliable connections in automated manufacturing.
Common applications include audio equipment volume control such as stereo amplifiers, consumer audio devices, and professional sound systems. The PGA2311U's precision and durability also make it suitable for industrial audio processing tasks. This product does not conform to automotive standards but is intended for general audio amplifier use cases in laboratory, manufacturing, and commercial electronics.
The device supports stereo (two-channel) audio volume control functionality. Features a surface mount SOIC package design with 16 pins for efficient PCB integration. Temperature rated from -40°C to 85°C for reliable performance under diverse conditions.
Supply voltage range of 4.75V to 5.25V for stable and consistent audio attenuation. Gain bandwidth product of 10MHz enables high-quality audio signal processing. Compact physical dimensions assist in space-saving electronic applications.
Ideal for consumer, industrial, and laboratory audio amplifier applications. Explore additional Texas Instruments products and Audio Amplifier ICs in our extensive EnvMart electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently within a temperature range from -40°C to 85°C, making it suitable for various industrial and commercial environments.
The PGA2311U supports a supply voltage range of 4.75V to 5.25V for stable and consistent operation.
This unit has compact dimensions measuring 10.28mm in length, 7.52mm in width, and 2.35mm in height.
It supports stereo audio volume control functionality with 2 channels.
The PGA2311U offers a gain bandwidth product of 10MHz, ensuring high-quality audio performance.
This model is housed in a 16-pin SOIC surface mount package, designed for efficient PCB integration.
Common applications include audio equipment volume control such as stereo amplifiers, consumer audio devices, and professional sound systems.
The device features a pin count of 16, facilitating connections in automated manufacturing.
No, this product does not conform to automotive standards and is intended for general audio amplifier use cases.
The maximum operating temperature for the PGA2311U is 85°C.
The minimum supply voltage for this model is 4.75V.
The PGA2311U is manufactured in India.
