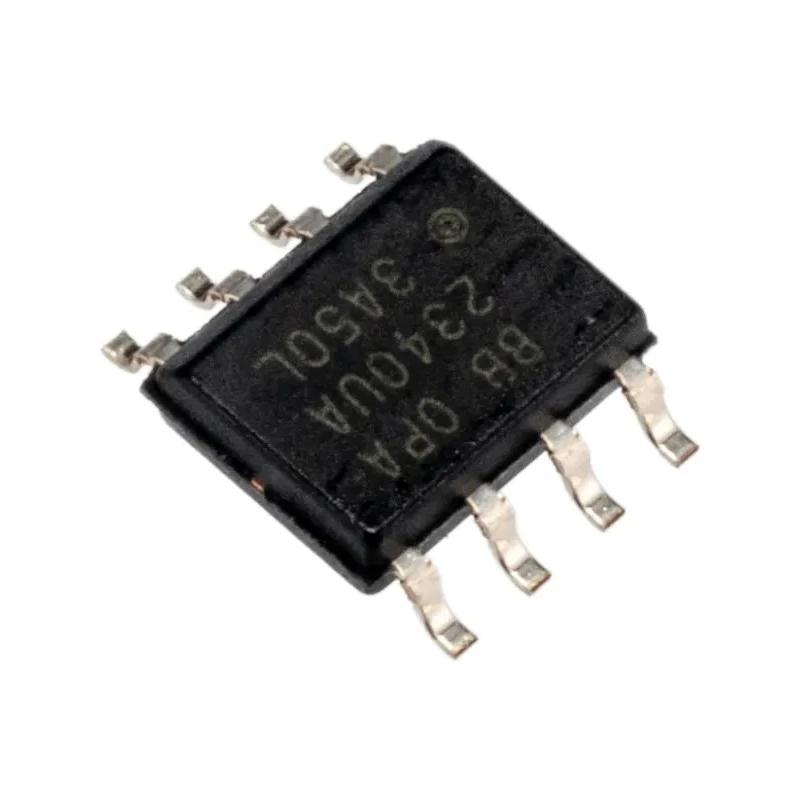

Texas Instruments Operational Amplifier 5.5 MHz 8-Pin SOIC Surface Mount OPA2340UA

Texas Instruments OPA2340UA is a robust dual operational amplifier designed for precise analog signal amplification in electronic circuits. Featuring a gain bandwidth product of 5.5 MHz and a fast slew rate of 6 V/μs, it delivers efficient performance in compact form factor. Housed in an 8-pin SOIC surface mount package, this component supports flexible board layouts and high density mounting.

Operating over a wide supply voltage range of 3 V to 5.5 V, the OPA2340UA is suitable for a variety of power configurations. Its low input bias current of ±10 pA and input offset voltage of ±500 µV make it ideal for precision measurement applications in laboratory instrumentation, industrial controls, and semiconductor systems.

The device withstands extreme ambient temperatures from -40°C to 85°C, ensuring reliability in harsh industrial and commercial environments. Although not rated for automotive standards, it is widely employed in general electronic design and development.

Offers dual channels in a compact SOIC package. Wide operating voltage and temperature range enhance versatility. Low input bias and offset currents ensure measurement accuracy. Slew rate and gain bandwidth optimize signal handling for dynamic circuits.

Compact size facilitates integration in space-constrained PCBs.

This operational amplifier is extensively used in electronics design for signal conditioning, amplification, and filtering tasks. It fits applications in semiconductor manufacturing, laboratory equipment, industrial instrumentation, and prototype development.
