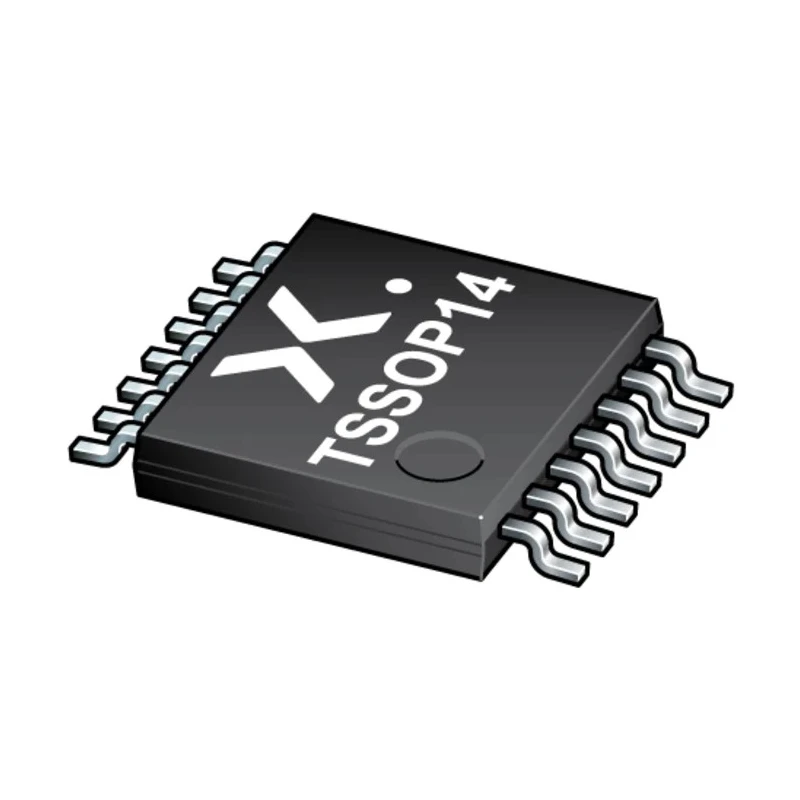

Nexperia Hex Inverting Schmitt Trigger Input Inverter 2 Elements 14-Pin SOT-402 74HC14PW-Q100,118
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 950μm |
| Length | 5.1mm |
| Model | 74HC14PW-Q100,118 |
| Width | 4.4mm |
| Mount Type | Surface |
| Output type | Inverting |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-402 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 7V |
| Logic Family | 74 |
| Logic Function | Inverter |
| Minimum Supply Voltage | -0.5V |
| Maximum High Level Output Current | -25mA |
| Maximum Propagation Delay Time @ CL | 190ns |
| Maximum Low Level Output Current | 5.2mA |
Key Features
- Incorporates 2 individual inverting Schmitt-trigger elements per chip.
- Compatible with TTL logic levels due to reduced input threshold levels.
- The Schmitt-trigger inputs enable conversion of slowly changing signals to sharp outputs.
- Includes clamp diodes to allow interfacing with voltages exceeding VCC.
- Wide operating temperature range from -40°C to 125°C ensures performance under harsh conditions.
- Low power dissipation enhances energy efficiency during operation.
- Compact SOT-402 package with 14 pins supports surface mounting.
- Maximum propagation delay time at load capacitance is 190ns.
Product Description
Nexperia 74HC14PW-Q100,118 is a hex inverting Schmitt trigger input inverter IC featuring 2 logic elements per chip. It uses Schmitt-trigger inputs to transform slowly varying signals into sharply defined jitter-free outputs, making it ideal for signal conditioning applications in industrial, automation, and electronic circuit designs.
The device operates over a supply voltage range of -0.5V to 7V and withstands temperatures from -40°C to 125°C, suitable for demanding environmental conditions. It includes clamp diodes allowing the use of current limiting resistors for interfacing with signals extending beyond the main power supply voltage levels.
Packaged in a compact 14-pin SOT-402 surface mount package, the IC supports integration into high-density circuit boards. Operating with low power dissipation, it meets JEDEC standard no. 7 ensuring consistent quality and reliability.
Applications include wave and pulse shaping circuits, astable and monostable multivibrators, and other logic signal processing tasks in electronic, industrial, and automation systems.
Incorporates 2 hex inverting Schmitt trigger logic elements per chip. Reduced input threshold levels for TTL logic compatibility. Schmitt-trigger inputs ensure jitter-free output signals. Clamp diodes allow input voltage interfacing above VCC.
Wide operating temperature range from -40°C to 125°C. Low power consumption suitable for efficient designs. Compact 14-pin SOT-402 surface mount package. Maximum propagation delay time of 190ns at load capacitance. Complies with JEDEC standard no. 7 for quality assurance.
Ideal for wave shaping, pulse shaping, and multivibrator circuits.
This Nexperia Schmitt Trigger Input Inverter is engineered for reliable performance in electronic and industrial applications requiring signal conditioning and logic inversion. Explore more semiconductor and IC products at EnvMart for your manufacturing and engineering needs.
Explore more products in our Inverter ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 7V.
It operates over a wide temperature range from -40°C to 125°C.
This inverter IC incorporates 2 individual inverting Schmitt-trigger elements per chip.
The maximum propagation delay time at load capacitance is 190ns.
It is packaged in a compact 14-pin SOT-402 surface mount package.
The input type for this model is Schmitt Trigger.
The output type of this inverter is inverting.
The height of the SOT-402 package is 950μm.
The width is 4.4mm and the length is 5.1mm.
The maximum high-level output current is -25mA.
It is suitable for wave and pulse shaping circuits, astable and monostable multivibrators, and other logic signal processing tasks.
This model complies with JEDEC standard no. 7 for quality assurance.
