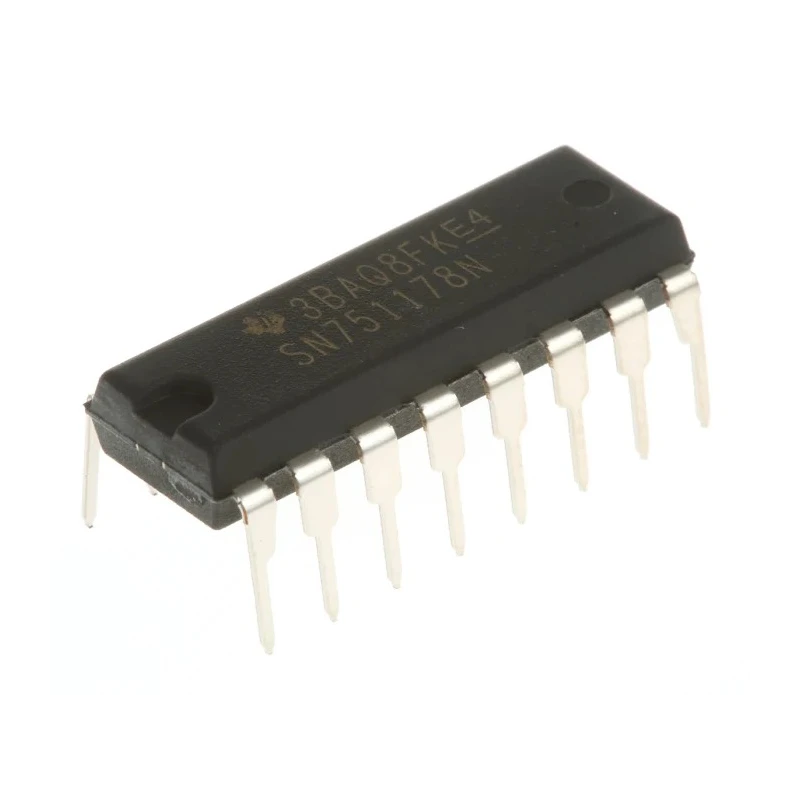

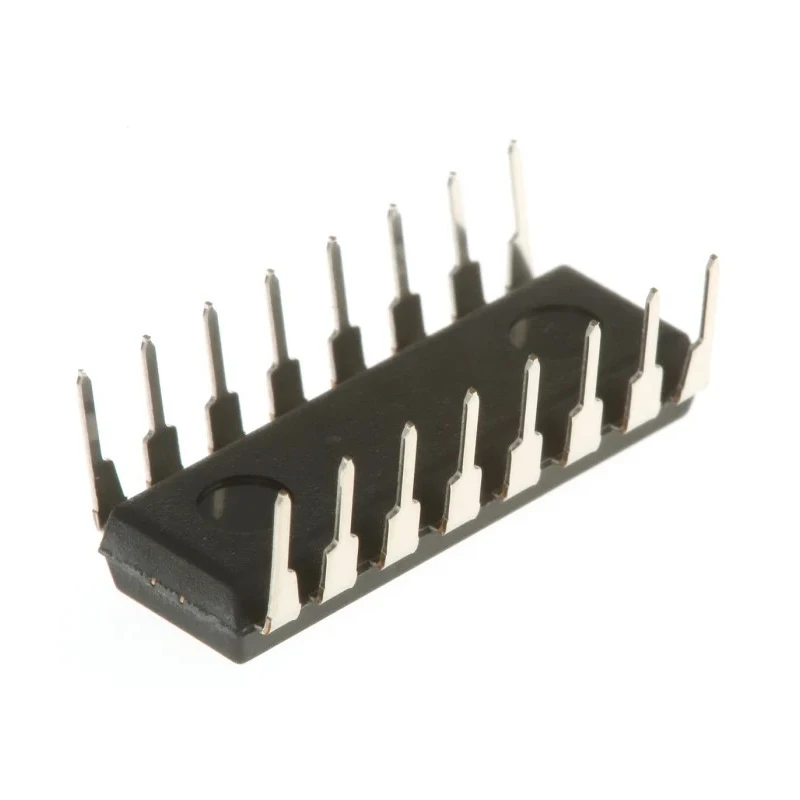

Texas Instruments 2-Channel Line Transceiver Differential Non-Inverting 16-Pin PDIP SN751178N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 19.69mm |
| Model | SN751178N |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Output type | Differential |
| Series | SN751178 |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -20°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -60mA |
| Maximum Propagation Delay Time @ CL | 35ns |
| Supply Current | 110mA |
| Maximum Low Level Output Current | 60mA |
Key Features
- Supports differential input and output for noise reduction.
- Non-inverting polarity ensures signal integrity.
- Operates with supply voltage between 4.75V and 5.25V.
- Maximum propagation delay time of 35ns for high-speed data transmission.
- Operates within temperature range of -20°C to 85°C.
- Designed with 2 channels to support dual data lines.
- Pin count of 16 suitable for through-hole mounting application.
- Supply current of 110mA under normal operating conditions.
Product Description
Texas Instruments SN751178N is a 2-channel line transceiver featuring differential and non-inverting logic designed for robust industrial communication systems. Packaged in a 16-pin PDIP through-hole mount layout, it supports minimum supply voltage of 4.75V and maximum of 5.25V, suitable for standard 5V industrial logic circuits.
This line transceiver is optimized for RS-485 applications, offering high-speed data rates with maximum propagation delay of 35 nanoseconds, ensuring fast and reliable signal transmission over long cable distances. Thermal operation ranges from -20°C to +85°C, making it suitable for demanding environments.
With differential input and output channels, the SN751178N minimizes susceptibility to electromagnetic interference, enhancing noise immunity in data communication lines. The device supplies up to 110mA current, providing sufficient drive capability for typical industrial loads.
The package dimensions are compact with length of 19.69mm, width of 6.6mm, and height of 5.08mm, facilitating integration into standard PCB layouts. Absence of automotive and special approvals highlights general purpose industrial use rather than automotive-specific certification.
This transceiver supports efficient data communication in industrial, manufacturing, HVAC, and instrumentation setups where reliable differential signaling and low propagation delay are essential.
Supports differential input and output for noise reduction. Non-inverting polarity ensures signal integrity. Operates with supply voltage between 4.75V and 5.25V. Maximum propagation delay time of 35ns for high-speed data transmission.
Operates within temperature range of -20°C to 85°C. Designed with 2 channels to support dual data lines. Pin count of 16 suitable for through-hole mounting application. Supply current of 110mA under normal operating conditions.
Package type: PDIP for easy PCB integration. Ideal for RS-485 line driver and receiver applications at data rates of 10 Mbit/s or more. Explore our extensive collection of semiconductor components and line transceivers at EnvMart for reliable industrial and laboratory electronic circuit solutions.
Explore more products in our Line Transceiver IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN751178N operates with a supply voltage between 4.75V and 5.25V.
It has a maximum propagation delay time of 35 nanoseconds, which supports high-speed data transmission.
This model operates within a temperature range of -20°C to 85°C.
The SN751178N is designed with 2 channels to support dual data lines.
It is packaged in a 16-pin PDIP format suitable for through-hole mounting applications.
The supply current under normal operating conditions is 110mA.
This model provides differential output, which helps in noise reduction.
The maximum high-level output current is -60mA.
The SN751178N has a pin count of 16.
It is optimized for RS-485 applications, making it suitable for industrial communication systems.
The dimensions are 19.69mm in length, 6.6mm in width, and 5.08mm in height.
The SN751178N belongs to the SN75 logic family.
