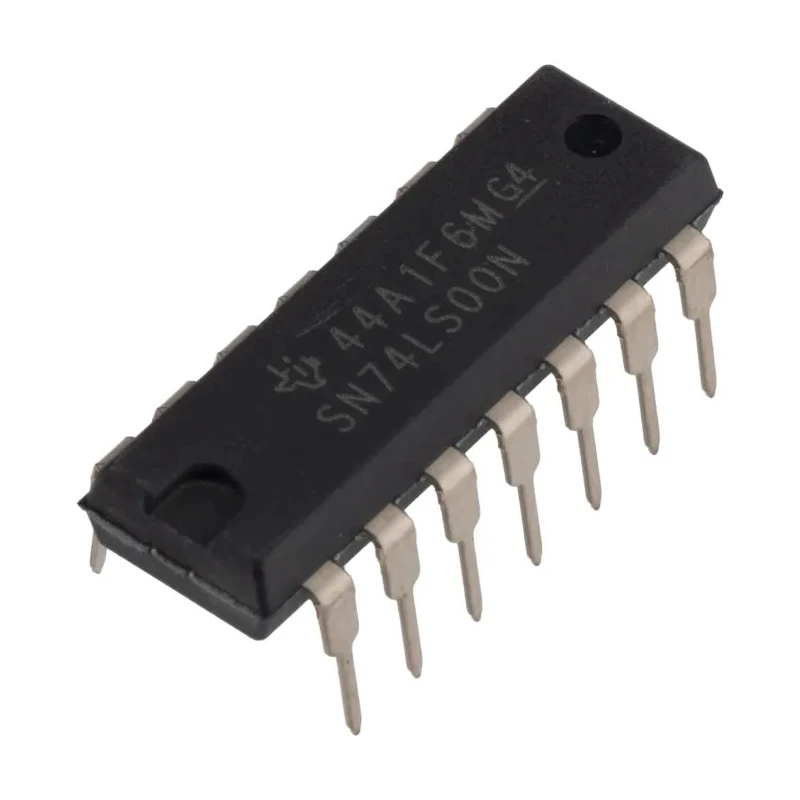

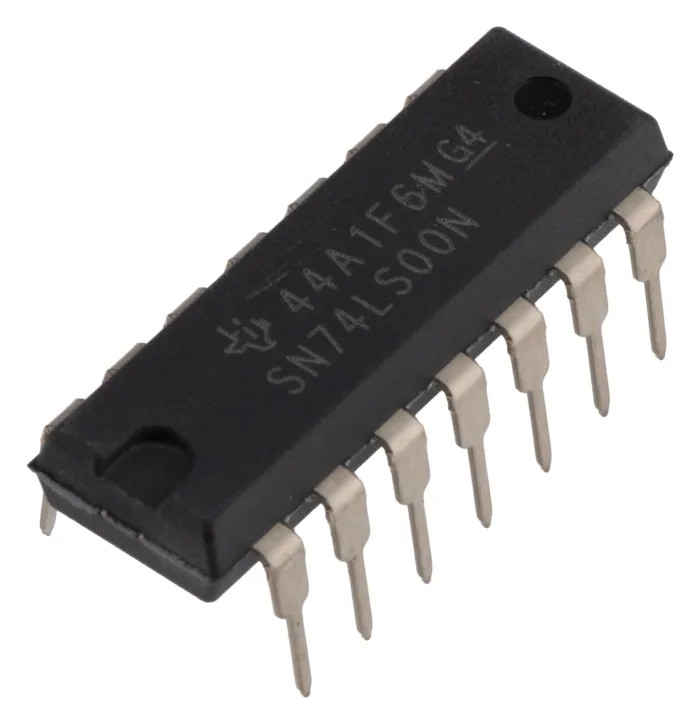

Texas Instruments 4-2 Input NAND Logic Gate IC 14-Pin PDIP SN74LS00N

Texas Instruments SN74LS00N is a 4 2-Input NAND Logic Gate integrated circuit enclosed in a 14-Pin PDIP package. It belongs to the 74LS family of low power Schottky logic ICs, designed to combine fast switching speeds with low power consumption, ideal for advanced electronic circuit designs.

Each IC incorporates 4 NAND gates, each having 2 inputs, providing fundamental logic functions essential for various digital circuits. The device operates efficiently within supply voltages from 4.75V to 5.25V, making it compatible with most digital systems.

The maximum propagation delay time at a capacitive load of 5ns offers rapid switching necessary for high-speed applications. Its through-hole mounting type with a PDIP package and 14 pins ensures easy integration into printed circuit boards and prototyping platforms.

With a temperature range of 0°C to 70°C, this logic gate IC maintains stability and performance across typical operating conditions. The IC supports CMOS input levels and delivers maximum output currents of -0.4mA for high-level and 8mA for low-level signals, providing reliable output performance for circuits.

Incorporates 4 NAND gates each with 2 inputs. Operates with low power consumption due to Schottky diode technology. Fast switching speed with 5ns propagation delay time. Compatible with CMOS input logic levels. Standard 14-pin PDIP through-hole package for ease of use.

Operating temperature range from 0°C to 70°C suitable for industrial and laboratory applications. Supply voltage range from 4.75V to 5.25V providing voltage stability. Reliable output current ratings for high and low logic levels.

Ideal for use in electronic designs, digital computing, and logic circuits. Widely accepted and used in electronics manufacturing and prototyping.

This product is well-suited for use in industrial automation, laboratory equipment development, digital electronics manufacturing, and educational electronic projects. It supports designing complex logic functionalities in a versatile and reliable manner.
