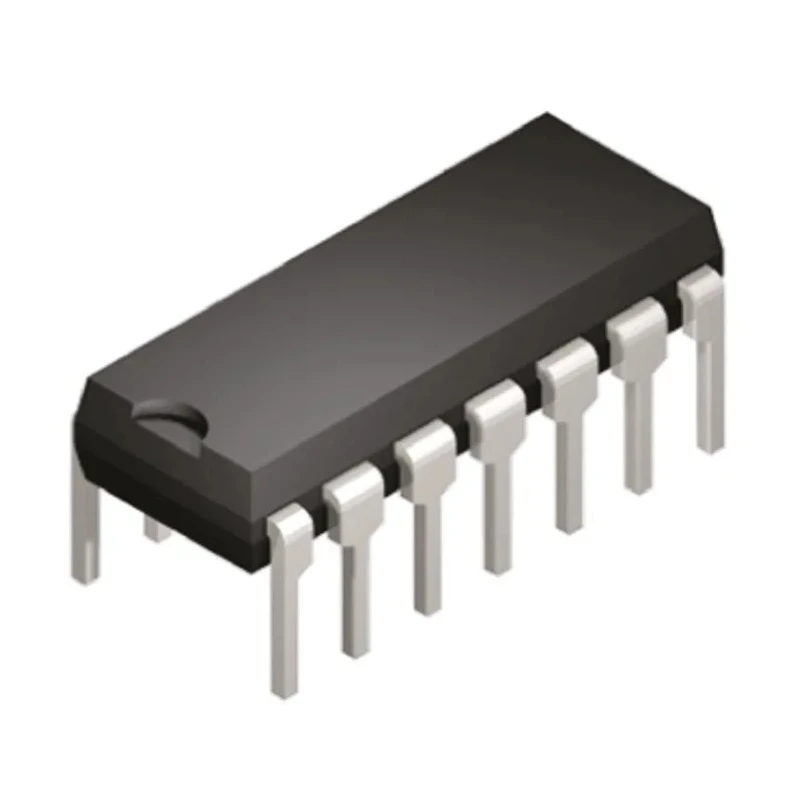

Texas Instruments 3 3-Input NAND Logic Gate CMOS, 14-Pin PDIP SN74HC10N

Texas Instruments SN74HC10N is a high-speed CMOS triple 3-input NAND Logic Gate integrated circuit housed in a 14-Pin Plastic Dual Inline Package (PDIP). Operating on a supply voltage range of 2 to 6 volts, it utilizes silicon gate CMOS technology to achieve high performance similar to LSTTL families but with the advantage of low power consumption.

This device features three individual NAND gates, each having three inputs, providing flexibility in logic circuit configurations with a maximum propagation delay of 25 nanoseconds at typical load conditions. The package type is through-hole, facilitating ease of manual or automated mounting on printed circuit boards.

With operating temperature ranges stretching from -40°C to 85°C, and output currents up to ±5.2 mA, the SN74HC10N is suited for industrial electronics, laboratory instrumentation, and embedded system applications where reliable logic gating is essential.

The gate inputs are CMOS compatible while outputs are designed with push-pull type to ensure stable switching performance. Its compact PDIP form factor measures 19.3 mm in length and 4.57 mm in height, optimized for space-efficient circuit design.

Operates at 2 to 6 V supply voltage ensuring compatibility with various power systems. Contains three 3-input NAND gates supporting complex logic operations. High-speed CMOS silicon gate technology for efficient low power logic.

Through hole PDIP 14-pin package allows sturdy mounting and easy soldering. Wide operating temperature range of -40°C to 85°C enables use in diverse environments. Push-pull output type for reliable and fast switching. Typical propagation delay of 25 nanoseconds supports rapid logic transitions.

The Texas Instruments SN74HC10N triple 3-input NAND gate IC is a critical component in logic circuits used in communication devices, data processing hardware, and control systems within industrial, laboratory, and commercial electronics sectors. For further logic IC selections, explore the comprehensive catalog at EnvMart.
