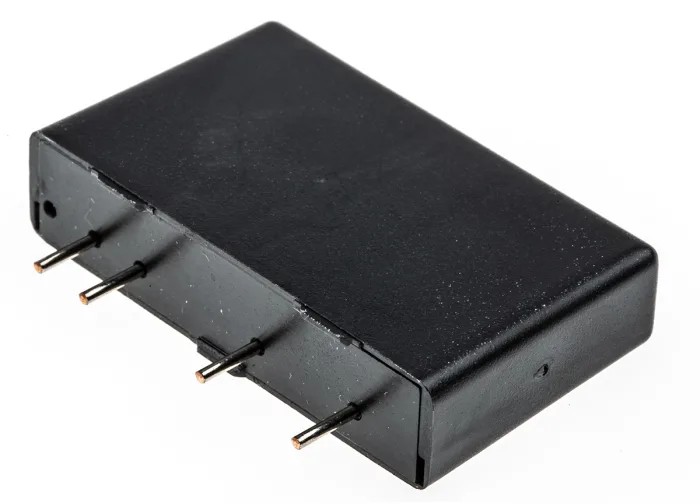

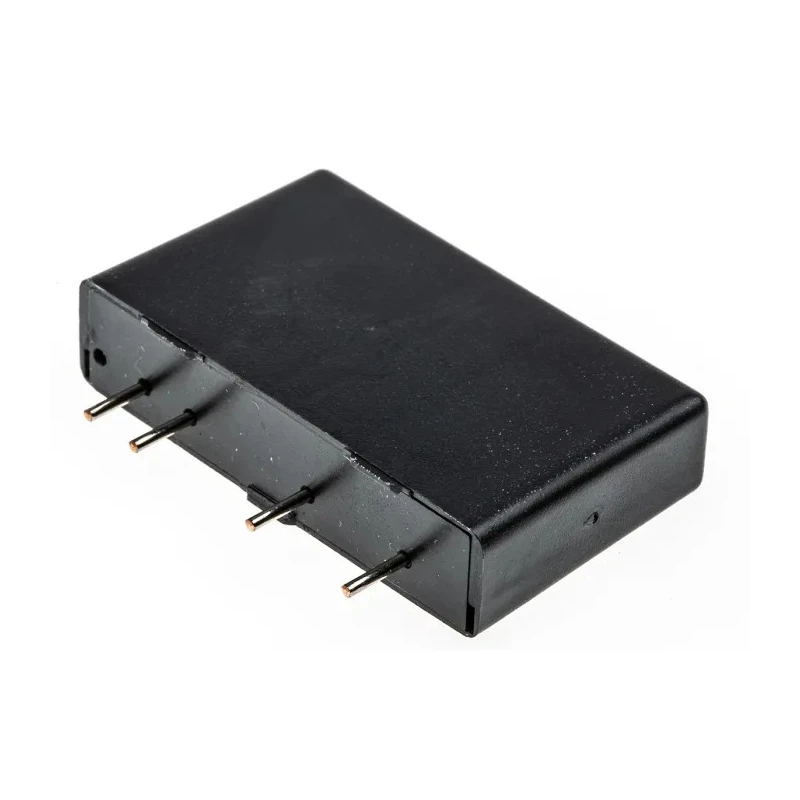

Crydom Solid State Relay DRA1 Series, 4A Load, DIN Rail Mount, 280V DC Load, 32V DC Control
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 25.4mm |
| Length | 43.1mm |
| Model | DRA1 |
| Mount Type | DIN Rail |
| Output type | Triac |
| Series | DRA1 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Switching Function | Zero Cross |
| Maximum Load Current | 4A |
| Standards/Approvals | VDE:5900 UG, RoHS, CSA:LR 81689, UL:E116950 |
| Maximum Load Voltage | 280V dc |
| Minimum Load Voltage | 24V dc |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 5mArms |
| On State Resistance | 1000000000Ω |
| Crouzet Solid State RelayBrand | Crouzet |
| VDE | 5900 UG, RoHS, CSA:LR 81689, UL:E116950 |
| Standards/Approvals VDE | 5900 UG, RoHS, CSA:LR 81689, UL:E116950 |
Key Features
- Supports a maximum load voltage of 280V DC for robust operation.
- Operates with a control voltage range from 3V to 32V DC.
- Zero Cross switching function ensures minimal electrical noise during operation.

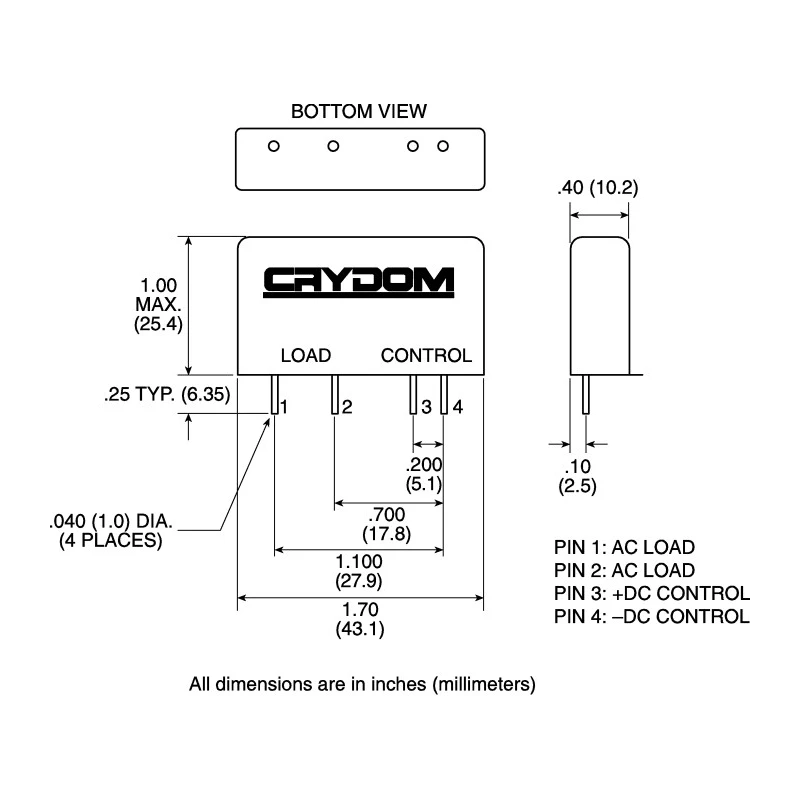

- Compact dimensions of 43.1mm (L) x 10.2mm (W) x 25.4mm (H) suitable for space-constrained installations.
- High dielectric strength of 4000Vrms provides strong insulation protection.
- Wide operating temperature range from -40°C to 80°C for demanding environments.
- PCB terminal type with epoxy housing for impact and heat resistance.
- Fast switching times with maximum turn-on and turn-off time of 0.1ms.
Product Description
Crydom MP240D4 Solid State Relay from the DRA1 Series is engineered for reliable switching of AC loads up to 4A with a maximum load voltage rating of 280V DC. This DIN Rail mountable relay provides robust performance for industrial, automation, electrical, and electrical control panel applications.
The unit features a control voltage range between 3V and 32V DC and utilizes a Zero Cross switching function, which ensures that the relay switches at zero voltage crossing for reduced electrical noise and enhanced longevity.
Its compact size of 43.1mm in length, 10.2mm in width, and 25.4mm in height allows integration into setups with limited space. The epoxy housing provides excellent resistance to impact and heat, making it suitable for harsh operating environments.
This relay offers a high dielectric strength of 4000Vrms, ensuring outstanding insulation and protection against electric shocks. The fast turn-on and turn-off switching times, not exceeding 0.1 milliseconds, guarantee quick response to control signals.
Crydom MP240D4 supports a broad operating temperature range from -40°C to +80°C, making it ideal for demanding industrial and commercial environments. Its transient overvoltage rating of 600V protects the device against powerful surges.
Maximum load current of 4A with 280V DC load capacity. DIN Rail mounting for easy installation in control panels and electrical enclosures. Control voltage from 3V to 32V DC with Zero Cross switching. Epoxy housing for mechanical and thermal durability.
Approvals include UL Recognised, VDE, CSA, and RoHS compliance ensuring safety and reliability.
This solid state relay is widely used in automation systems, industrial equipment control, HVAC systems, and other electrical control applications demanding reliable load switching with minimal electromagnetic interference.
Explore the category for a wide range of Crydom products and other industrial Solid State Relays available at EnvMart for your automation and electrical control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load voltage for this solid state relay is 280V DC.
The control voltage range for this model is between 3V and 32V DC.
This relay supports a maximum load current of 4A.
It is designed for DIN Rail mounting, allowing for easy installation in control panels and electrical enclosures.
The operating temperature range for this unit is from -40°C to +80°C.
The dimensions of this relay are 43.1mm in length, 10.2mm in width, and 25.4mm in height.
This model utilizes a Zero Cross switching function, which minimizes electrical noise during operation.
It features PCB terminals for connection.
The dielectric strength of this relay is 4000Vrms, providing strong insulation protection.
This relay is UL Recognised, VDE, CSA certified, and RoHS compliant.
The maximum turn-on and turn-off time for this relay is 0.1 milliseconds.
This solid state relay is suitable for automation systems, industrial equipment control, and HVAC systems among other electrical control applications.
