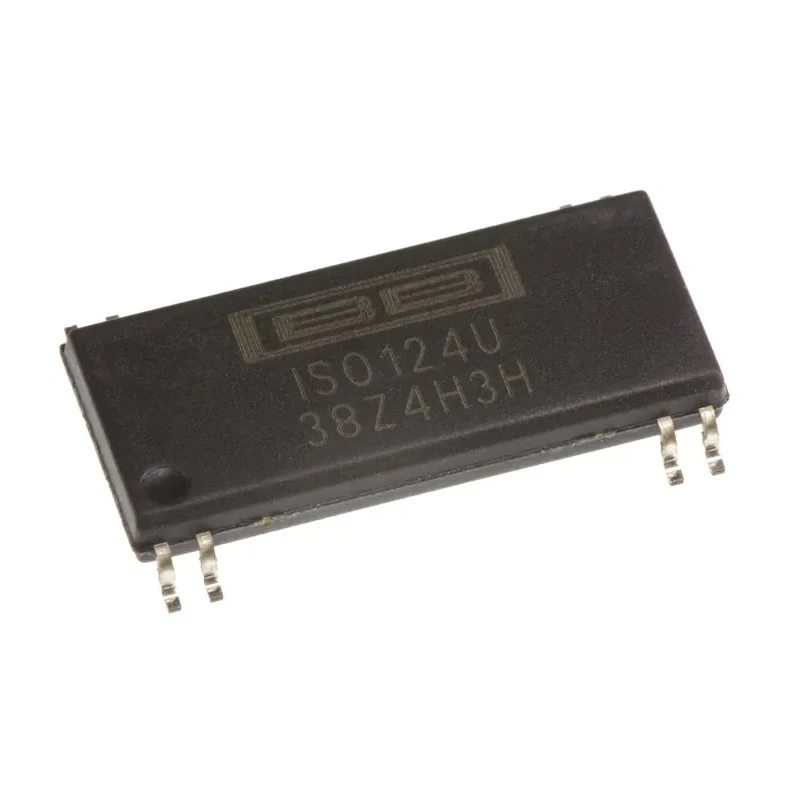

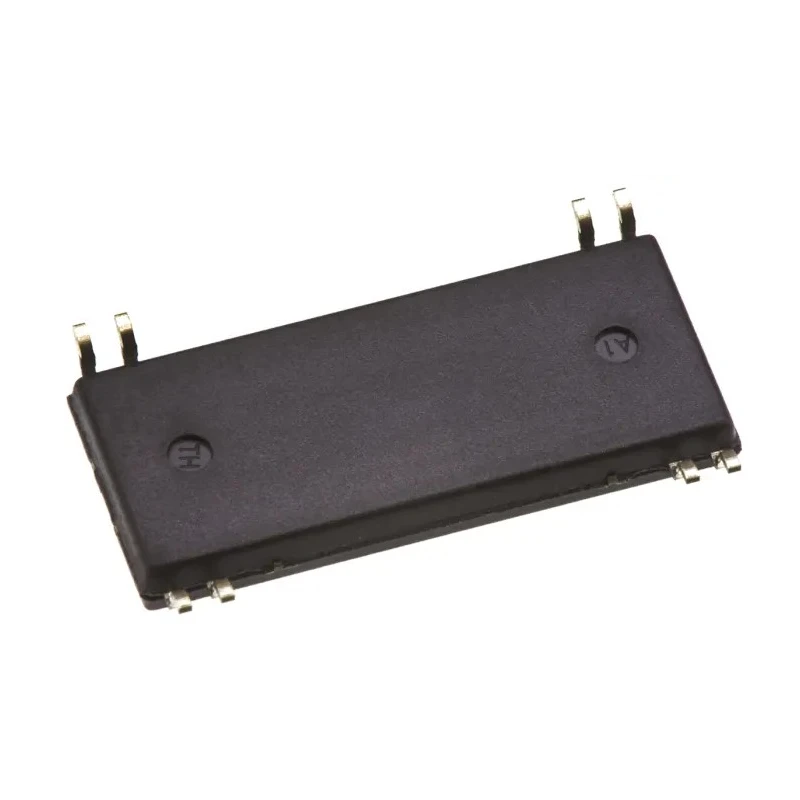

Texas Instruments Isolation Amplifier, 8-Pin SOP Package, 18V Supply ISO124U
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2.3mm |
| Length | 17.9mm |
| Model | ISO124U |
| Mount Type | Surface |
| Series | ISO124 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Isolation Voltage | 1500V |
| Minimum Supply Voltage | -18V |
| ISO124UE4 Texas Instruments, Isolation Amplifier, 8-Pin SOPBrand | Texas Instruments |
Key Features
- Supports single channel isolation to prevent ground loops.
- Operates over a wide temperature range from -25°C to 85°C.
- Offers an isolation voltage of up to 1500V for enhanced signal integrity.
- Compact SOP package with a pin count of 8 suitable for surface mount PCBs.
- Compliant with RoHS standards ensuring environmental safety.
- High-voltage breakdown capability suitable for industrial and laboratory applications.
- Provides precise analogue isolator functionality for robust electronic designs.
- Typical height of 2.3mm and length of 17.9mm facilitates compact PCB layouts.
Product Description
The Texas Instruments ISO124U Isolation Amplifier is a high-precision analogue isolator designed in an 8-Pin SOP surface mount package. It supports a minimum supply voltage of -18V and a maximum of 18V, making it ideal for a variety of industrial and electronic applications requiring reliable signal isolation.
This device features a single channel isolation with an isolation voltage rating of 1500V, providing protection against electrical noise and ground loop interference in sensitive analog circuits.
It operates efficiently across a broad temperature range from -25°C to 85°C, making it suitable for demanding environments such as manufacturing equipment, laboratory instruments, and control systems.
The compact SOP package with 8 pins, measuring 2.3mm in height and 17.9mm in length, allows for easy integration onto surface mount PCBs, benefiting space-constrained designs.
Compliant with RoHS environmental standards, it ensures safe usage while meeting modern regulatory requirements. This isolation amplifier is a reliable component for enhancing signal integrity in electronic circuits used in industrial, laboratory, and commercial applications.
Supports single channel isolation preventing ground loop errors. Wide operating temperature range from -25°C to 85°C. Isolation voltage up to 1500V for high-voltage breakdown protection. Compact 8-pin SOP surface mount package for efficient PCB design.
RoHS compliant environment-friendly construction. High-precision analogue isolation ideal for sensitive measurement systems. Supply voltage range from -18V to 18V accommodates various power configurations. Compact dimensions: 2.3mm height and 17.9mm length.
This Texas Instruments Isolation Amplifier model ISO124U is perfect for applications requiring electrical isolation and signal integrity in industrial instrumentation, control systems, laboratory equipment, and other electronic equipment. Browse the wide range of Isolation Amplifiers available at EnvMart for more solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ISO124U isolation amplifier has an isolation voltage of up to 1500V, which helps protect against electrical noise and ground loop interference.
This model operates efficiently across a temperature range from -25°C to 85°C, making it suitable for various demanding environments.
The supply voltage for the ISO124U ranges from -18V to 18V, accommodating various power configurations for different applications.
The ISO124U supports a single channel isolation, which is designed to prevent ground loop errors in sensitive analog circuits.
The dimensions of the ISO124U are 2.3mm in height and 17.9mm in length, suitable for compact PCB layouts.
This model comes in an 8-pin SOP (Small Outline Package) which is designed for surface mount applications.
Yes, the ISO124U is compliant with RoHS standards, ensuring it meets modern environmental safety requirements.
The ISO124U is suitable for applications in industrial instrumentation, control systems, laboratory equipment, and other electronic equipment requiring signal integrity.
The ISO124U is designed for surface mounting, making it easy to integrate into compact PCB designs.
The ISO124U belongs to the ISO124 series of isolation amplifiers, known for their high-precision analogue isolation functionality.
The ISO124U isolation amplifier is manufactured in India.
The ISO124U has a high-voltage breakdown capability suitable for industrial and laboratory applications, enhancing signal integrity in sensitive circuits.
