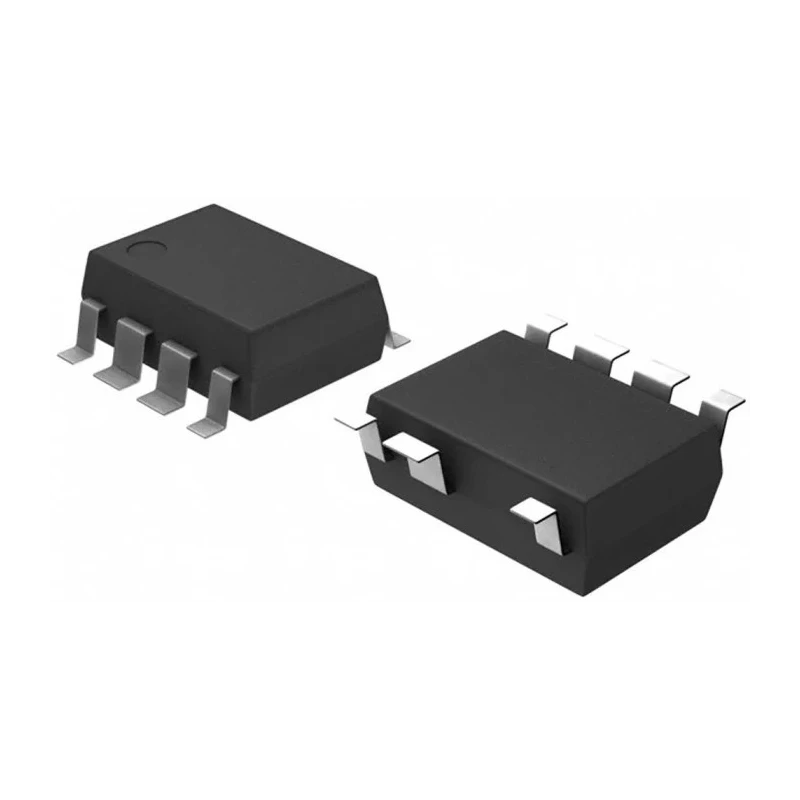

onsemi Integrated Pulse Width Modulator Power Switch IC Surface Mount 8-Pin LSOP FSL306LRLX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.6mm |
| Length | 9.4mm |
| Model | FSL306LRLX |
| Width | 6.6mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Power Rating | 3W |
| Maximum Operating Temperature | 125°C |
| Package Type | LSOP |
| Minimum Operating Temperature | -40°C |
| Operating Current | 0.45A |
| Number of outputs | 1 |
| Standards/Approvals | JEDEC JESD22-A114, JESD22-C101 |
| Pin Count | 8 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 0.3V |
| Switch On Resistance RdsOn | 18Ω |
Key Features
- Switch On Resistance (RdsOn) of 18Ω ensures effective power switching.
- Single output design suitable for controlled power delivery.
- Power rating of 3 watts supports moderate load applications.
- Operates over a wide supply voltage range from 0.3V to 26V.
- Operating current of 0.45A with robust thermal tolerance from -40°C to 125°C.
- Complies with JEDEC JESD22-A114 and JESD22-C101 standards for reliability.
- Surface mount type package LSOP with 8 pins allows for efficient PCB assembly.
Product Description
The onsemi FSL306LRLX is an integrated pulse width modulator (PWM) power switch IC housed in a compact 8-pin LSOP surface mount package. Designed for power management circuits, it is ideal for switch mode power supply (SMPS) applications requiring efficient and reliable energy control.
This PWM power switch provides a switch on resistance of 18 ohms, enabling low conduction losses. It supports a power rating of 3 watts and operates from a minimum supply voltage of 0.3 volts up to a maximum of 26 volts, accommodating diverse power source conditions.
The IC features a single output channel and a maximum operating current of 0.45 amperes. Robust thermal performance allows operation in extreme environments with a temperature range from -40°C to 125°C, making it suitable for industrial and commercial electronics applications.
Its compact footprint with dimensions of 9.4mm length, 6.6mm width, and 3.6mm height allows for integration into space-sensitive electronic assemblies. The device complies with JEDEC JESD22-A114 and JESD22-C101 reliability standards ensuring durability under stress conditions.
Typical applications include flyback and forward PWM controllers, offline and isolated DC-DC converters, where integrated protections such as soft-start, over-voltage, overload, short circuit, and undervoltage lockout support safe operation and energy savings.
With its proven performance and robust features, the onsemi FSL306LRLX power switch IC is suitable for industrial, laboratory, HVAC, manufacturing, and commercial electronic systems.
Switch On Resistance (RdsOn) of 18Ω ensures effective power switching. Single output design suitable for controlled power delivery. Power rating of 3 watts supports moderate load applications. Operates over a wide supply voltage range from 0.3V to 26V.
Operating current of 0.45A with robust thermal tolerance from -40°C to 125°C. Compact dimensions: length 9.4mm, width 6.6mm, height 3.6mm for space-constrained designs. Complies with JEDEC JESD22-A114 and JESD22-C101 standards for reliability.
Surface mount type package LSOP with 8 pins allows for efficient PCB assembly. Explore more onsemi Power Switch ICs and related power management components at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FSL306LRLX has a power rating of 3 watts, making it suitable for moderate load applications.
It operates over a wide supply voltage range from 0.3 volts to 26 volts.
The maximum operating temperature is 125°C, allowing it to function in high-temperature environments.
The switch on resistance (RdsOn) is 18 ohms, which helps in reducing conduction losses during operation.
The dimensions are 9.4mm in length, 6.6mm in width, and 3.6mm in height, suitable for space-constrained designs.
This model features a single output channel, designed for controlled power delivery.
The maximum operating current is 0.45 amperes, which supports its functionality in various applications.
It comes in a surface mount type package known as LSOP with 8 pins, facilitating efficient PCB assembly.
It complies with JEDEC JESD22-A114 and JESD22-C101 standards for reliability, ensuring durability under stress conditions.
The minimum operating temperature is -40°C, allowing it to function in low-temperature environments.
The country of origin for this product is India.
