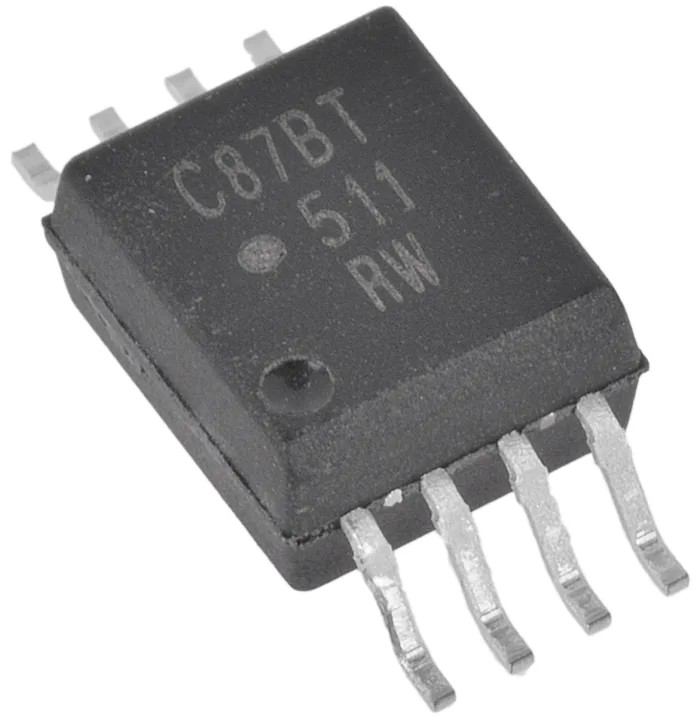

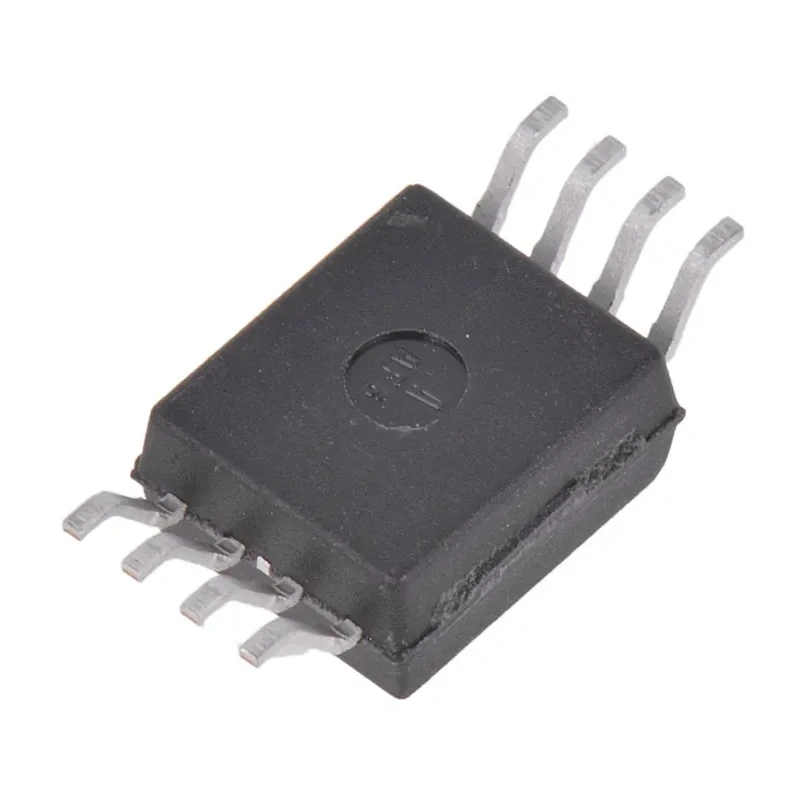

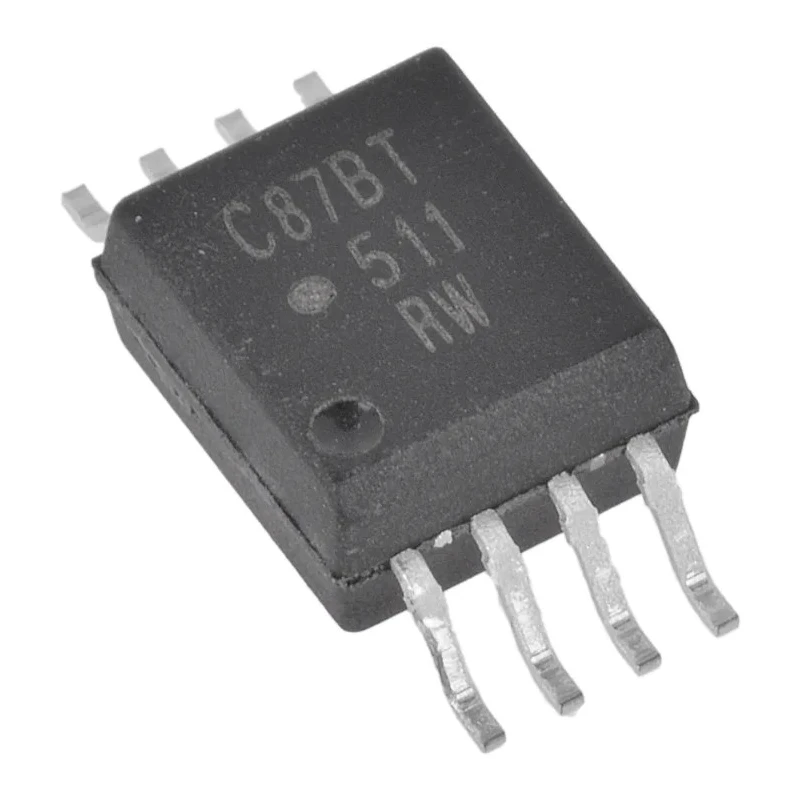

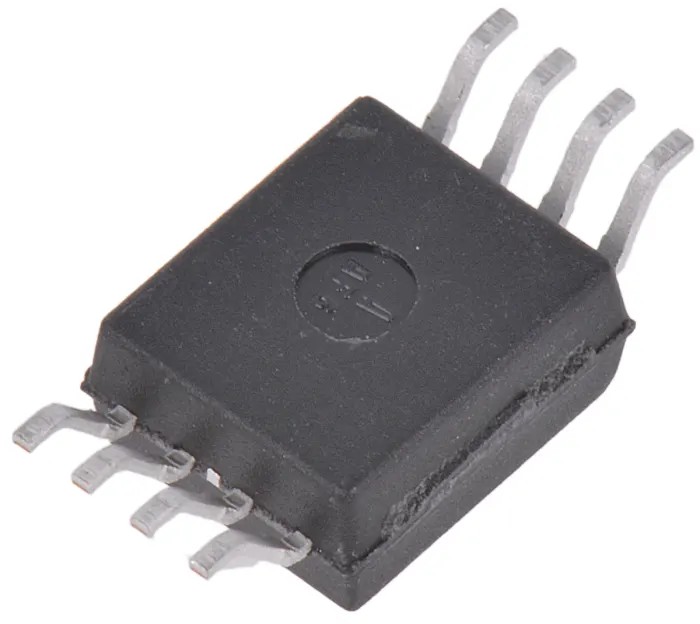

Broadcom Precision Optically Isolated Voltage Sensor Isolation Amplifier 8-Pin SOIC 3-5.5V ACPL-C87BT-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.18mm |
| Length | 5.85mm |
| Model | ACPL-C87BT-000E |
| Mount Type | Surface |
| Series | ACPL-C870 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Vos - Input Offset Voltage | 9.9 mV |
| Isolation Type | Precision Optically Isolated Voltage Sensor |
Key Features
- Provides high common mode rejection for accurate voltage measurement.
- Designed for surface mounting with SOIC package type.
- Operates reliably over a wide temperature range from -40°C to 125°C.
- Ideal for industrial isolation and signal conditioning applications.
- Utilizes sigma-delta modulator technology for precise current and voltage sensing.
- Single channel amplifier suitable for power inverters and motor drive sensing.
- Compact dimensions of 5.85mm length and 3.18mm height for space-constrained designs.
- Offers safety insulation complying with industrial isolation requirements.
Product Description
Broadcom ACPL-C87BT-000E isolation amplifier is a precision optically isolated voltage sensor packaged in an 8-pin SOIC surface mount device designed to operate with supply voltages from 3V up to 5.5V. This device features a single isolation channel leveraging sigma-delta modulator technology to deliver accurate and reliable voltage sensing with high common mode rejection, making it ideal for industrial environments requiring robust isolation and signal integrity.
Operating over a broad temperature range of -40°C to 125°C, the ACPL-C87BT-000E ensures stable performance under hostile conditions common in industrial and power electronics applications. Its compact 5.85mm by 3.18mm form factor enables easy integration on densely packed printed circuit boards.
This isolation amplifier serves as a superior alternative to Hall Effect sensors for voltage and current sensing in motor drives, power inverters, and general isolation circuits where precision and safety insulation are paramount. The device incorporates built-in safety insulation conforming to modern industrial standards, supporting the protection of both user and equipment.
Key applications include use in industrial automation, power conversion systems, manufacturing processes, and embedded systems requiring galvanic isolation and high fidelity signal transmission.
High precision optically isolated voltage sensing for accurate measurements. Compact surface mount SOIC package suits automated PCB assembly. Wide industrial temperature range guarantees operational reliability. Designed for isolation of high voltage signals in power electronics.
Ensures enhanced common mode rejection to reduce noise interference. Replaces Hall Effect solutions for improved stability and accuracy. Compact size reduces board space requirements. Supports industrial applications including motor drives and power inverters.
Provides galvanic isolation enhancing safety in electronic systems. Explore more Isolation Amplifier solutions and related semiconductor components at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with supply voltages ranging from 3V to 5.5V.
It functions reliably over a wide temperature range of -40°C to 125°C.
This unit features a single isolation channel.
It has compact dimensions of 5.85mm in length and 3.18mm in height.
It is packaged in an 8-pin SOIC surface mount type, suitable for automated PCB assembly.
The input offset voltage (Vos) is 9.9 mV.
It provides precision optical isolation for high voltage signals in power electronics.
The maximum operating temperature is 125°C.
The minimum operating temperature is -40°C.
It utilizes sigma-delta modulator technology for precise current and voltage sensing.
The country of origin for this model is India.
