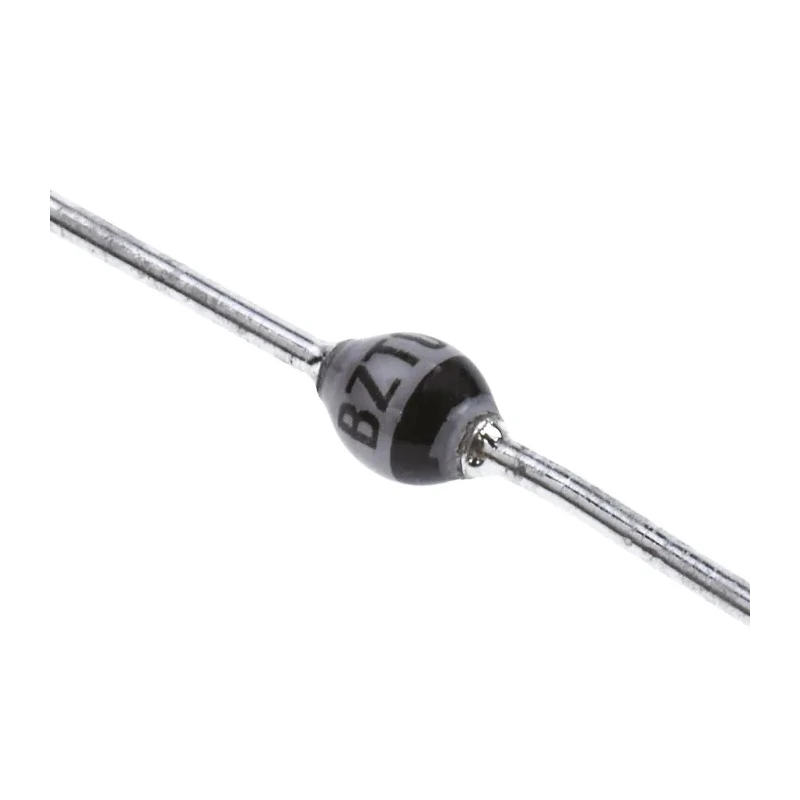

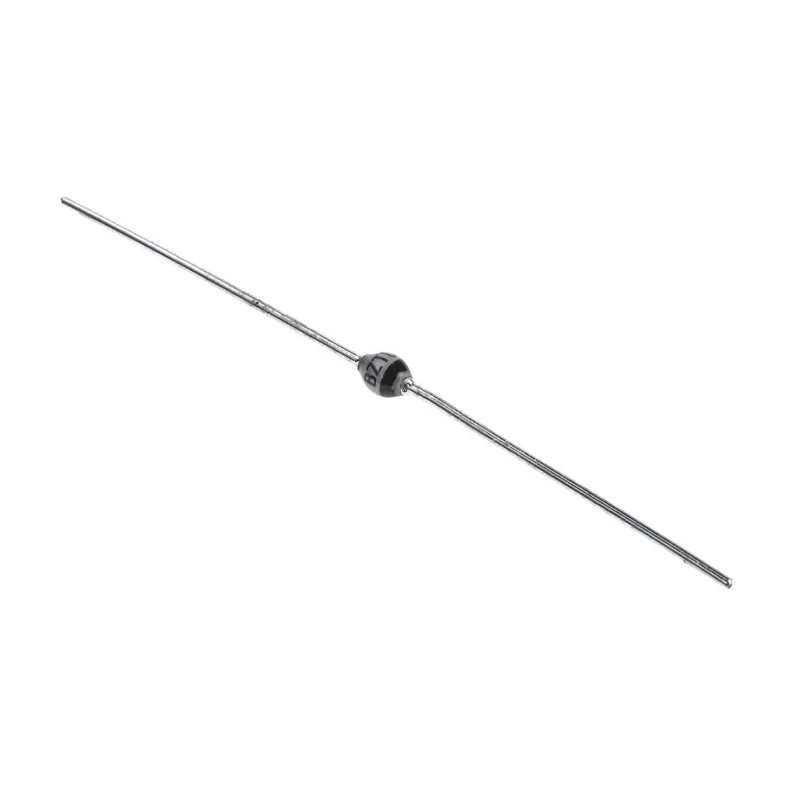

Vishay 6.2 V 1.3 W Voltage Regulator Zener Diode Through Hole 2-Pin SOD-57 BZT03C6V2-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 3.6mm |
| Length | 4mm |
| Model | BZT03C6V2-TR |
| Mount Type | Through Hole |
| Series | BZT03 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-57 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1.3W |
| Diode Configuration | Single |
| Test Current It | 100mA |
| Maximum Reverse Leakage Current | 1.5mA |
| Nominal Zener Voltage Vz | 6.2V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2Ω |
| onsemi 1, 6.2 V Zener Diode, Single 5 W 5 % Through Hole 2-Pin DO-15Brand | onsemi |
| ER - Diode, Zener, N153, 1N53Brand | ON Semiconductor |
Key Features
- Nominal Zener voltage of 6.2 volts with 6% tolerance for voltage regulation.
- Maximum power dissipation rated at 1.3 watts for reliable operation.
- Through hole mount type in compact SOD-57 package with two pins.
- Test current of 100 mA ensures stable Zener voltage performance.
- High maximum operating temperature of 175°C suitable for harsh environments.
- Low maximum reverse leakage current of 1.5 mA for efficiency.
- Wide operating temperature range from -65°C to 175°C for industrial applications.
- Maximum Zener impedance of 2 ohms to maintain voltage regulation under load.
Product Description
Vishay BZT03C6V2-TR is a high reliability voltage regulator Zener diode designed to provide stable voltage regulation in electronic circuits. It features a nominal Zener voltage of 6.2 V with a ±6% tolerance, making it ideal for voltage stabilization applications requiring precise control. Packaged in a through hole SOD-57 form factor with 2 pins, it is compatible with traditional PCB mounting techniques.
This diode supports a maximum power dissipation of 1.3 W and operates reliably from -65°C up to 175°C, suited for demanding industrial, electronic power supply, and control systems environments. The maximum reverse leakage current is limited to 1.5 mA, which improves overall circuit efficiency by minimizing waste.
The diode’s test current is 100 mA, and it maintains a maximum Zener impedance of 2 Ω, supporting steady voltage under varying load conditions. With a compact size - 3.6 mm height and 4 mm length - the component is space-efficient while delivering robust electrical performance.
Zener Diodes like the BZT03C6V2-TR are widely used in voltage reference circuits, surge protectors, and as voltage regulators within power supplies and industrial electronic assemblies. Its broad temperature rating and standardized SOD-57 package make it suitable for applications in industrial automation, instrumentation, consumer electronics, and automotive electronics where voltage precision and thermal stability are required.
Nominal Zener voltage of 6.2 V with ±6% tolerance ensures accurate voltage regulation. Through hole SOD-57 package with 2 pins for reliable mounting and connectivity. Maximum power dissipation of 1.3 W allows for effective voltage clamping and regulation.
Operational temperature range from -65°C to +175°C for extended durability. Low maximum reverse leakage current minimizes power loss and improves efficiency. Compact dimensions of 3.6 mm height and 4 mm length aid in space-constrained designs.
Used in industrial, manufacturing, laboratory, and electronic power supply circuits. Provides protection and voltage reference in electronic systems operating under demanding conditions. Widely applicable in automotive and commercial electronic assemblies.
Explore more semiconductor and Zener diode products to enhance your electronic circuit reliability and design effectiveness on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 6.2 V with a tolerance of ±6%.
It has a maximum power dissipation rated at 1.3 W, allowing for effective voltage regulation.
The diode operates within a temperature range of -65°C to 175°C, making it suitable for harsh environments.
The maximum reverse leakage current is limited to 1.5 mA, which enhances circuit efficiency.
This diode is packaged in a through hole SOD-57 form factor with 2 pins.
The maximum Zener impedance is 2 ohms, which helps maintain voltage regulation under load conditions.
The test current for this model is 100 mA, ensuring stable Zener voltage performance.
The dimensions of this diode are 3.6 mm in height and 4 mm in length.
This diode is widely used in voltage reference circuits, surge protectors, and as voltage regulators in power supplies and industrial electronic assemblies.
The diode configuration is single, designed for voltage regulation applications.
The diode is manufactured in India.
This Zener diode belongs to the BZT03 series.
