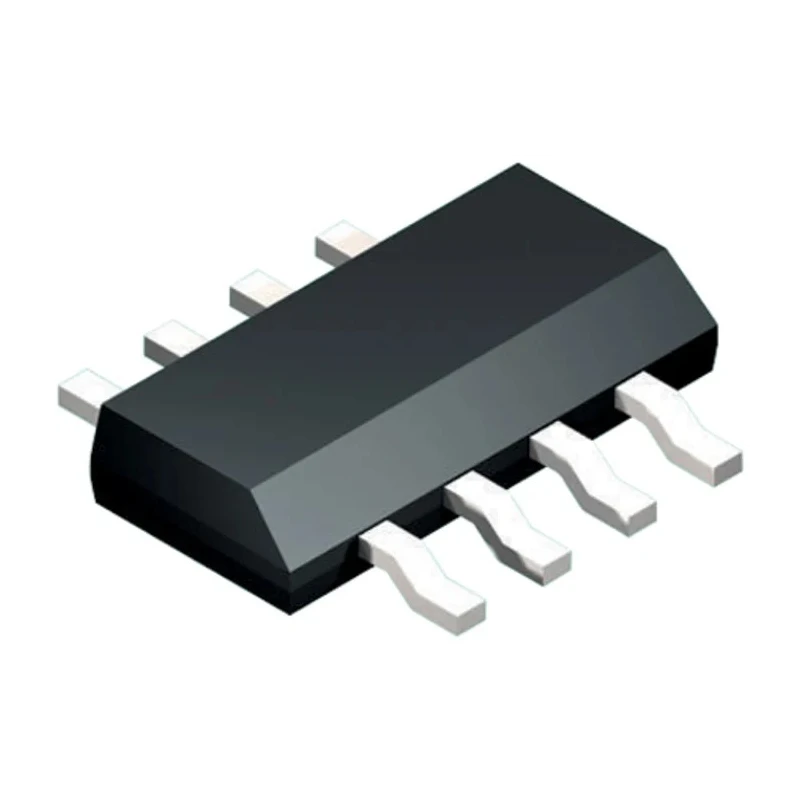

Texas Instruments CMOS Dual Bus Buffer, Surface Mount, 8-Pin, Operating Voltage 1.65 to 5.5 V SN74LVC2G126DCTR

Texas Instruments SN74LVC2G126DCTR is a CMOS dual bus buffer featuring an 8-pin surface mount package designed for reliable digital buffering functions. This device operates within a flexible supply voltage range from 1.65 to 5.5 V, providing compatibility with various low-voltage systems.

It belongs to the 74LVC2G126 series and supports logic buffering in LVC logic family applications. The buffer provides CMOS input and output stages, enabling low power consumption and enhanced switching speeds, thus suitable for power-sensitive electronic designs.

Its inputs are compatible with LVTTL and TTL levels, improving interface flexibility across logic circuits. The package is compact, measuring 3.15 mm in length and 1.2 mm in height, facilitating high-density PCB layouts.

The device is rated for a temperature range from -40°C to 125°C, making it suitable for automotive and industrial environments. The buffer's maximum output current ratings are -32 mA for high level and 32 mA for low level, supporting robust signal driving capabilities.

Complies with RoHS standards to meet environmental regulations. Single gate package simplifies integration in circuit designs. Designed for surface mount installation enhancing manufacturing efficiency. Compatible with a wide range of digital logic voltages for versatile applications.

Compatible with automotive and industrial operating ranges but not certified as automotive standard. This product is ideal for electronics manufacturing, industrial systems, and embedded circuit designs requiring reliable logic buffering solutions.
