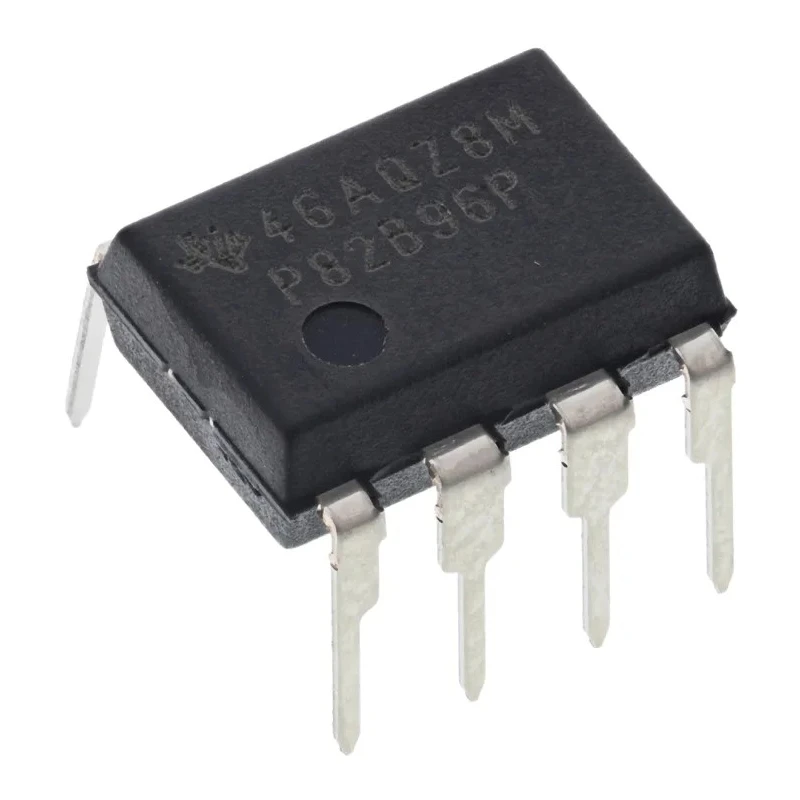

Texas Instruments Open Collector Bus Buffer Logic IC, 2V - 15V Supply, Through Hole PDIP 8-Pin P82B96P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 10.16mm |
| Model | P82B96P |
| Mount Type | Through Hole |
| Output type | Open Collector |
| Series | P82B96 |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Logic Family | P82B96 |
| Logic Function | Buffer |
| Minimum Supply Voltage | 2V |
| Maximum Propagation Delay Time @ CL | 50ns |
| Supply Current | 4mA |
| Maximum Low Level Output Current | 3mA |
Key Features
- Suitable for through hole mounting in PDIP 8-pin package.
- Features differential input and open collector output type.
- Supports supply voltage between 2V and 15V for versatile use.
- Maximum propagation delay time of 50ns ensures reliable signal timing.
- Operates between temperatures of -40°C to 85°C for industrial environments.
- Low supply current at 4mA minimizes power consumption.
- Maximum low-level output current is 3mA for stable output drive.
- Compact dimensions with 10.16mm length and 4.57mm height.
Product Description
Texas Instruments P82B96P Open Collector Bus Buffer Logic IC is engineered for effective I²C and SMBus bus buffering with open collector outputs in an 8-pin PDIP through hole package. The chip operates reliably under supply voltages from 2V to 15V, making it suitable for a wide range of electronic and industrial control applications.
This device features differential inputs and open collector outputs to enable bus repeating and buffering with low propagation delay of 50ns, ensuring minimal signal distortion. It supports temperature operation from -40°C to 85°C, meeting stringent industrial requirements.
Low supply current at 4mA ensures efficient power consumption, while the maximum low-level output current of 3mA provides stable signal drive capability. The compact PDIP package with length 10.16mm and height 4.57mm allows easy insertion and mounting on standard PCBs.
This bus buffer IC improves communication integrity on I²C and SMBus networks by isolating and repeating signals, reducing noise and load effects on the master device. It is ideal for use in embedded systems, automotive electronics, and industrial automation where reliable communication is essential.
Suitable for through hole mounting in PDIP 8-pin package. Features differential input and open collector output type. Supports supply voltage between 2V and 15V for versatile use. Maximum propagation delay time of 50ns ensures reliable signal timing.
Operates between temperatures of -40°C to 85°C for industrial environments. Low supply current at 4mA minimizes power consumption. Maximum low-level output current is 3mA for stable output drive. Compact dimensions with 10.16mm length and 4.57mm height.
Designed for I²C/SMBus bus buffering, repeater functionality, and signal isolation. Ideal for electronics, automotive and industrial control applications. This product is widely used in industrial, automotive, and electronic circuit designs requiring reliable bus buffering and signal integrity.
Explore more semiconductor components and bus Buffers on EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a supply voltage range from 2V to 15V, making it versatile for various applications.
The maximum propagation delay time for the P82B96P is 50ns, ensuring reliable signal timing.
It operates effectively within a temperature range of -40°C to 85°C, suitable for industrial environments.
This unit features an open collector output type, which is ideal for bus buffering applications.
The maximum low-level output current is 3mA, providing stable output drive capabilities.
The dimensions of this PDIP package are 4.57mm in height and 10.16mm in length.
It supports differential inputs, which enhance its performance in bus buffering applications.
The supply current for this model is 4mA, which helps minimize power consumption.
This bus buffer IC has a pin count of 8, suitable for through hole mounting.
It is suitable for use in embedded systems, automotive electronics, and industrial automation requiring reliable communication.
The P82B96P comes in a PDIP package type, designed for through hole mounting on standard PCBs.
This model functions as a buffer, specifically designed for I²C and SMBus bus buffering.
