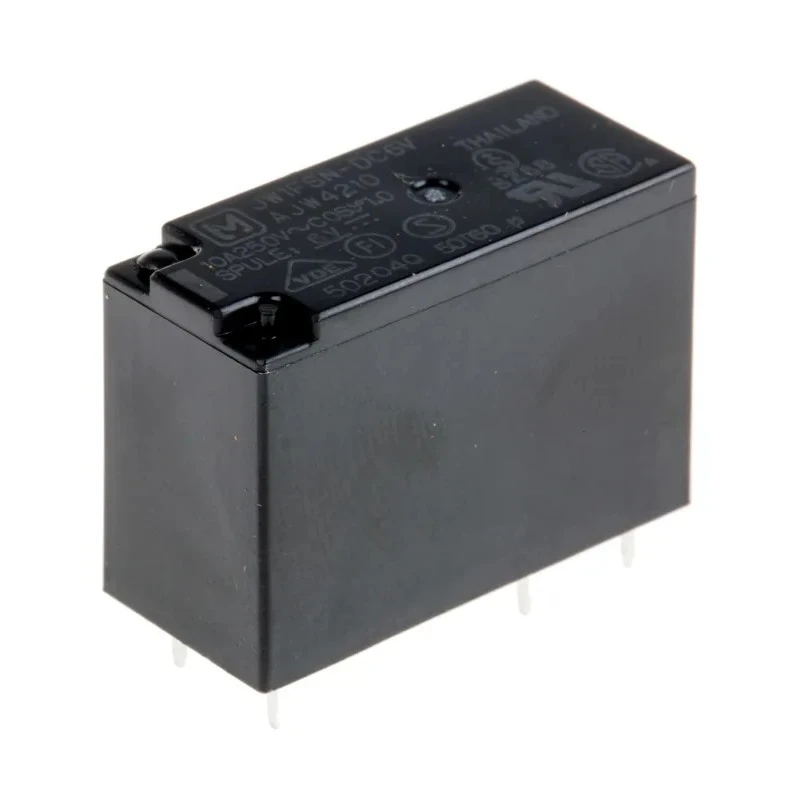

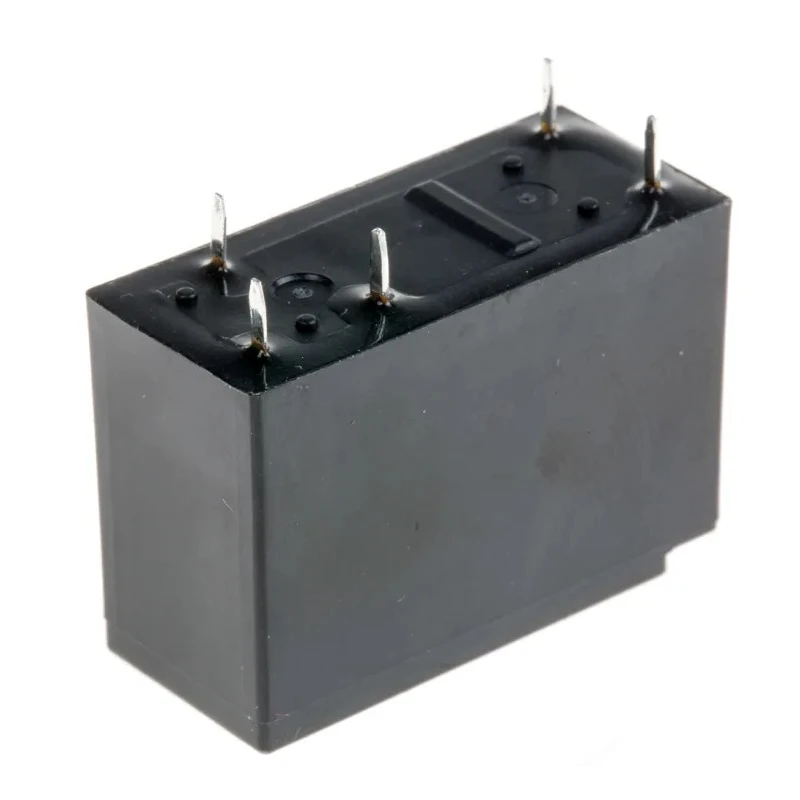

Panasonic PCB Power Relay 6V DC Coil 10A Switching Current SPDT JW1FSN-DC6V
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 20mm |
| Length | 28.6mm |
| Model | JW1FSN-DC6V |
| Width | 12.8mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | JW1FSN |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | VDE, UL, CSA |
| Coil Resistance | 68Ω |
| Coil Voltage | 6V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
Key Features
- Compact sealed design suitable for PCB mounting.
- Single Pole Double Throw (SPDT) contact configuration.
- Coil voltage rating of 6V DC and coil power of 530mW for low power consumption.
- Capable of switching currents up to 10A with 6.9kVA switching power.
- Wide operating temperature range from -40°C to 60°C.
- High surge withstand voltage of 10,000V between contacts and coil.
- Silver alloy contact material ensures durable and reliable connectivity.
- Certified with VDE, UL, and CSA standards.
Product Description
Panasonic JW1FSN-DC6V PCB Power Relay is a compact, sealed, monostable power relay designed for reliable switching performance in industrial, home appliance, and office equipment applications. It features a low-voltage 6V DC coil and supports a high switching current of 10A with SPDT contact configuration, making it suitable for various control tasks.
The JW1FSN series offers a high surge withstand capability of 10,000V between contacts and coil, ensuring longevity and protection against voltage spikes. Its silver alloy contact material guarantees stable electrical performance with low contact resistance of 100mΩ. The sealed construction protects against dust and contamination, thus improving operational reliability in demanding environments.
Operating over a temperature range from -40°C to 60°C, this relay is robust for harsh conditions. The coil resistance of 68Ω and coil power consumption of 530mW provide energy-efficient operation. Dimensions of 20mm (H) x 12.8mm (W) x 28.6mm (L) enable simple PCB mounting with a universal terminal footprint and PCB pin terminals.
The relay meets various international certifications including VDE, UL, and CSA, ensuring compliance with safety and quality standards. Typical applications include switching loads in home appliances, office machines, and general industrial machinery.
Compact sealed PCB mount Power Relay with long electrical life. SPDT contact configuration with 10A switching current capacity. Low coil voltage of 6V DC and coil power of 530mW. High surge voltage withstand up to 10,000V.
Silver alloy contacts for enhanced reliability. Operating temperature range from -40°C to 60°C. Dimensions designed for easy PCB mounting. Certified to VDE, UL, CSA standards. Suitable for industrial, home appliance, and office equipment use.
Explore EnvMart for a wide range of industrial relays and components from trusted brands like Panasonic.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is capable of switching currents up to 10A.
The coil voltage rating for this relay is 6V DC.
The relay has dimensions of 20mm in height, 12.8mm in width, and 28.6mm in length.
It features a Single Pole Double Throw (SPDT) contact configuration.
The operating temperature range is from -40°C to 60°C.
The coil power consumption is 530mW.
The contact material is silver alloy, which ensures reliable connectivity.
This relay is certified with VDE, UL, and CSA standards.
The contact resistance is 100mΩ.
It has a high surge withstand voltage of 10,000V between contacts and coil.
This model is designed for PCB mounting with PCB pin terminals.
It can switch DC voltage up to 30V and AC voltage up to 250V.
