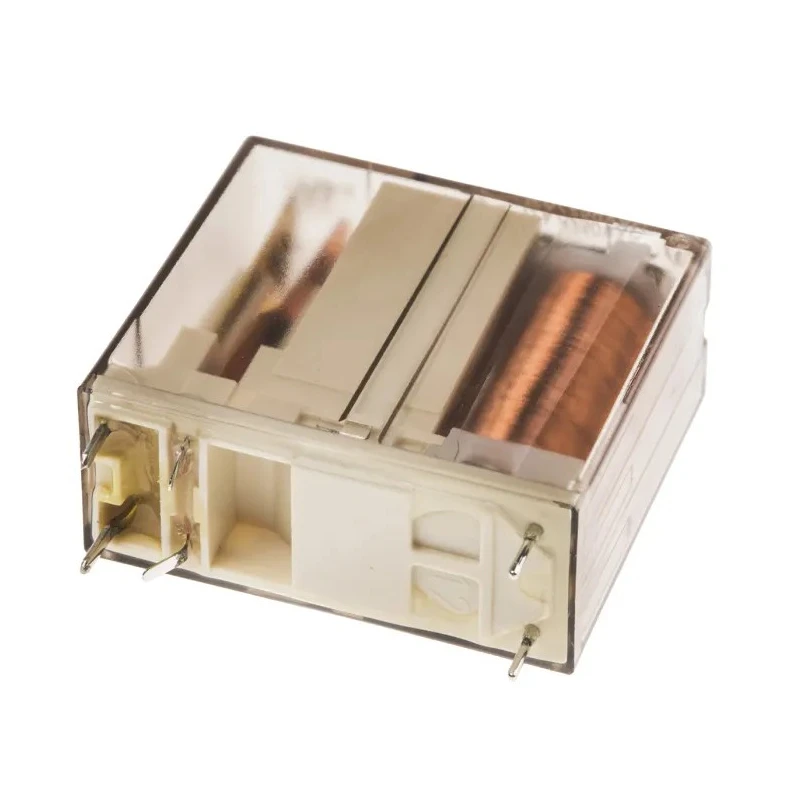

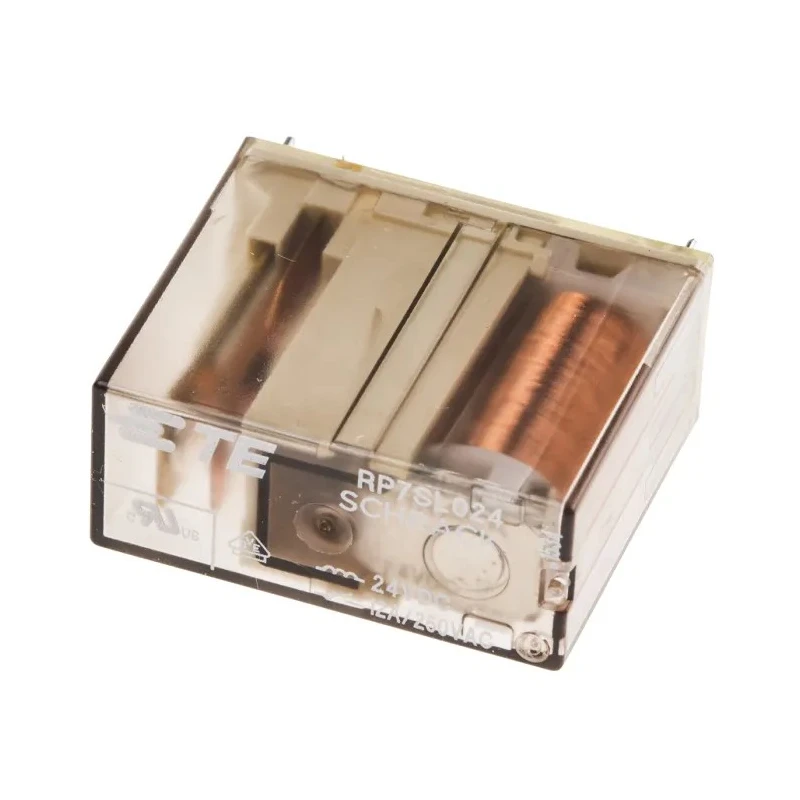

TE Connectivity PCB Power Relay, 24V dc Coil, 12A Switching Current, SPST 6-1393231-6

TE Connectivity 6-1393231-6 PCB Power Relay is a high-performance relay designed for industrial and commercial electronic control applications. It features a 24V dc coil voltage and a switching current capacity of 12 amperes with SPST contact configuration, making it ideal for reliable single-pole circuit switching.

This power relay is specifically designed for PCB mounting with solder terminals, ensuring easy and secure installation on printed circuit boards. The coil resistance of 1.1k ohms enables stable coil operation, while the relay can handle switching voltages up to 400V ac with a switching power rating of 4kVA, suitable for a broad range of industrial control setups.

Constructed using silver alloy contacts, the relay provides excellent conductivity and durability, ensuring consistent performance over its operating life. It operates efficiently within a temperature range of -40°C to +70°C, enabling use in various environmental conditions including industrial automation, lighting control, motor control, and home automation systems.

The compact form factor, with dimensions of 29mm length, 25.5mm height, and 12.6mm width, fits neatly into standard PCB layouts, minimizing space requirements without compromising performance. The coil power consumption of 520mW allows energy saving while maintaining effective actuation.

The relay complies with VDE and UL standards (VDE Cert. No. 40025448 and UL E214024), assuring safety and reliability in industrial and electronic applications. Its RP3SL series designation indicates compatibility with DIN rail mounting sockets (sold separately), supporting versatile installation options.

Operates on a coil voltage of 24V dc for efficient switching. Supports a maximum switching current of 12 amperes for robust load handling. Features SPST contact configuration suitable for single-pole switching applications.

Designed for PCB mounting with solder terminal type for secure installation. Coil resistance is rated at 1.1k ohms ensuring precise coil performance. Handles switching AC voltage up to 400V ac, suitable for various industrial circuits.

Operates reliably in temperatures ranging from -40°C to +70°C for durability in harsh environments. Constructed with silver alloy contact material for longevity and consistent electrical conductivity. Compact dimensions of 29mm length, 25.5mm height, and 12.6mm width fit standard PCB layouts.

Low coil power consumption of 520mW improves energy efficiency in control circuits.

This TE Connectivity Power Relay is particularly suitable for electrical, automation, and industrial applications including lighting control, timers, motor control, and home automation system integration. Its robust electrical ratings and industry approvals make it a reliable component for complex electronic designs.
