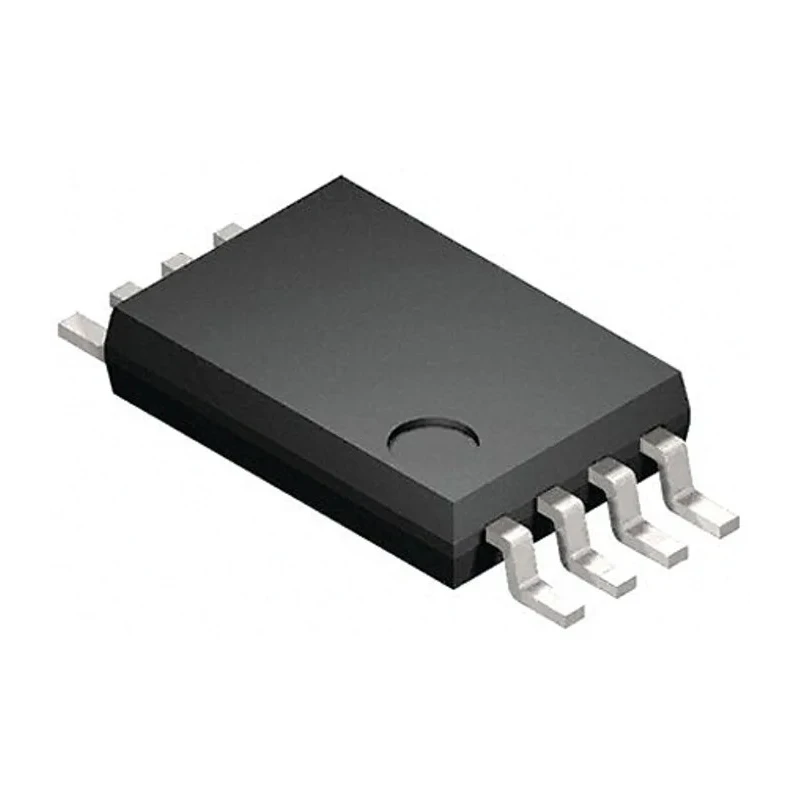

onsemi Logic Gate 1 2-Input AND, NAND Logic Function, ECL, Surface Mount, 8-Pin TSSOP MC100EP05DTG

onsemi MC100EP05DTG is a high-speed logic gate IC implementing a 1 2-input AND and NAND logic function using Emitter Coupled Logic (ECL) technology. This device features a surface mount 8-pin TSSOP package designed for efficient PCB layout and space-saving in modern electronics.

This logic gate operates at a maximum supply voltage of 5.5 V and supports a minimum supply voltage of -3 V. It delivers a maximum propagation delay time of 320 picoseconds at specified load capacitance, ensuring rapid signal processing critical for high-frequency digital circuits.

The device is rated to function reliably within a temperature range from -40°C to 85°C, making it suitable for a broad range of industrial and commercial applications where temperature stability is essential.

Featuring a single gate element with two inputs per gate, and an ECL input type, the MC100EP05DTG offers precise logical operations with a low output current capability of 0.5 μA at the low level, ideal for minimizing power consumption in complex logic designs.

Its compact form factor of 3.1 mm length and 0.95 mm height in a TSSOP package allows seamless integration into densely packed circuit boards, enhancing space utilization without compromising performance.

Applications for this logic gate IC span industrial automation, telecommunications equipment, high-speed computing, signal processing, and instrumentation where precise, rapid logic functions are paramount.

This device operates with a maximum supply voltage of 5.5 volts. It has a maximum propagation delay time of 320 picoseconds at load capacitance. Designed to function within an operating temperature range from -40 to 85 degrees Celsius.

The package type is 8-pin TSSOP, suitable for compact PCB mounting. It features a single element with two inputs per gate for logic operations. Reliable Emitter Coupled Logic (ECL) output type ensures high-speed switching.

Non-Schmitt trigger input design enhances stable logic function. Optimized for surface mount technology applications. Compact dimensions of 3.1 mm length and 0.95 mm height.

This onsemi Logic Gate IC combines high speed and compact packaging, making it integral for efficient electronic designs. For exploring more high-quality logic components and semiconductors, browse the relevant categories on EnvMart.
