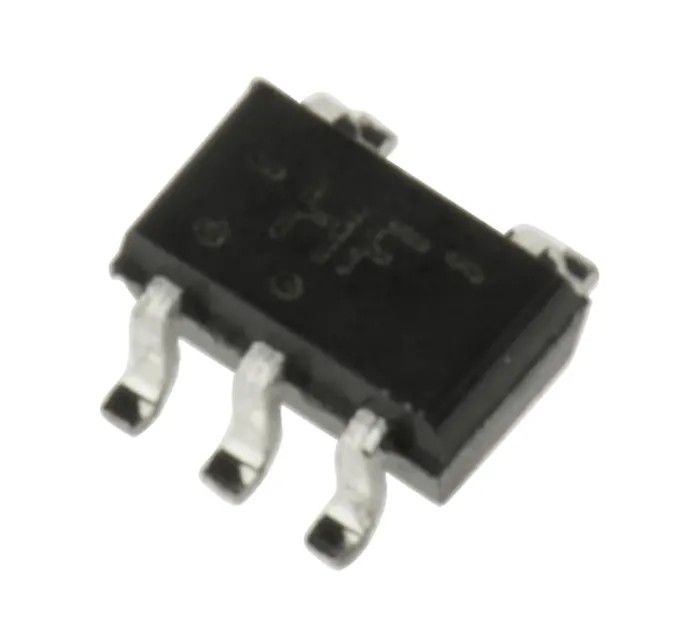

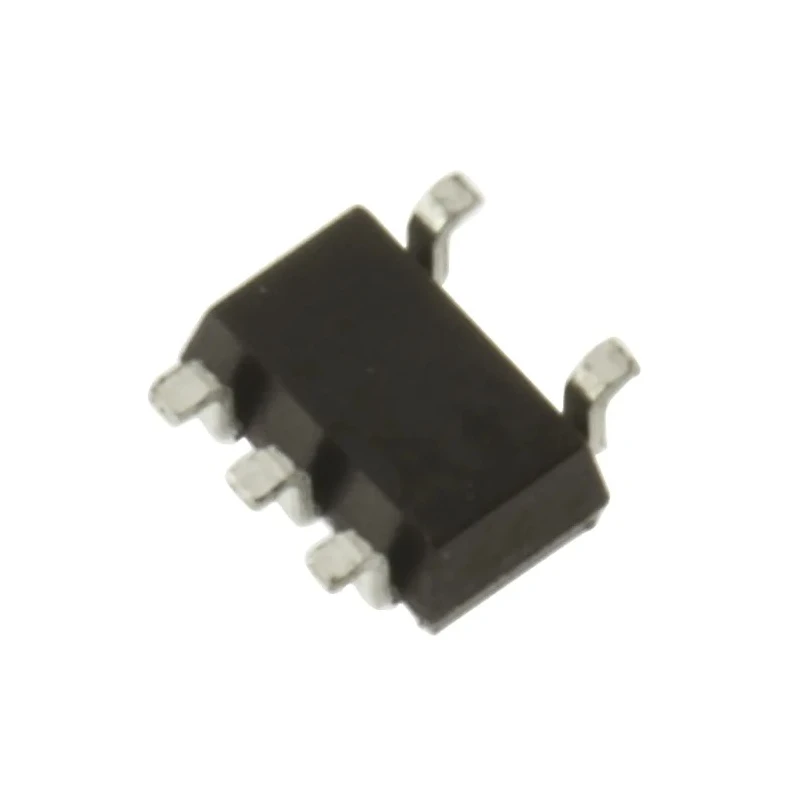

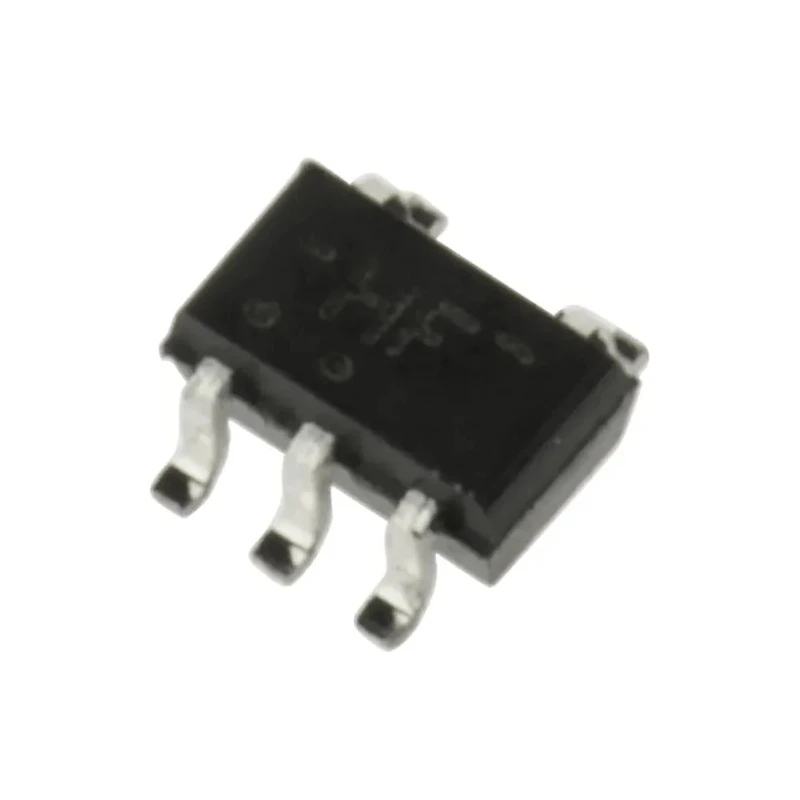

Nexperia Schmitt Trigger Input Inverter 1 Element, 5-Pin TSSOP Package 2V-6V Operating Voltage 74HC1G14GW,125

Name: Nexperia Schmitt Trigger Input Inverter 1 Element, 5-Pin TSSOP Package 2V-6V Operating Voltage 74HC1G14GW,125
Brand: Nexperia
SKU: 324651
Price: 0.08 USD
Availability: InStock



Category Inverter ICs Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	1mm
Length	2.25mm
Model	74HC1G14GW,125
Width	1.35mm
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	Inverting
Series	74HC1G14
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Pin Count	5
Number of Elements per Chip	1
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	Inverter
Minimum Supply Voltage	2V
Maximum High Level Output Current	-2.6mA
Maximum Propagation Delay Time @ CL	190ns
Maximum Low Level Output Current	2.6mA

Key Features

This inverter features a Schmitt Trigger input for noise immunity and signal conditioning.
It contains one inverter element per chip with an inverting output type.
The device supports surface mount with a small 5-pin TSSOP package for compact PCB layout.
It operates within a temperature range of -40°C to 125°C, suitable for various industrial environments.
The maximum propagation delay time is 190 nanoseconds at typical load conditions.
Compatible with input and output CMOS voltage levels, enabling flexible circuit integration.
The maximum supply voltage is 6 V with a minimum of 2 V, enabling low voltage operation.

Product Description

Nexperia 74HC1G14GW,125 Schmitt Trigger Input Inverter IC is a high-speed CMOS logic device designed for industrial, electronic, and manufacturing applications requiring signal conditioning and logic inversion. Operating voltage ranges from 2 to 6 volts, this single inverter element contains a Schmitt Trigger input, enhancing signal noise immunity and providing clean switching characteristics.

The component features a 5-pin TSSOP surface mount package suited for dense PCB layouts, measuring 2.25 mm in length, 1.35 mm in width, and 1 mm in height. It supports operating temperatures from -40°C to 125°C, making it reliable for harsh environments encountered in industrial and electronic assemblies.

Its maximum propagation delay time is specified at 190 nanoseconds at typical load conditions, ensuring fast response in logic circuits. The device output is inverting with a maximum low-level output current of 2.6 mA and maximum high-level output current of -2.6 mA. The logic family is from the HC 74HC series that is compatible with input CMOS and output CMOS voltage levels, allowing versatile usage across multiple electronic configurations.

This Schmitt Trigger Inverter is essential in applications where noise rejection and signal stability are critical, such as in industrial control systems, automation, embedded electronics, and power supply logic interfaces. The compact form factor and robust electrical characteristics make it highly suitable for modern electronic system designs.

This inverter offers a Schmitt Trigger input for enhanced noise immunity. It features one inverter element per chip for straightforward logic design. The TSSOP 5-pin surface mount package facilitates compact PCB integration.

Operating voltage range from 2 V to 6 V allows flexibility for low voltage circuits. Wide operating temperature range from -40°C to 125°C suits demanding conditions. The component delivers a fast maximum propagation delay time of 190 ns.

Compatible with CMOS input and output voltages ensuring broad use cases. Explore the wide range of Inverter ICs in the Semiconductor category at EnvMart for all your industrial and electronic component needs.
