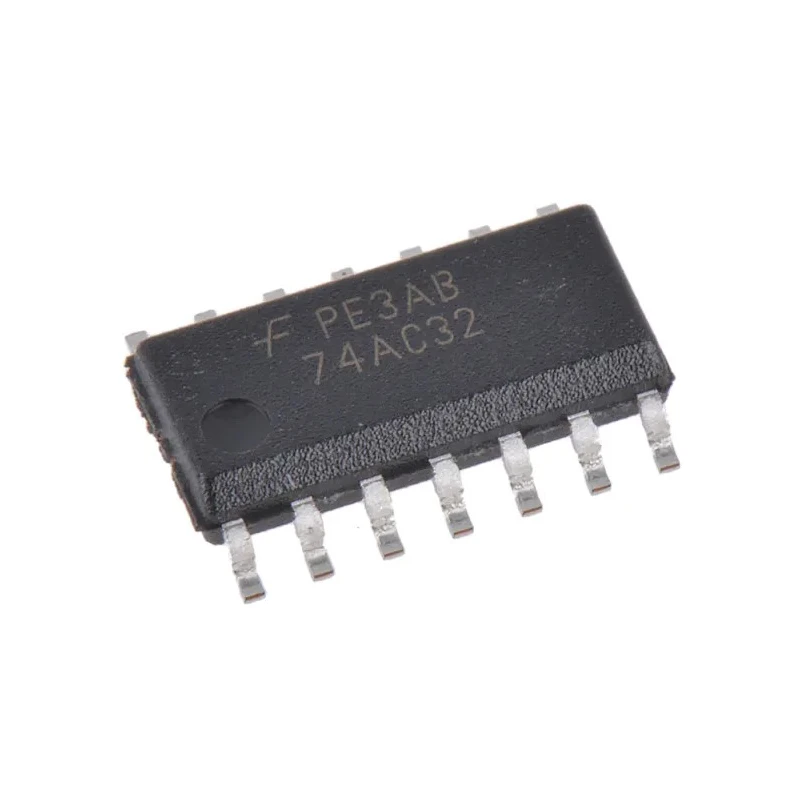

onsemi 4 2-Input OR Logic Gate, 14-Pin SOIC Logic IC 2V-6V Operating Voltage 74AC32SCX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.5mm |
| Length | 8.75mm |
| Model | 74AC32SCX |
| Mount Type | Surface |
| Compatibility | Input CMOS, Output CMOS |
| Input Type | TTL |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements | 4 |
| Maximum Supply Voltage | 6V |
| Logic Family | AC |
| Logic Function | OR |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 8.5ns |
| Maximum Low Level Output Current | 24mA |
| Number of Inputs per Gate | 2 |
| Fairchild Semiconductor 74AC32SCX, Quad 2-Input OR Logic Gate, 14-Pin SOICBrand | Fairchild Semiconductor |
Key Features
- Features four independent 2-input OR gates in a single device.
- Operating temperature ranges from -40°C to 85°C for robust performance.
- Employs Advanced CMOS Logic suitable for TTL input compatibility.
- Maximum propagation delay time of 8.5ns ensures fast switching speeds.
- Designed with low power consumption and high noise immunity.
- Compatible with input CMOS and output CMOS logic families.
- Standard 14-pin SOIC package with a compact length of 8.75mm and height of 1.5mm.
- Maximum supply voltage is 6V with minimum voltage operation at 2V.
Product Description
onsemi 74AC32SCX is a Quad 2-Input OR Logic Gate integrated circuit packed in a 14-pin SOIC surface mount package. It belongs to the Advanced CMOS logic family, which provides high speed and low power consumption operation. Operating voltage ranges from 2V to 6V making it versatile for various electronic applications.
This logic IC includes four independent OR gates, each with two inputs, enabling complex logical functions with ease. The device features TTL input compatibility while providing CMOS outputs, ensuring interoperability with a wide range of digital logic levels.
The maximum propagation delay time is rated at 8.5ns, supporting high-speed digital circuits with minimal delay. It operates reliably in harsh environments with a temperature range of -40°C to 85°C. The device does not include Schmitt Trigger inputs which means input signals must meet standard logic threshold requirements.
The 14-pin SOIC package has a compact footprint with a length of 8.75mm and height of 1.5mm, making it suitable for densely populated printed circuit boards. Its electrical characteristics include a maximum high-level output current of -24mA and a maximum low-level output current of 24mA, suitable for driving various digital loads.
Four 2-input OR gates providing flexible logic functions. Advanced CMOS technology delivering efficient power usage. Wide operating voltage range from 2V to 6V. Fast switching speed with 8.5ns propagation delay. Operating temperature from -40°C to 85°C for industrial applications.
TTL input compatible and CMOS output configuration. 14-pin SOIC package for surface mount assembly. Maximum output current ratings support diverse load requirements. Ideal for industrial, laboratory, electronic assembly, and embedded systems.
This logic gate IC is widely used in electronic design, industrial control systems, embedded computing, and educational laboratory setups. It facilitates logical OR operations at high speed and low power, enhancing system performance.
Explore more semiconductor and Logic Gate products on EnvMart to find compatible components for your projects and systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 2V to 6V.
The maximum propagation delay time is rated at 8.5ns, ensuring fast switching speeds.
It operates reliably within a temperature range of -40°C to 85°C.
This unit features four independent 2-input OR gates.
It is packaged in a standard 14-pin SOIC surface mount configuration.
The dimensions of this model are 1.5mm in height and 8.75mm in length.
It is compatible with input CMOS and output CMOS logic families.
The maximum high-level output current is -24mA, and the maximum low-level output current is 24mA.
This model supports TTL input compatibility.
It is suitable for electronic design, industrial control systems, embedded computing, and educational laboratory setups.
This logic gate performs the OR function with two inputs per gate.
It belongs to the Advanced CMOS logic family, specifically classified as AC.
