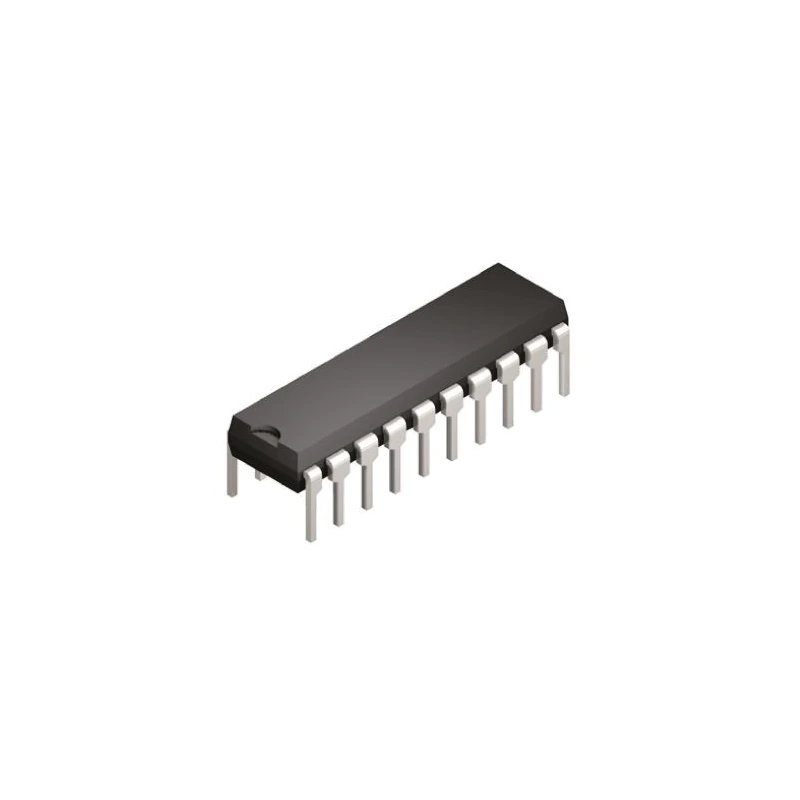

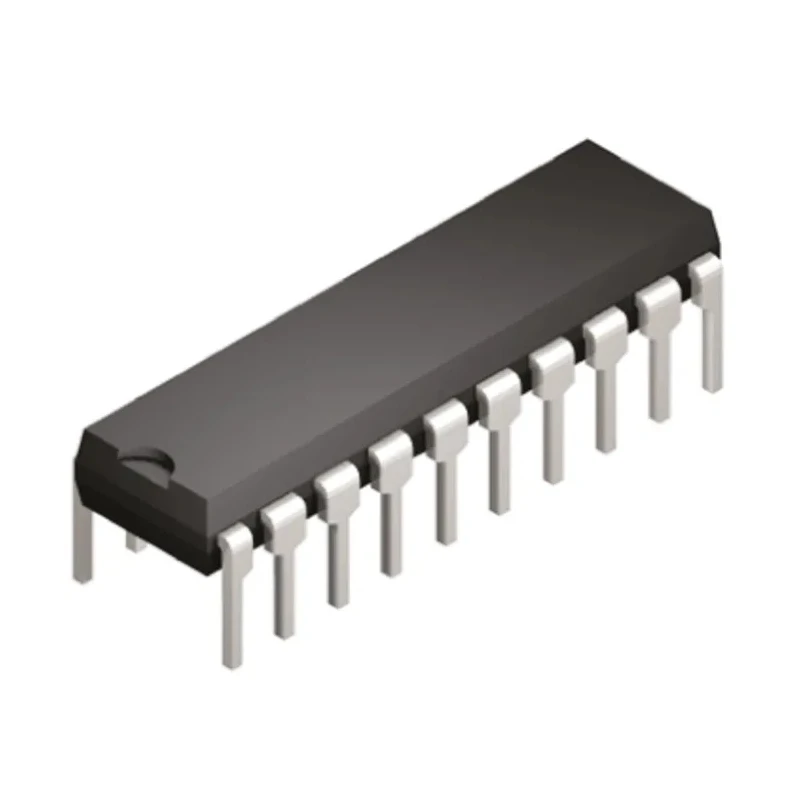

Texas Instruments 8-Bit Non-Inverting TTL Bus Transceiver Through Hole PDIP 20-Pin SN74ALS641A-1N

Texas Instruments SN74ALS641A-1N is an 8-bit non-inverting TTL bus transceiver featuring 8 channels designed for use in high-speed digital systems. Housed in a through hole PDIP 20-pin package, this device allows bidirectional data transmission, making it suitable for bus-oriented applications requiring direction control.

This transceiver operates within a supply voltage range from 4.5V to 5.5V, ensuring reliable TTL logic levels for both inputs and outputs. It has a maximum propagation delay time of 21ns, providing fast switching performance consistent with ALS logic family standards.

The device supports three-state outputs to facilitate bus sharing and data flow control in complex circuit designs. Its operating temperature range from 0°C to 70°C makes it suitable for a variety of industrial and commercial environments.

Measuring 24.33mm in length and 4.57mm in height, the PDIP package ensures easy mounting on through hole PCB designs. The transceiver does not conform to any automotive or special standards and is intended primarily for general-purpose logic interfacing tasks.

Industrial and laboratory applications, as well as manufacturing and embedded systems requiring high-speed bus communication, will benefit from the SN74ALS641A-1N's features. It is optimal for designs where non-inverting logic bus transceivers are needed in a compact and reliable package.

This device belongs to the ALS logic family designed for high-speed operation. Provides 8 channels for bidirectional data transmission with non-inverting logic levels. Operates with a minimum supply voltage of 4.5V and maximum supply voltage of 5.5V.

Capable of a maximum propagation delay time of 21 nanoseconds at specified load conditions. Supports TTL input and output levels, suitable for standard digital interface requirements. Maximum operating temperature is 70 degrees Celsius with a minimum of 0 degrees Celsius.

Features a 3-state output type allowing bus sharing capability. The package dimensions include a height of 4.57mm and length of 24.33mm. Explore more in the Bus Transceivers category for related semiconductor logic ICs at EnvMart.
