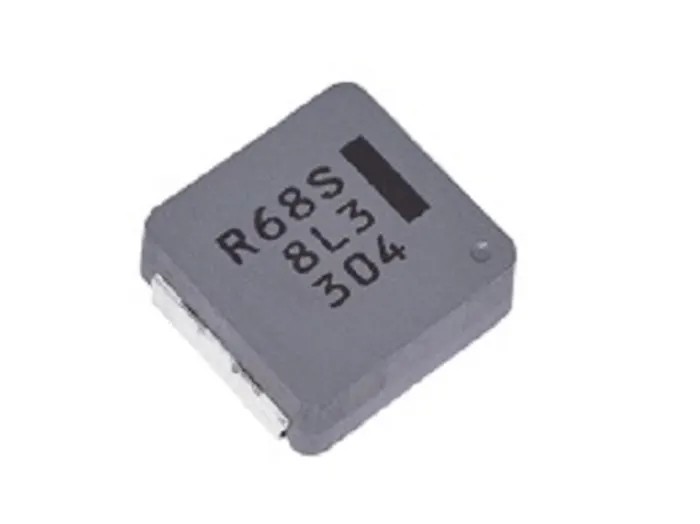

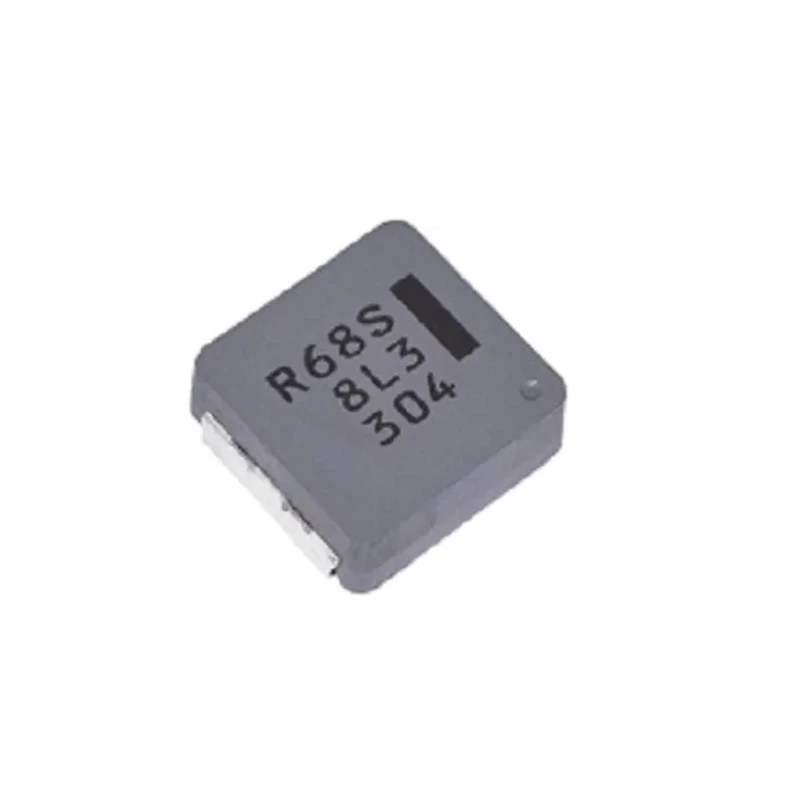

Panasonic Shielded Wirewound Surface Mount Inductor Metal Composite Core 2.45μH ±20% 14.1A Idc ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5.4mm |
| Length | 8.5mm |
| Model | ETQP5M |
| Depth | 8mm |
| Packaging | Tape & Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 2.45μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 14.1A |
| Pin Count | 2 |
| Maximum DC Resistance | 8.14mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a metal composite core providing high heat resistance and reliability.
- Shielded construction ensures reduced electromagnetic interference.
- Compatible with surface mount technology for easy PCB assembly.
- Meets automotive standard AEC-Q200 for quality and durability.
- Operates effectively from -40°C to 150°C temperature range.
- Wirewound inductor construction offers excellent inductance stability.
- Maximum DC resistance of 8.14mΩ minimizes power losses.
- Self-resonant frequency reaches up to 100kHz for efficient filtering.
Product Description
Panasonic ETQP5M Shielded Wirewound Surface Mount Inductor with a Metal Composite Core delivers robust performance with an inductance of 2.45μH ±20% and a high maximum DC current capacity of 14.1A. Designed with a shielded structure, this surface mount inductor minimizes electromagnetic interference, making it ideal for high-performance electronic applications.
The inductor is constructed with wirewound technology utilizing a ferrous alloy magnetic material, enhancing inductance stability and vibration resistance. It operates reliably over a wide temperature range, from -40°C to a maximum operating temperature of 150°C, conforming to the automotive standard AEC-Q200.
Its metal composite core ensures high heat resistance and durability, suitable for demanding industrial, automotive, and electronic uses such as noise filtering and power regulation. The device is molded and provided with two pins for surface mounting, packaged in tape and reel to facilitate automated PCB assembly.
Metal composite core construction for high heat and vibration resistance. Shielded design to reduce noise and electromagnetic interference. High current handling capacity up to 14.1A for peak power requirements. Operating temperature range from -40°C to 150°C supports harsh environments.
Compliance with RoHS standards ensures environmental safety. Compact dimensions: length 8.5mm, height 5.4mm, depth 8mm to fit space-constrained boards. Ideal for automotive, industrial electronics, and power supply applications.
This Panasonic ETQP5M inductor is recommended for engineers and designers seeking a reliable, high-performance component for surface mount electronic circuits. Its design supports efficient noise filtering and energy management in automotive, industrial, and consumer electronics.
Explore more Surface Mount Inductors and related components in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.45μH with a tolerance of ±20%.
It has a maximum DC current rating of 14.1A, suitable for high power applications.
This inductor operates effectively in a temperature range from -40°C to 150°C.
The ETQP5M features a metal composite core, which provides high heat resistance and reliability.
It is packaged in tape and reel format, facilitating automated PCB assembly.
The maximum DC resistance is 8.14mΩ, which helps minimize power losses.
The maximum self-resonant frequency of this model reaches up to 100kHz, making it efficient for filtering applications.
Yes, it meets the automotive standard AEC-Q200 and is compliant with RoHS standards for environmental safety.
The dimensions are 8.5mm in length, 5.4mm in height, and 8mm in depth.
It utilizes a wirewound construction, enhancing inductance stability and vibration resistance.
It is suitable for automotive, industrial electronics, and power supply applications, particularly for noise filtering and energy management.
This model has a pin count of 2, designed for surface mounting.
