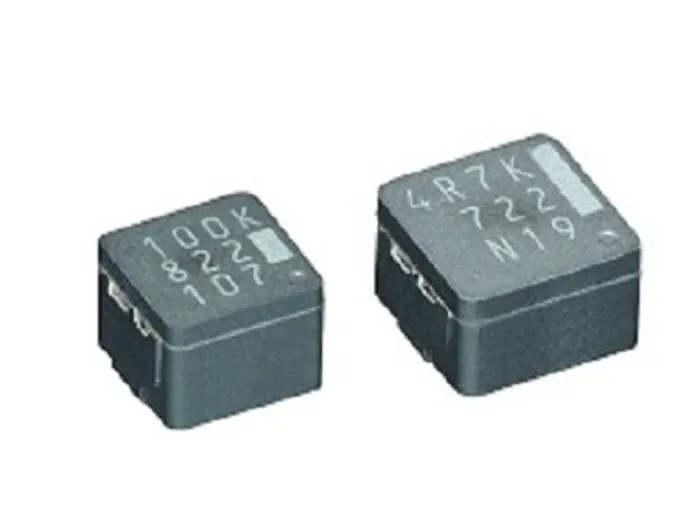

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 22 μH ±20% 3.9 A Idc ETQP4M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 4.8mm |
| Length | 7.4mm |
| Model | ETQP4M |
| Depth | 7mm |
| Packaging | Tape & Reel |
| Series | ETQP4M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 3.9A |
| Pin Count | 2 |
| Maximum DC Resistance | 92.51mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a metal composite core providing high heat resistance and reliability.
- Features shielded design to minimize electromagnetic interference.
- Rated for operation up to 150°C, suitable for high-temperature applications.
- Surface mount termination style for modern PCB assembly processes.
- Compliance with RoHS and automotive standard AEC-Q200 for quality assurance.
- Maximum DC resistance of 92.51 mΩ supporting efficient current handling.
- Compact dimensions of 7.4 mm length, 4.8 mm height, and 7 mm depth.
- Integral moulded construction ensures high vibration resistance and mechanical stability.
Product Description
Panasonic ETQP4M shielded wirewound surface mount inductor offers robust electrical performance with a metal composite core optimized for high reliability in demanding industrial and automotive applications. Featuring a nominal inductance of 22 μH with ±20% tolerance, it supports a maximum DC current of 3.9 A while maintaining low DC resistance of 92.51 mΩ. The inductor is constructed with an advanced wirewound design and shielded casing to reduce electromagnetic interference and noise.
Designed for surface mount technology (SMT), the ETQP4M series is supplied on tape and reel packaging, facilitating automated PCB assembly. It meets automotive standard AEC-Q200 ensuring suitability for automotive electronics and other high-reliability environments.
The component operates reliably within a wide temperature range from -40°C to 150°C, including self-heating conditions, making it well suited for use in power supplies, noise filters, and other high-temperature electronic circuits.
Its compact dimensions (7.4 mm length, 4.8 mm height, 7 mm depth) allow for space-saving integration. The integral moulded construction improves mechanical durability and vibration resistance, enhancing longevity in harsh industrial conditions.
Metal composite core for high heat and vibration resistance. Shielded wirewound construction reduces noise and interference. Suitable for power circuits and noise filtering in automotive and industrial electronics. Compliance with RoHS and AEC-Q200 for environmental and quality standards adherence.
Surface mount packaging enables efficient automated assembly.
This Panasonic ETQP4M inductor is ideal for engineers and designers requiring reliable inductors for power management and signal integrity in compact electronic systems. Explore more Surface Mount Inductors and Panasonic products on EnvMart for your next high-quality circuit design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 22 μH with a tolerance of ±20%.
It supports a maximum DC current of 3.9 A.
This unit has dimensions of 7.4 mm in length, 4.8 mm in height, and 7 mm in depth.
The maximum operating temperature is rated at 150°C.
It features a wirewound construction with a metal composite core, providing high heat resistance and reliability.
Yes, it complies with RoHS and the automotive standard AEC-Q200.
The termination style is surface mount, suitable for modern PCB assembly processes.
The maximum DC resistance is 92.51 mΩ, supporting efficient current handling.
It is supplied on tape and reel packaging, facilitating automated assembly.
It operates reliably within a temperature range from -40°C to 150°C.
It is suitable for use in power supplies, noise filters, and other high-temperature electronic circuits.
The shielded design minimizes electromagnetic interference and noise, enhancing its performance in sensitive applications.
