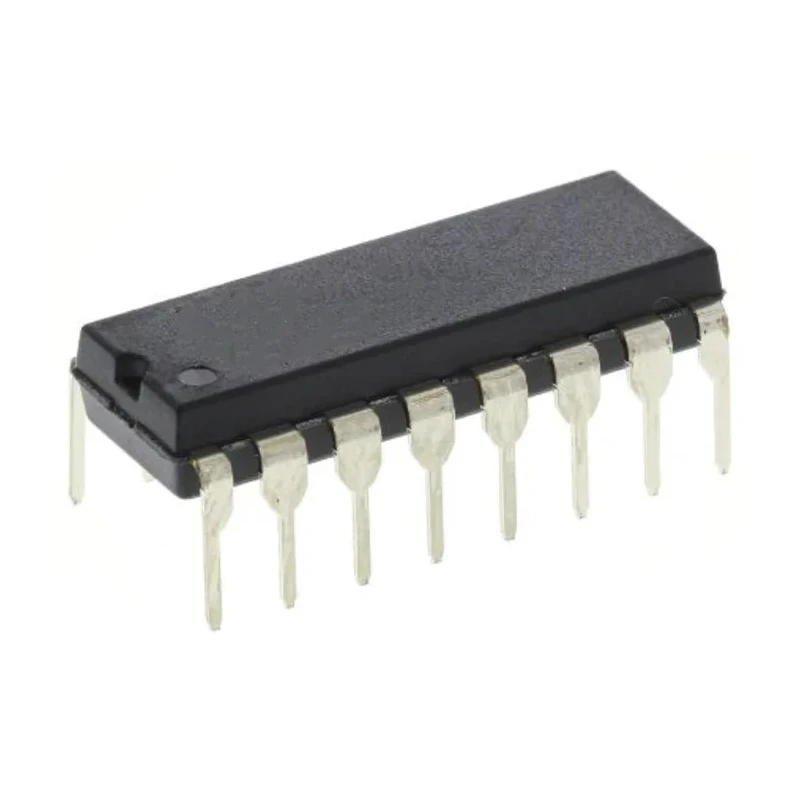

Renesas Electronics Line Transceiver, 3 State, Inverting, CMOS TTL Input, 16-Pin PDIP Package 5V HIN202ECPZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 5.33mm |
| Length | 19.68mm |
| Model | HIN202ECPZ |
| Width | 8.25mm |
| Mount Type | Through Hole |
| Output type | 3 State |
| Series | HIN202 |
| Input Type | CMOS, TTL |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Polarity | Inverting |
| IC Type | Line Transceiver |
| Pin Count | 16 |
| Maximum Supply Voltage | 5V |
| Logic Family | CMOS |
| Logic Function | Transceiver |
| Maximum Propagation Delay Time @ CL | 10μs |
| Supply Current | 15mA |
Key Features
- CMOS logic family with TTL compatible inputs.
- Operates from a single +5V power supply.
- Onboard voltage doubler/inverter minimizes external components.
- Low power consumption with a supply current of 15mA.
- Through-hole mounting suitable for standard PCB applications.
- Complies with EIA high-speed RS-232E and V.28 specifications.
- Operating temperature range from 0°C to 70°C.
- Maximum propagation delay time of 10μs ensuring fast signal transmission.
Product Description
Renesas Electronics HIN202ECPZ line transceiver is designed for efficient RS-232 communication line interfacing applications. This IC features a 3-state output and inverting logic, housed in a 16-pin PDIP package that facilitates through-hole mounting on printed circuit boards.
Operating solely on a single +5V power supply, it integrates an onboard voltage doubler and inverter, which eliminates the need for dual power rails and reduces external components. With a low supply current of 15mA, this device offers energy-efficient operation in various industrial, communication, and electronic interface systems.
The transceiver supports CMOS logic with TTL input compatibility, making it versatile for use in diverse electronic assemblies that require line interface capabilities conforming to the RS-232E and V.28 standards. Its compact footprint with dimensions of 19.68mm in length, 8.25mm in width, and 5.33mm in height allows for space-saving design in embedded systems, control panels, and automation devices.
The operating temperature span from 0°C to 70°C ensures reliable performance in standard environmental conditions. The device exhibits a maximum propagation delay of 10 microseconds, suitable for moderate-speed data transmission applications.
Applications include industrial control systems, data communication equipment, laboratory instrumentation interfaces, and embedded system designs that require robust and standardized line transmitter and receiver features.
CMOS logic family with TTL compatible inputs. Single +5V power supply operation with onboard voltage doubler/inverter. Low power consumption of 15mA supply current. Through-hole 16-pin PDIP packaging. Compliant with EIA high-speed RS-232E and V.28 specifications.
3-state output with inverting polarity function. Operating temperature range 0°C to 70°C. Compact dimensions for space-efficient designs. Maximum propagation delay 10μs for signal timing. Explore our wide range of line interface ICs and semiconductor products for industrial, commercial, and laboratory applications on EnvMart.
Explore more products in our Line Transceiver IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5V.
This unit operates within a temperature range of 0°C to 70°C.
It features a 3-state output type.
The supply current for this model is 15mA.
The dimensions are 19.68mm in length, 8.25mm in width, and 5.33mm in height.
It supports CMOS and TTL compatible inputs.
The maximum propagation delay time is 10 microseconds.
It comes in a 16-pin PDIP package suitable for through-hole mounting.
Yes, it complies with EIA high-speed RS-232E and V.28 specifications.
This model belongs to the CMOS logic family.
It features an inverting polarity function.
It is suitable for applications in industrial control systems, data communication equipment, and laboratory instrumentation interfaces.
