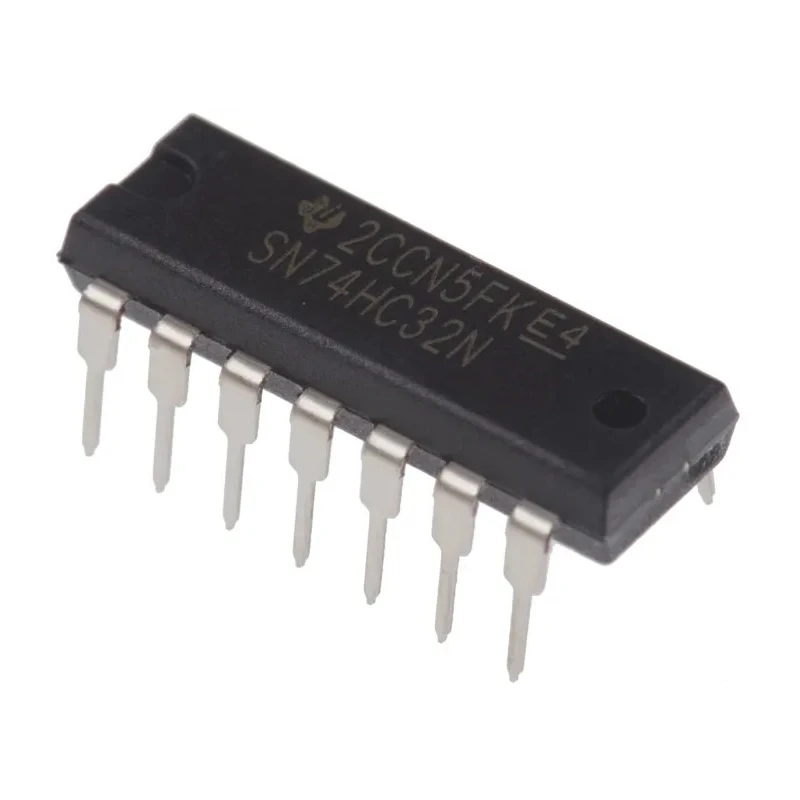

Texas Instruments 4 2-Input OR Logic Gate, 14-Pin PDIP SN74HC32N

Texas Instruments SN74HC32N is a high-speed CMOS Logic Gate integrated circuit featuring four independent 2-input OR gates. This device is housed in a 14-pin PDIP (Plastic Dual In-line Package) designed for easy through-hole mounting on printed circuit boards. The SN74HC32N operates over a wide supply voltage range from 2V up to 6V, making it suitable for various digital electronic applications.

This OR gate IC offers a maximum propagation delay time of 21 nanoseconds at specified load conditions, enabling rapid logic operations in timing-critical circuits. The device is designed to function reliably under industrial operating temperatures ranging from -40°C to 85°C, ensuring robustness in harsh environments including industrial, laboratory, and commercial electronics manufacturing.

The logic family HC indicates it is part of Texas Instruments' high-speed CMOS logic devices, characterized by low power consumption and high noise immunity. The push-pull output structure supports clean signal driving capability. The device contains 14 pins, compatible with standard DIP socket footprints, allowing straightforward integration.

This product is ideal for use in digital logic circuits requiring OR gate functionalities such as signal routing, decision making, and combinational logic implementations found in industrial control systems, instrumentation, communication devices, and embedded computing platforms.

Four independent 2-input OR gates in one IC for compact logic design. Wide supply voltage of 2V to 6V accommodates various power schemes. Fast switching with 21ns propagation delay enhances circuit speed. Operating temperature range of -40°C to 85°C ensures reliability.

Through-hole 14-pin PDIP package for easy circuit board integration. High-level output current of -5.2mA and low-level output current of 5.2mA supports diverse load conditions. Push-pull output type for stable and robust signals.

CMOS input technology with high noise immunity suited for precision digital circuits. Non-Schmitt trigger inputs suitable for standard logic signal compatibility. Explore more Texas Instruments logic devices and semiconductor products on EnvMart for your industrial, laboratory, and electronic manufacturing needs.
