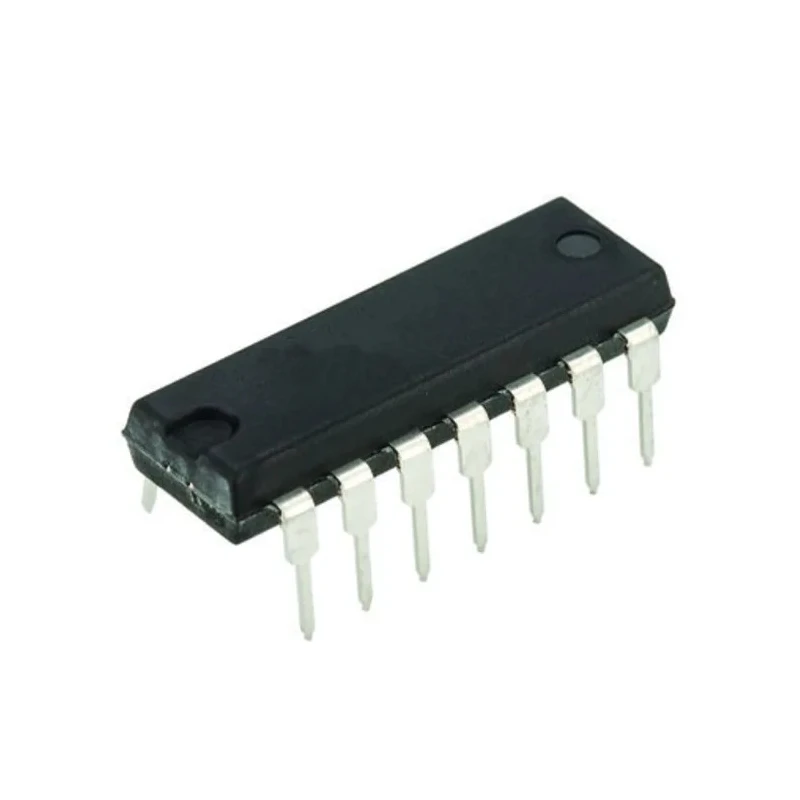

Texas Instruments 3 3-Input OR Logic Gate 14-Pin PDIP CD4075BE

The Texas Instruments CD4075BE is a 3 3-Input OR Logic Gate IC housed in a 14-pin PDIP package designed for through-hole mounting. This CMOS logic device belongs to the 4000 series family, known for its wide operating voltage range from 3 to 18 volts, making it suitable for various industrial, electronic, and laboratory automation applications.

The IC contains three independent OR gates, each with three inputs, enabling complex logic operations within compact circuit designs. It operates reliably in harsh conditions with an industrial operating temperature range spanning from -55°C to 125°C. The device exhibits a maximum propagation delay time of 90 nanoseconds at a standard load capacitance, supporting fast switching speeds for timing-critical applications.

Output current capability includes a maximum high-level output of -4.2 milliamps and a low-level output of 4.2 milliamps, providing adequate drive strength for interfacing with other logic components. Although it does not feature Schmitt Trigger inputs, it ensures standard CMOS input characteristics, suitable for most digital circuit requirements.

The compact 14-pin PDIP package measures 19.3 mm in length and 4.57 mm in height, allowing straightforward integration on printed circuit boards with through-hole technology. Its robust construction supports reliable performance in electronic instruments, control systems, communication devices, and general laboratory electronic equipment.

This logic gate IC is ideal for use in digital logic circuits, combinational logic design, signal processing, and other semiconductor applications where OR logic functionality is necessary. It supports a broad range of supply voltages and environmental conditions, thus well suited for both commercial and industrial products.

Operates within a wide voltage range of 3 to 18 volts. Contains three OR logic gates, each with three inputs. Features a 14-pin through-hole PDIP package for easy PCB mounting. Supports a minimum operating temperature of -55°C and maximum of 125°C.

Offers a maximum propagation delay time of 90 nanoseconds at typical load capacitance. Maximum high-level output current of -4.2 mA and low-level output current of 4.2 mA. Belongs to the 4000 CMOS Logic Family ensuring low power consumption.

Compact dimensions of 19.3 mm length and 4.57 mm height. Explore more semiconductor and Logic Gate components on EnvMart for your industrial, laboratory, and electronic design needs.
