Texas Instruments Non-Inverting Schmitt Trigger Input Single Ended Buffer 5-Pin SOT-23 SN74LVC1G17DBVR

Texas Instruments SN74LVC1G17DBVR is a non-inverting Schmitt trigger input single-ended buffer designed for industrial and commercial electronic applications requiring stable signal conditioning. The device operates within a supply voltage range of 1.65 to 5.5 volts, making it compatible with low-voltage CMOS circuits.

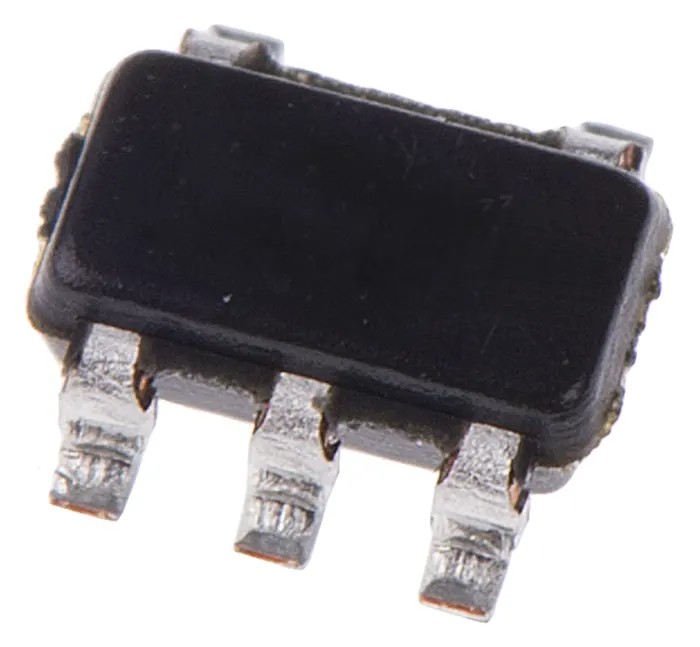

This buffer belongs to the SN74LVC1G17 family and is packaged in a 5-pin SOT-23 surface-mount form factor, offering compact size suitable for space-constrained PCBs. It features a single channel with a maximum propagation delay time of just 5 nanoseconds, enabling fast switching performance.

The input type is single-ended with Schmitt trigger hysteresis, which improves noise immunity and signal integrity in digital signal processing. Its output is single-ended and non-inverting, compatible with LVCMOS output levels. The device supports input LVTTL and TTL logic levels on the input side.

This buffer can function efficiently across an operating temperature range from -40°C to 85°C, suitable for harsh environmental conditions. Its latch-up performance exceeds 100 mA according to JESD 78 Class II standards, and electrostatic discharge protection surpasses JESD 227 specifications for enhanced device reliability.

The SN74LVC1G17DBVR features low supply current consumption of approximately -50mA, balancing performance with energy efficiency. Its compact height of 1.15 mm and length of 2.9 mm simplifies integration into modern PCB layouts.

This logic buffer is widely used in electronic, automotive, industrial automation, and instrumentation fields for buffering signals, edge detection, or hysteresis input level shifting.

Operates with a voltage supply range from 1.65V to 5.5V. Features a single channel with 5 nanoseconds maximum propagation delay time at capacitive load. Designed for surface mounting and offers non-inverting polarity performance.

Supports input LVTTL/TTL logic and output LVCMOS logic compatibility. Has a maximum operating temperature range from -40°C to 85°C for industrial applications. Compact dimensions with 2.9mm length and 1.15mm height for efficient PCB integration.

Low supply current of approximately -50mA ensures energy efficiency in circuits. Includes protection features exceeding JESD 78 and JESD 227 standards for latch-up and ESD. Suited for applications requiring a reliable buffer with Schmitt trigger hysteresis input functionality.

For designers and engineers looking for a dependable, low-voltage CMOS Schmitt trigger input buffer packaged in a compact SOT-23 case, the SN74LVC1G17DBVR offers excellent performance and reliability.
