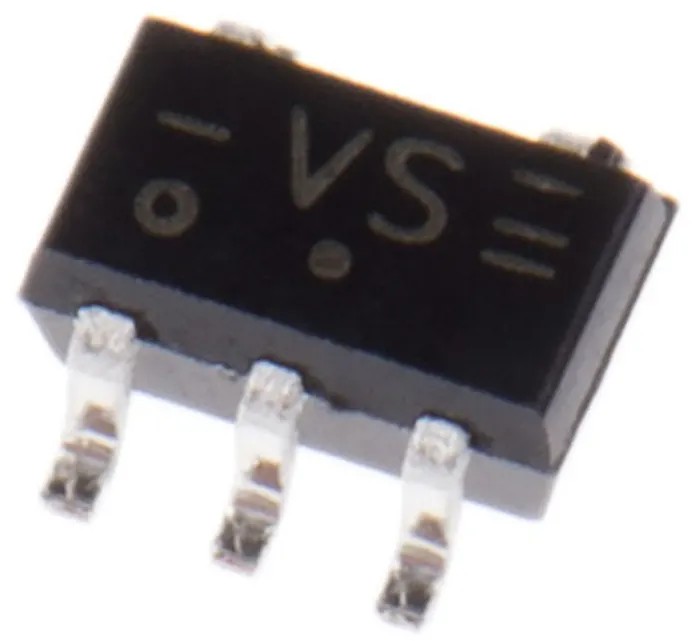

Nexperia Advanced High-Speed CMOS 5-Pin TSSOP Inverter Logic IC 4.5-5.5V 74AHCT1G04GW,125

The Nexperia 74AHCT1G04GW,125 is a single inverter logic integrated circuit that utilizes advanced high-speed CMOS technology, tailored for digital electronics applications requiring reliable inverting functions. Packaged in a 5-pin TSSOP format, measuring 2.25mm in length, 1.35mm in width, and 1mm in height, it is ideal for compact surface mount designs.

This device operates with a supply voltage range of 4.5V to 5.5V, supporting TTL input and output compatibility. It features a maximum propagation delay of 10ns, making it suitable for high-speed digital circuits.

Designed for industrial and commercial usage, it supports an operating temperature range of -40°C to 125°C, ensuring stable performance even in harsh environments. The inverter provides a maximum high-level output current of -8mA and maximum low-level output current of 8mA, fully meeting typical TTL logic current requirements.

Lacking Schmitt trigger input functionality, the 74AHCT1G04GW,125 focuses on clean basic inverter logic operations within the AHCT logic family. It does not carry specific automotive or other special standards approvals but targets a broad range of electronics and power supply design applications.

This product is useful in industrial automation, electronic component manufacturing, and embedded system development where compact size and high-speed response are critical. The low profile and surface mount package style facilitate high-density PCB layouts.

Single inverter element per chip ensuring simplicity for digital logic applications. Surface mount 5-pin TSSOP package with compact dimensions 2.25mm x 1.35mm. Operating temperature range from -40°C to 125°C suitable for industrial environments.

Fast propagation delay time of 10ns at CL with low power consumption. Maximum high-level output current is -8mA and maximum low-level output current is 8mA. Compatible with TTL input and output logic levels for ease of integration.

Advanced High-Speed CMOS logic family (AHCT) ensures high performance. Package height of 1mm enabling low-profile PCB design. No Schmitt trigger input; designed for straightforward inverter logic functions. Explore the comprehensive selection of Inverter ICs on EnvMart for reliable and high-quality semiconductor components suited to diverse electronics design needs.
