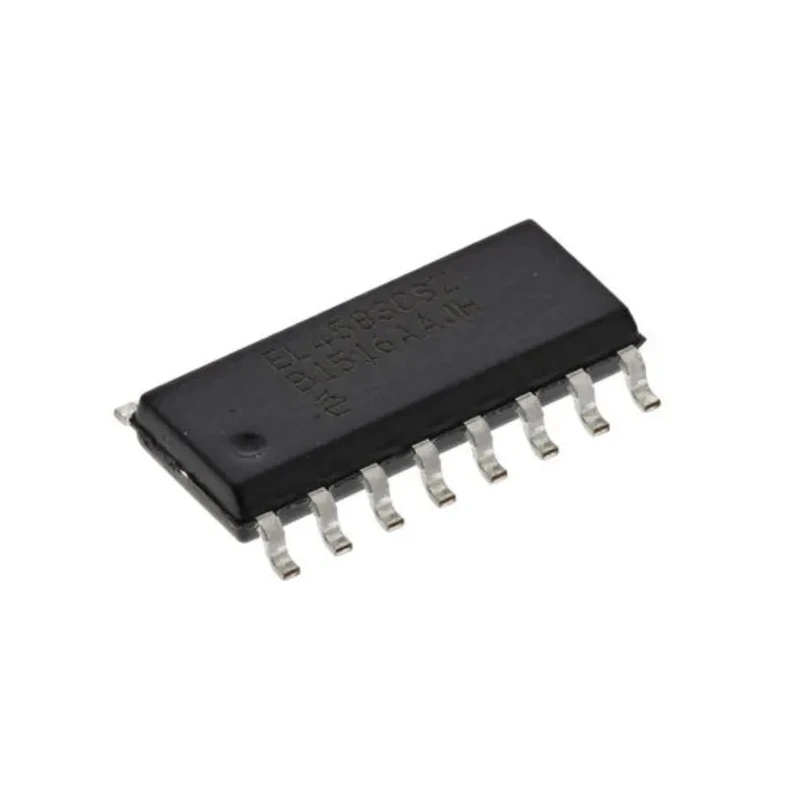

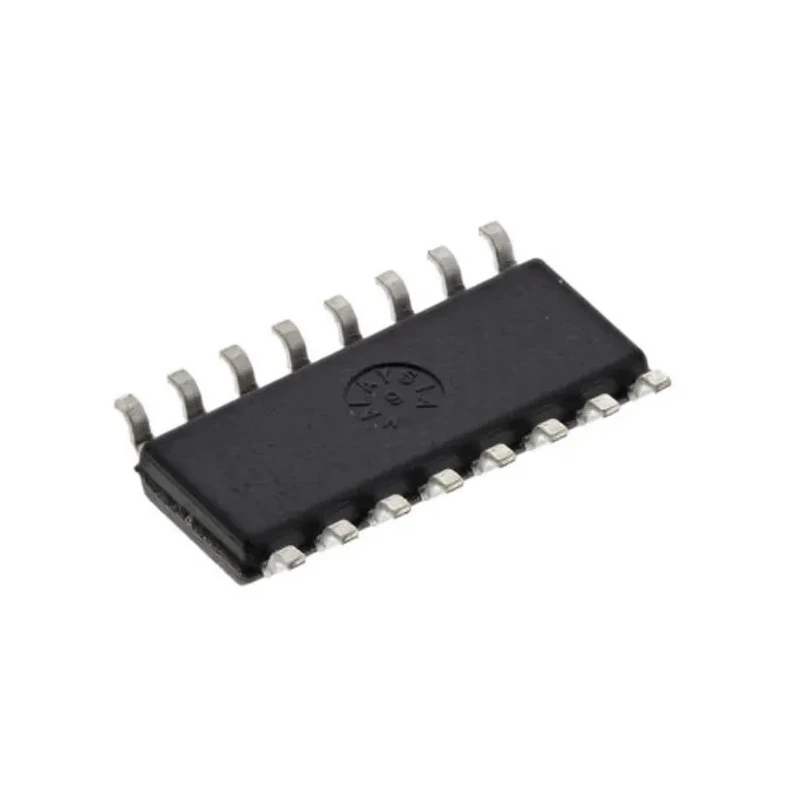

Renesas Electronics Line Transceiver CMOS/TTL Non-Inverting 16-Pin SOIC ICL3232IBNZ-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Renesas Electronics |
| Height | 2.65mm |
| Length | 10.5mm |
| Model | ICL3232IBNZ-T |
| Width | 7.6mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | ICL3232 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | TTL |
| Minimum Supply Voltage | 3V |
| Maximum Propagation Delay Time @ CL | 0.3μs |
| Supply Current | 1mA |
Key Features
- Operates at supply voltages from 3V to 5.5V.
- Features a maximum propagation delay of 0.3 microseconds at CL.
- Low supply current of 1mA for efficient power consumption.
- Operating temperature range from -40°C to 85°C, suitable for robust industrial applications.
- Compact dimensions with length 10.5mm, width 7.6mm, and height 2.65mm.
- Single-ended input type and TTL logic function tailored for RS-232 line interfacing.
- Non-inverting signal polarity ensures signal integrity in transmission.
- Compliance with no specific automotive standards; designed for general-purpose line transceiver use.
Product Description
Renesas Electronics ICL3232IBNZ-T is a highly reliable line transceiver IC designed for RS-232 communication protocols. It supports CMOS/TTL logic families and is non-inverting, making it ideal for seamless data transmission in electronic systems.
The device operates efficiently over a wide voltage range of 3 to 5.5 volts, maintaining low supply current consumption of just 1 mA. With a maximum propagation delay of 0.3 microseconds at the specified load capacitance, it provides fast and accurate signal processing necessary for industrial, manufacturing, and communication equipment.
This transceiver is constructed as a surface mountable device in a 16-pin SOIC package, measuring 10.5mm in length, 7.6mm in width, and 2.65mm in height. It supports a broad operating temperature range from -40°C to 85°C, ensuring performance stability in demanding environmental conditions.
Applications include use in line interface electronics for data communication, embedded systems, and other semiconductor-based signal conditioning circuits. While it does not comply with automotive standards, it is suited for general industrial, laboratory, and commercial electronic component assemblies.
Operates at supply voltages from 3V to 5.5V. Maximum propagation delay time of 0.3 microseconds. Low supply current of 1mA for energy efficiency. Single-ended input type with CMOS/TTL output logic. 16-pin SOIC surface mount package.
Operating temperature range of -40°C to 85°C. Compact dimensions suited for PCB integration. Non-inverting polarity for consistent signal transmission integrity. Manufactured in China with consistent quality standards. Explore the full range of Renesas Electronics semiconductors and Line Transceiver ICs for diverse industrial and electronic development needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at supply voltages ranging from 3V to 5.5V.
It features a maximum propagation delay of 0.3 microseconds at the specified load capacitance.
The supply current is low, at just 1mA, which contributes to efficient power consumption.
The operating temperature range is from -40°C to 85°C, making it suitable for robust industrial applications.
It uses a single-ended input type, which is compatible with CMOS/TTL logic families.
This unit has compact dimensions of 10.5mm in length, 7.6mm in width, and 2.65mm in height.
It is packaged in a 16-pin SOIC format, suitable for surface mounting.
This model supports TTL logic function, tailored for RS-232 line interfacing.
No, it does not comply with specific automotive standards and is designed for general-purpose use.
It features a non-inverting signal polarity, ensuring signal integrity during transmission.
It is manufactured in China, adhering to consistent quality standards.
It is suitable for line interface electronics in data communication, embedded systems, and semiconductor-based signal conditioning circuits.
