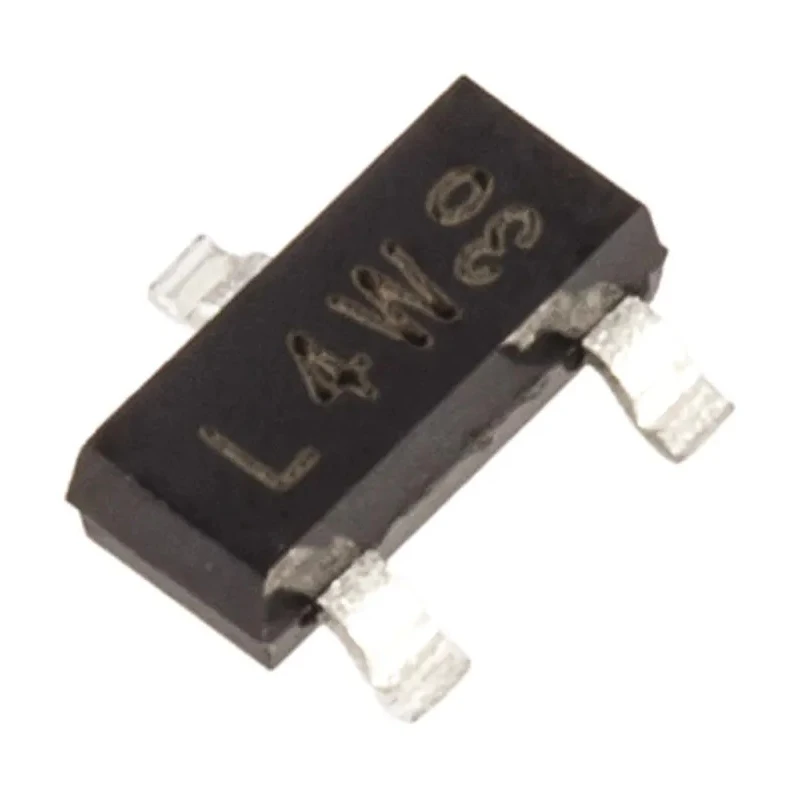

Nexperia Schottky Diode 70 V 70 mA 3-Pin SOT-23 BAS70-04,215

Nexperia BAS70-04,215 Schottky diode is a high-efficiency discrete semiconductor designed for low forward voltage drop and excellent performance in power rectification applications.

It features a compact 3-pin SOT-23 surface mount package measuring 3 mm in length, 1.4 mm in width, and 1.1 mm in height, making it suitable for space-constrained designs. This diode supports a maximum continuous forward current of 70 mA and a peak reverse repetitive voltage of 70 V, ensuring reliable operation in low voltage power circuits.

The device is rated to withstand a wide ambient temperature range from -65°C up to 150°C, meeting the AEC-Q101 standard for automotive quality and reliability.

The Schottky barrier design yields a low forward voltage of 750 mV and a very low leakage current with a peak reverse current of only 100 nA, minimizing power losses and improving efficiency in switching and rectifying applications.

Common industrial uses include automotive electronics, power supplies, voltage clamping, and signal detection circuits in commercial and industrial environments. Maximum continuous forward current of 70 mA for reliable performance.

Peak reverse repetitive voltage rating of 70 V suitable for low voltage rectification. Compact and ultra-small surface-mount SOT-23 package. AEC-Q101 automotive standard certified for robustness. Wide operating temperature range from -65°C to 150°C.

Low forward voltage drop for efficient power management. Extremely low leakage current with high switching speed. Schottky barrier for enhanced efficiency and durability. This diode is made in China and shipped in reel packaging ready for automated assembly, helping improve manufacturing efficiency.
