| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Length | 3.7mm |
| Model | TZQ5231B-GS08 |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-80 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 20mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 5.1V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 17Ω |

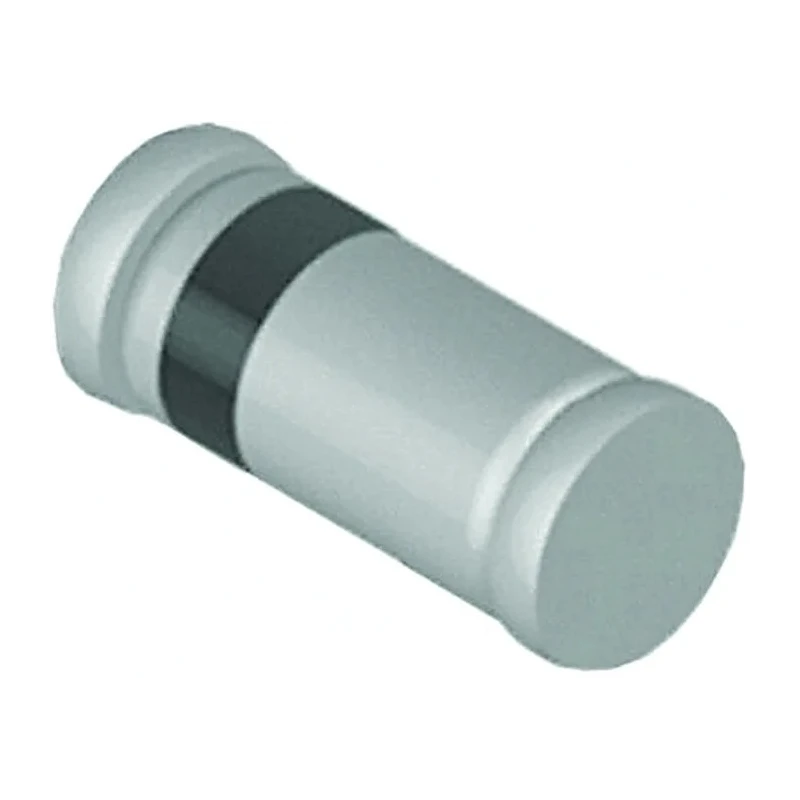

Vishay TZQ5231B-GS08 is a high-quality 5.1 V Zener diode designed for voltage regulation in electronic circuits, offering a maximum power dissipation of 500 mW in a compact SOD-80 package. This single Zener diode provides excellent stability, low noise, and a sharp reverse characteristic with low reverse current, making it ideal for industrial electronics, automotive, communications, and power supply applications.
The surface mount design with 2 pins ensures easy integration on printed circuit boards (PCBs) while maintaining a small footprint. Its operation over a wide temperature range from -65°C to 175°C and compliance with RoHS and AEC-Q101 automotive standards guarantee durability and reliability under various operating conditions.
Key specifications include a nominal Zener voltage of 5.1 V, test current of 20 mA, maximum Zener impedance of 17 Ω, and a very low maximum reverse leakage current of 5 μA, ensuring minimal power loss in sensitive circuits. The ±5% voltage tolerance and a voltage temperature coefficient of 0.03%/K add to the device's precision and thermal stability.
This diode is suited for industrial, automotive, telecommunications, and general electronic manufacturing environments requiring robust voltage regulation solutions. Its small signal handling and low noise characteristics further enhance performance in sensitive electronics equipment.
Nominal Zener voltage is 5.1 volts, suitable for voltage regulation. Single diode configuration with 2 pins for easy PCB mounting. Maximum power dissipation of 500 mW ensures reliable performance. Package type is SOD-80, compact and surface mount compatible.
Test current is 20 mA with maximum Zener impedance of 17 ohms. Operates over a temperature range from -65 °C to 175 °C. Maximum reverse leakage current is 5 microamperes to reduce power loss. Voltage tolerance is ±5% to maintain precision regulation.
Meets RoHS and AEC-Q101 automotive standards for quality and reliability. Typical voltage temperature coefficient is 0.03% per Kelvin, enhancing stability. Discover the Vishay TZQ5231B-GS08 and other electronic semiconductor components in the EnvMart catalog for your design and manufacturing needs.
