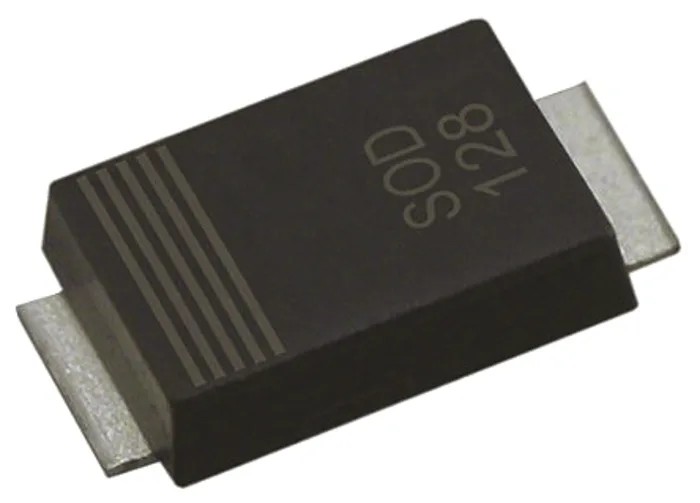

Nexperia 40 V 2 A Schottky Diode Surface Mount SOD-128 Package PMEG4020EP,115

Nexperia PMEG4020EP,115 is a high-efficiency 40 V, 2 A Schottky barrier diode in a low-profile SOD-128 surface mount package. It is optimized for low forward voltage drop and high junction temperature endurance, minimizing power dissipation and increasing overall circuit efficiency.

This diode features a maximum continuous forward current rating of 2 amperes and a peak reverse repetitive voltage of 40 volts, making it suitable for various low-voltage power management, switching power supply, and voltage clamping applications. The maximum forward voltage is 490 mV, which helps reduce conduction losses in circuits.

The device supports a wide operating temperature range from -55°C to +150°C, providing reliable performance in harsh industrial, automotive, and consumer electronics environments. Its low leakage current (100 μA) and low capacitance contribute to improved switching performance and energy efficiency.

The compact SOD-128 package dimensions (4 mm length x 2.7 mm width x 1.1 mm height) enable efficient board layout and density. The diode meets the AEC-Q101 automotive standard, ensuring quality and durability required by automotive applications.

Typical applications include power rectification, reverse polarity protection, freewheeling diodes in transistor circuits, and other roles requiring a robust Schottky diode with low forward drop and high speed switching.

Supports a maximum continuous forward current of 2 amperes. Maximum reverse voltage of 40 volts with low leakage current of 100 microamperes. Designed to operate between -55°C and 150°C. Offers a low forward voltage of 490 millivolts for reduced power loss.

Compact dimensions of 4 mm length, 2.7 mm width, and 1.1 mm height enable space-saving PCB layouts. Complies with AEC-Q101 automotive standard for reliability. Peak non-repetitive forward surge current rating of 50 amperes.

Ideal for use in power rectification, freewheeling, and reverse polarity protection applications. Explore more semiconductor and diode components within EnvMart's extensive industrial electronics catalog for your design and manufacturing needs.
