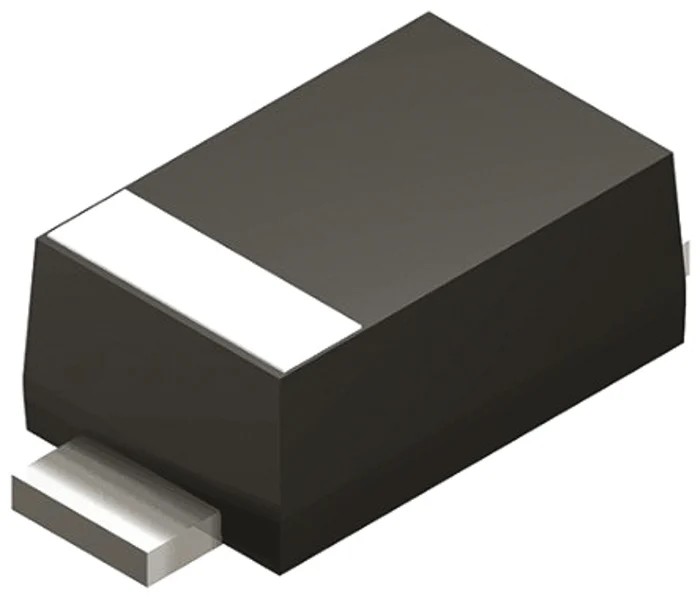

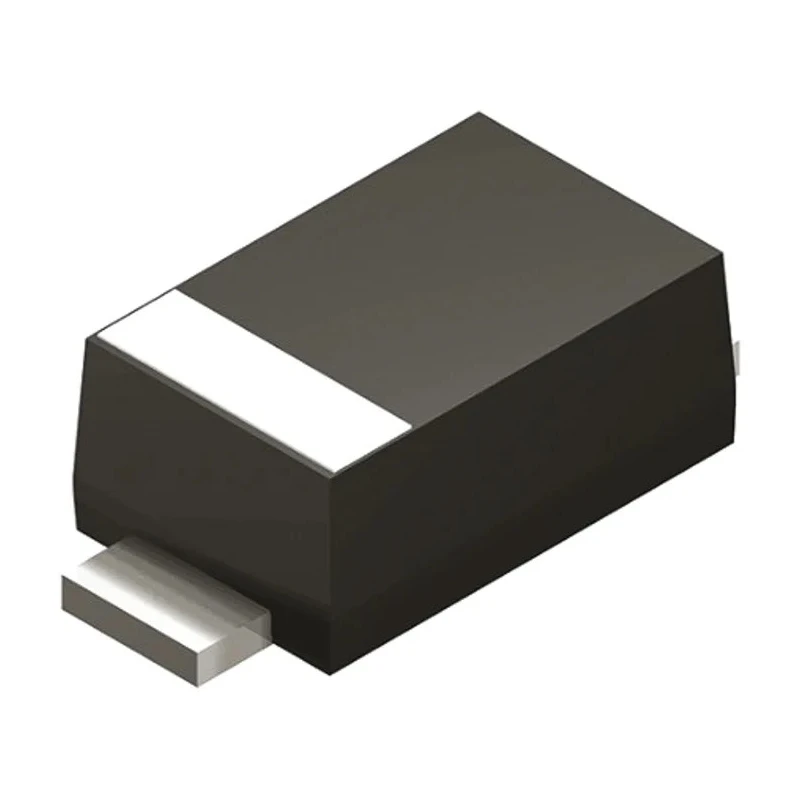

Nexperia Schottky Barrier Diode 30 V 2 A Surface Mount SOD-123 Package PMEG3020BER,115

Nexperia PMEG3020BER,115 Schottky Barrier Diode is a high performance semiconductor device rated for a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 30 V. Packaged in a durable SOD-123 surface mount package, this diode is optimized for low forward voltage drop and high junction temperature, offering improved efficiency and reliability for electronic circuit designs.

The diode's low voltage drop of 520 mV and very low leakage current make it suitable for power-sensitive applications requiring minimal losses. The device withstands peak surge currents up to 50 A and operates across a broad ambient temperature range from -55°C to 150°C, ensuring versatility in various industrial and automotive environments.

The compact package with dimensions 2.8 mm by 1.9 mm by 1.1 mm height enables high-density PCB assembly, especially for space-constrained applications. It conforms to the automotive standard AEC-Q101, confirming its suitability for automotive electronics use cases such as power management and protection.

Key features include ultra-small low-profile packaging, low junction capacitance, and negligible power switching losses, ideal for efficient rectification in power supplies and DC-DC converters.

This diode features high efficiency and low forward voltage drop of 520 mV. It is designed for surface mount applications with a low-profile 1.1 mm height. The device supports a peak non-repetitive surge current of 50 A.

Operates reliably from a minimum temperature of -55°C up to 150°C maximum. Low leakage current and low capacitance contribute to superior switching performance. Complies with automotive standard AEC-Q101 ensuring robustness in automotive environments.

Package dimensions are 2.8 mm length by 1.9 mm width, facilitating compact PCB layouts.

This Schottky diode is widely applicable in industrial electronics, power conversion, automotive electronic systems, manufacturing equipment, and laboratory test instruments. It is especially useful in circuits requiring fast switching and low forward voltage losses.
