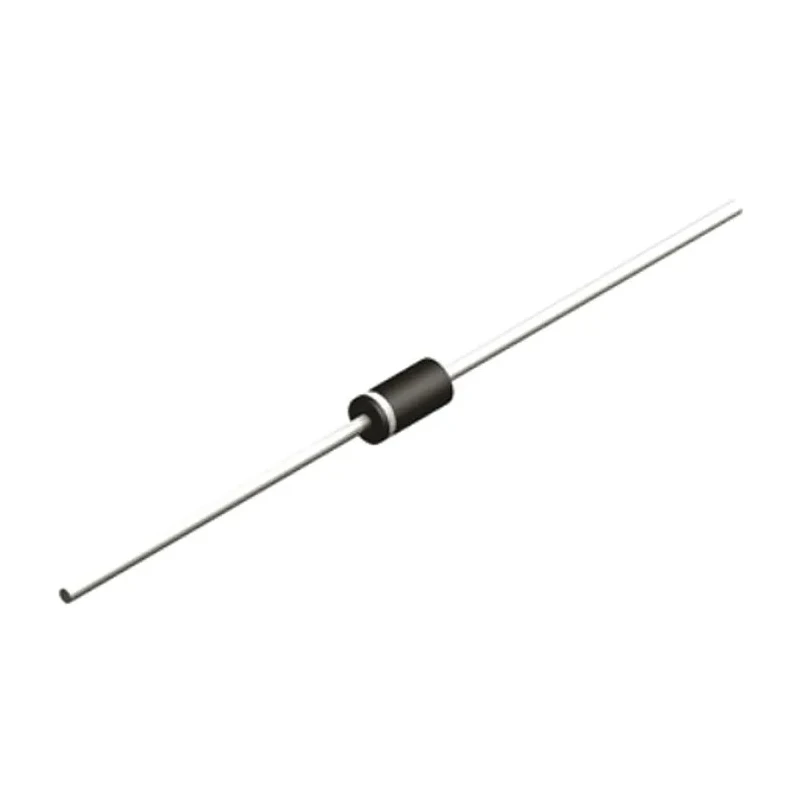

Vishay Zener Diode Single 27V 1.3W 5% Tolerance Through Hole 2-Pin DO-41 ZPY27-TR

Vishay ZPY27-TR is a single-element Zener diode packaged in a DO-41 through-hole package with two pins, designed for precise voltage regulation and clipping in electronic circuits. With a nominal Zener voltage of 27 V and a power dissipation capacity of 1.3 W, this general-purpose diode is constructed with silicon planar technology to deliver reliable performance in a variety of industrial, manufacturing, and electronics applications.

The diode offers a Zener voltage tolerance of ±5%, ensuring stable voltage regulation within circuits requiring consistent voltage levels. It operates efficiently within a temperature range from -55°C to 175°C, making it suitable for harsh industrial environments and electronic devices exposed to temperature variations.

Featuring a maximum reverse leakage current of 500 nA and a maximum Zener impedance of 15 Ω, the ZPY27-TR minimizes leakage and maintains signal integrity. Its 4.1 mm length DO-41 package facilitates easy mounting on printed circuit boards, optimizing assembly and maintenance processes in equipment manufacturing.

This diode is widely used for stabilizing and clipping purposes in power supplies, voltage regulators, and surge protectors within industrial and laboratory electronic setups. The component is compliant with standard manufacturing and quality protocols, though it does not have additional certifications listed.

Package contents consist of a single Vishay ZPY27-TR general-purpose Zener diode with specifications tuned for reliable operation under various electrical and environmental stresses. The diode is manufactured in China and is supplied new to ensure consistent quality and performance.

This Zener diode provides 5% voltage tolerance for precise regulation. It features a maximum power dissipation of 1.3 watts suitable for stabilizing circuits. The diode has a small silicon planar construction for reliable performance.

Operating temperature ranges from -55°C to 175°C, suitable for various industrial applications. Maximum reverse leakage current is low, at 500 nA, ensuring minimal leakage. Available in through-hole DO-41 package with a 4.1 mm length for easy PCB mounting.

The nominal Zener voltage of 27 V is ideal for voltage clipping and stabilizing circuitry. This diode is designed for general purpose Zener applications. Test current for the diode is 25 mA, with a maximum Zener impedance of 15 Ω.

Originating from China, it maintains high-quality manufacturing standards.

Explore the extensive range of semiconductor components available at EnvMart to meet your electronics assembly and design requirements. Vishay’s ZPY27-TR diode is an ideal choice for applications needing reliable voltage regulation in industrial, manufacturing, and electronic circuit environments.
