| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | 1N5234B-TR |
| Mount Type | Through Hole |
| Series | 1N5234B |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 20mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 6.2V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 7Ω |

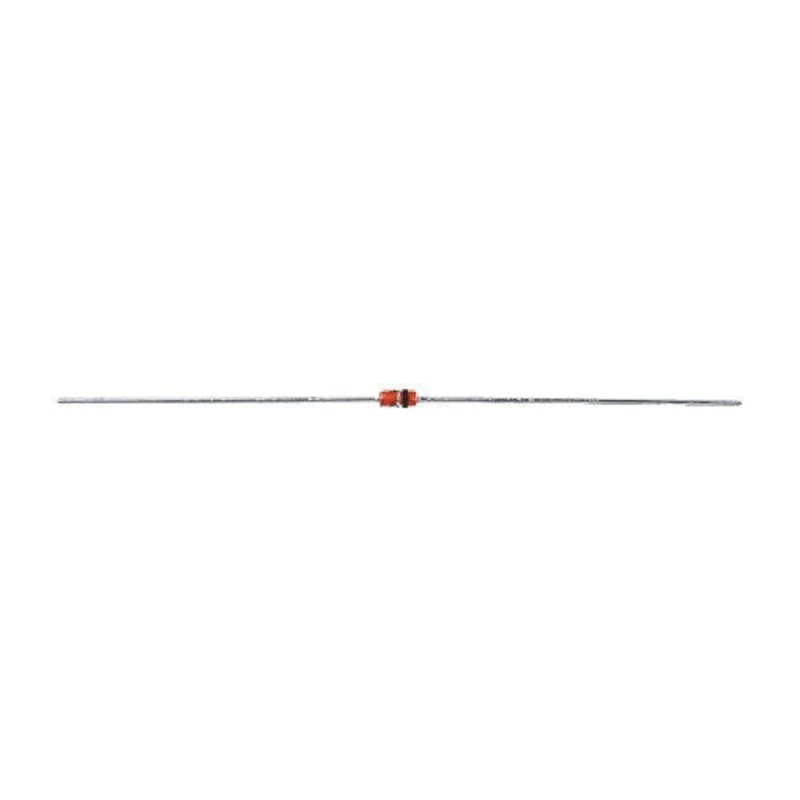

Vishay 1N5234B-TR is a single Zener diode designed for voltage regulation and protection applications. This diode features a nominal Zener voltage of 6.2 V and a maximum power dissipation of 500 mW, making it suitable for low-power electrical circuits requiring stable voltage reference.
The diode is housed in a through hole 2-pin SOD-27 package, facilitating easy and reliable mounting on printed circuit boards. With a maximum reverse leakage current of only 5 microamperes and a Zener impedance of 7 ohms, this component ensures efficient voltage clamping and minimal power loss under operating conditions.
Operating at temperatures up to 175°C, the diode meets automotive standard AEC-Q101, demonstrating suitability for automotive and other demanding industrial environments.
The compact size, with a length of 3.9 mm and height of 1.7 mm, enables integration in space-constrained electronic assemblies, making it ideal for discrete semiconductor roles in power and connector modules.
Key features include its robust construction, tight voltage tolerance of ±5%, and standardized pin count of 2 for compatibility with various circuit designs. This Zener diode is widely used in industrial electronics, automotive electronics, telecommunications, and power management systems where precise voltage regulation is critical.
Nominal Zener voltage of 6.2 volts for stable voltage regulation. Maximum power dissipation rating of 500 milliwatts. Through hole mounting type with 2-pin SOD-27 package for easy PCB installation. Zener impedance up to 7 ohms ensuring reliable voltage clamping.
Test current specified at 20 mA for accurate performance testing. Maximum reverse leakage current limited to 5 microamperes to reduce losses. Operating temperature range up to 175 degrees Celsius for robust industrial use.
Automotive standard compliant (AEC-Q101) indicating high reliability. Compact dimensions: length 3.9 mm and height 1.7 mm. Single diode configuration designed for discrete semiconductor applications. Explore more in our Electronics & Electricals collections for semiconductors and discrete electronic components.
