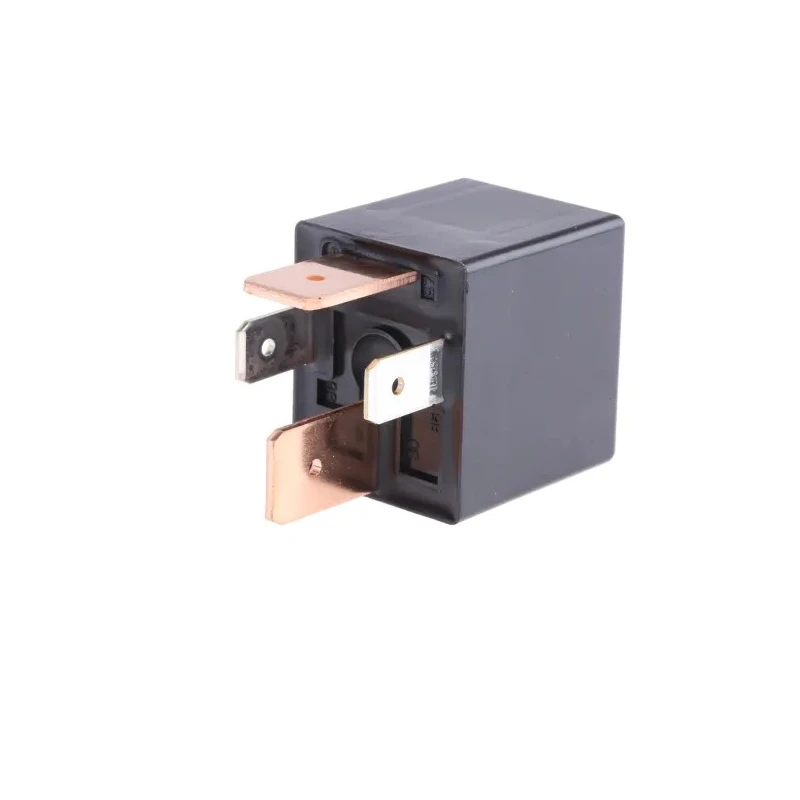

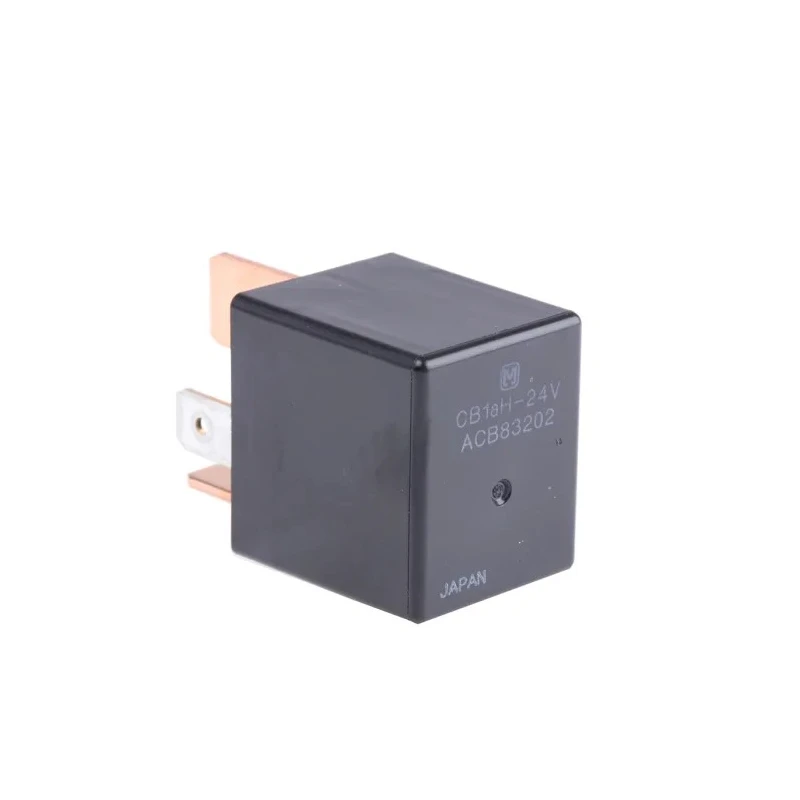

Panasonic PCB Automotive Relay 24V DC Coil Voltage 20A Switching Current SPST CB1AH-24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 25.5mm |
| Length | 26.5mm |
| Model | CB1AH-24V |
| Depth | 22mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | CB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 320Ω |
| Coil Power | 1.8W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Features single pole single throw (SPST) contact configuration.
- Compact PCB mount type with Mini-ISO terminal arrangement.
- Coil power rating is 1.8W with 320Ω coil resistance.
- Operates reliably between -40°C to 85°C ambient temperature.
- Silver alloy contact material ensures excellent conductivity and durability.
- Isolation coil to contact withstands 500 Vrms for safe operation.
- High switching capacity suitable for demanding automotive controls.
- Compact dimensions of 26.5 mm length, 25.5 mm height, and 22 mm depth.
Product Description
Panasonic CB1AH-24V PCB Automotive Relay is designed for high power switching applications in automobiles, construction, and agricultural equipment. Featuring a 24V DC coil voltage and a robust 20A switching current capability, this relay delivers reliable performance in harsh environmental conditions.
Its compact design with a Mini-ISO terminal arrangement fits efficiently on PCB layouts, saving valuable space. The relay operates within a wide temperature range from -40°C to 85°C, maintaining consistent electrical characteristics and longevity. The silver alloy contacts provide superior conductivity and high thermal resistance, reducing contact wear and temperature rise during operation.
The coil resistance of 320Ω and coil power of 1.8W ensure low power consumption while providing strong electromagnetic force for fast switching. The isolation between coil and contacts withstands 500 Vrms, ensuring safety and signal integrity in automotive electrical systems.
This relay series is recognized for its compact size and high switching capability, making it suitable for industrial, automotive, HVAC, and manufacturing use cases where compact and durable electromagnetic relays are required.
Key features include a single pole single throw (SPST) contact configuration, quick connect terminal types, and a PCB mount making installation straightforward. The product is made in Japan, assuring high quality and reliability standards.
Features single pole single throw (SPST) contact configuration. Compact PCB mount type with Mini-ISO terminal arrangement. Coil power rating is 1.8W with 320Ω coil resistance. Operates reliably between -40°C to 85°C ambient temperature.
Silver alloy contact material ensures excellent conductivity and durability. Isolation coil to contact withstands 500 Vrms for safe operation. High switching capacity suitable for demanding automotive controls. Compact dimensions of 26.5 mm length, 25.5 mm height, and 22 mm depth.
Explore more Panasonic relays and automotive electrical components in the Electronics & Electricals category at EnvMart.
Explore more products in our Automotive Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It has a maximum switching current of 20A.
This relay features a single pole single throw (SPST) contact configuration.
The dimensions are 26.5 mm in length, 25.5 mm in height, and 22 mm in depth.
The coil resistance is 320Ω.
It operates reliably between -40°C to 85°C.
The isolation voltage between the coil and contacts withstands 500 Vrms.
It uses a quick connect terminal type.
The contacts are made from silver alloy, ensuring excellent conductivity.
The coil power rating is 1.8W.
It is suitable for high power switching applications in automobiles, construction, and agricultural equipment.
This relay is manufactured in Japan.
