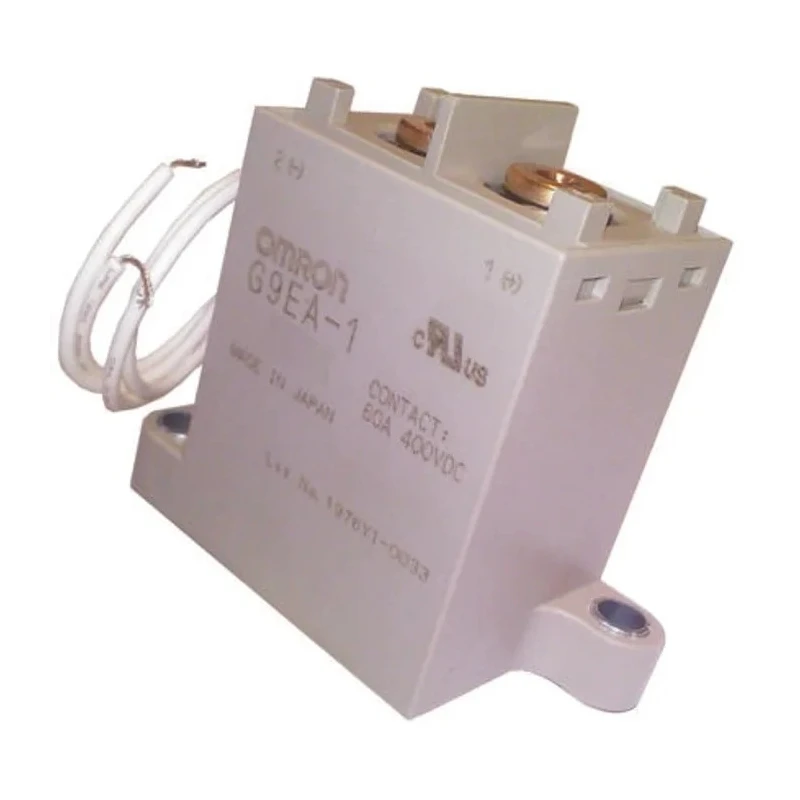

Omron Power Relay 12V DC Coil, 100A Switching Current, SPST Surface Mount G9EA-1 DC12
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 67.2mm |
| Length | 73mm |
| Model | G9EA-1 DC12 |
| Width | 36mm |
| Mount Type | Surface |
| Series | G9EA |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 100A |
| Terminal type | Screw |
| Contact Resistance | 30mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 28.8Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 400V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 5W |
Key Features
- Designed for high-capacity DC load interruption in compact, low-noise applications.
- Gas injected hermetically sealed construction ensuring reliability.
- Capable of switching 400V DC and 400V AC voltages, with high contact durability.
- Features screw terminal type and surface mount installation.
- Wide operating temperature range from -40°C to 70°C for robust performance.
- Low contact resistance of 30mΩ for efficient electrical conduction.
- Compact dimensions of Length 73 mm, Width 36 mm, Height 67.2 mm.
- Coil resistance of 28.8Ω and coil power rating of 5W.
Product Description
Omron G9EA-1 DC12 power relay is engineered for industrial and commercial applications requiring reliable switching of high DC currents. This relay utilizes a 12V DC coil and features a SPST (Single-Pole Single-Throw) contact configuration suitable for surface mounting. It excels in interrupting high capacity DC loads while maintaining a compact and low-noise operation.
The relay’s gas-injected, hermetically sealed construction ensures safe and durable performance even in demanding environments. It is capable of switching voltages up to 400V DC and 400V AC, supporting a maximum switching current of 100A, making it ideal for industrial automation, electrical control panels, and manufacturing equipment.
Operating within a temperature range of -40°C to 70°C, this relay maintains stability and reliability in diverse environmental conditions. Its screw terminal design facilitates secure connections, and the compact form factor with dimensions 73 mm length, 36 mm width, and 67.2 mm height fits efficiently into control systems.
Designed for compact, safe, and low-noise switching. High DC load interruption capacity up to 60A and momentary withstand up to 600A at 300V DC max. UL and CSA recognized standards ensure product quality and safety. Suitable for industrial automation, electrical equipment, HVAC, manufacturing, and power distribution uses.
Gas injection technology enhances contact reliability and prolongs relay life.
This Omron power relay offers a robust solution for engineers and system integrators seeking high-performance switching components for automated and manual control in electrical circuits. It supports efficient production workflows by enabling reliable electrical switching in demanding industrial environments.
Explore the Omron range of Power Relays and other electrical components at EnvMart for reliable and quality industrial solutions tailored to modern manufacturing, laboratory, and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this power relay is 100A.
The coil voltage of the G9EA-1 DC12 is 12V DC.
This relay has dimensions of 73 mm in length, 36 mm in width, and 67.2 mm in height.
This model features a Single-Pole Single-Throw (SPST) contact configuration.
It is capable of switching voltages up to 400V DC and 400V AC.
The operating temperature range for this relay is from -40°C to 70°C.
This relay features screw terminals for secure connections.
The contact resistance of this power relay is 30mΩ.
The coil resistance of the G9EA-1 DC12 is 28.8Ω.
The coil power rating is 5W.
This relay is recognized under UL and CSA standards.
The relay is designed for surface mounting.
