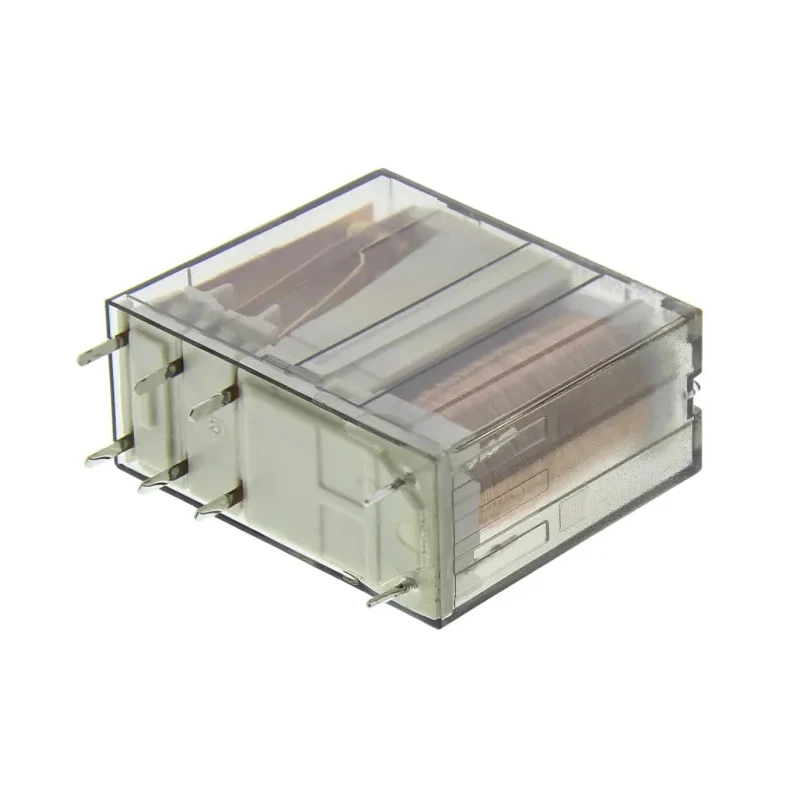

TE Connectivity PCB Power Relay, 12V DC Coil, 8A Switching Current, DPDT RP421012
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 25.5mm |
| Operating Temperature Range | -40 to +70°C |
| Length | 29mm |
| Model | RP421012 |
| Width | 12.6mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RPII |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 270Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 500mW |
| Creepage and clearance | 8mm |
Key Features
- RPII series relay with 500 mW coil power ensures efficient operation.
- Designed for PCB mounting with solder terminal type.
- Operating temperature range from -40°C to +70°C for versatility.
- Silver alloy contact material provides durable electrical conductivity.
- Switching AC voltage rated up to 400V AC and power handling of 2 kVA.

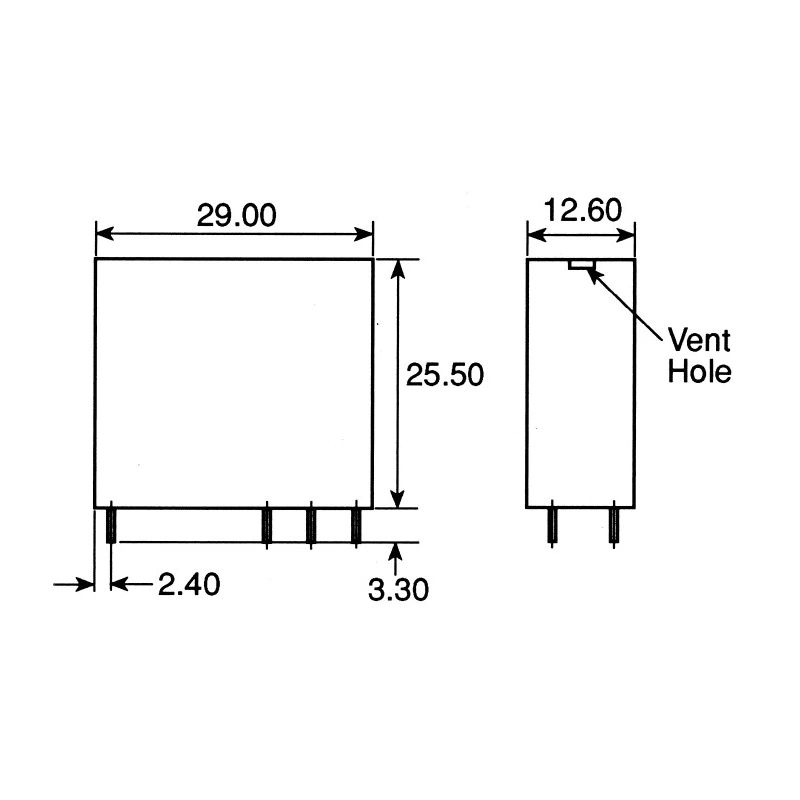

- Compact dimensions of 29mm length, 12.6mm width, and 25.5mm height.
- Creepage and clearance distance of 8mm enhances safety and reliability.
- Suitable for power supply, domestic equipment, and heating control applications.
Product Description
TE Connectivity RP421012 is a PCB Power Relay from the reliable RPII series, featuring a 12V DC coil voltage and 8A switching current in a DPDT contact configuration. It is designed for solder terminal PCB mounting, offering a coil power consumption of 500 mW for energy efficiency.
The relay operates across a broad temperature range from -40°C to +70°C, making it suitable for various industrial and domestic applications including power supplies and heating controls. Its contact material is silver alloy, enhancing both conductivity and durability.
With a compact form factor measuring 29mm in length, 12.6mm in width, and 25.5mm in height, the relay supports switching AC voltages up to 400V and power ratings of 2 kVA. The 8mm creepage and clearance distances provide safe electrical isolation for demanding environments.
These power relays comply with RoHS standards, ensuring environmentally responsible manufacturing practices. Applications cover industrial, domestic, automation, and HVAC use cases where reliable power relay operation is critical.
RPII series relay with 500 mW coil power consumption. 12V DC coil voltage with DPDT contact configuration. Maximum switching current of 8A and switching AC voltage up to 400V. Compact PCB mount with solder terminals. Wide operating temperature range from -40°C to +70°C.
Silver alloy contacts for long-term durability. 8mm creepage and clearance for enhanced electrical safety. RoHS compliant for environmental standards. Ideal for power supply, domestic, heating control, and automation applications.
Explore more TE Connectivity Power Relays and related electronics in the EnvMart Industrial Electronics category for precise, reliable component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
This model has a maximum switching current of 8A.
It is rated for switching AC voltages up to 400V AC.
The relay measures 29mm in length, 12.6mm in width, and 25.5mm in height.
It operates within a temperature range of -40°C to +70°C.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The coil power consumption is 500 mW.
The contact material is silver alloy, which enhances conductivity and durability.

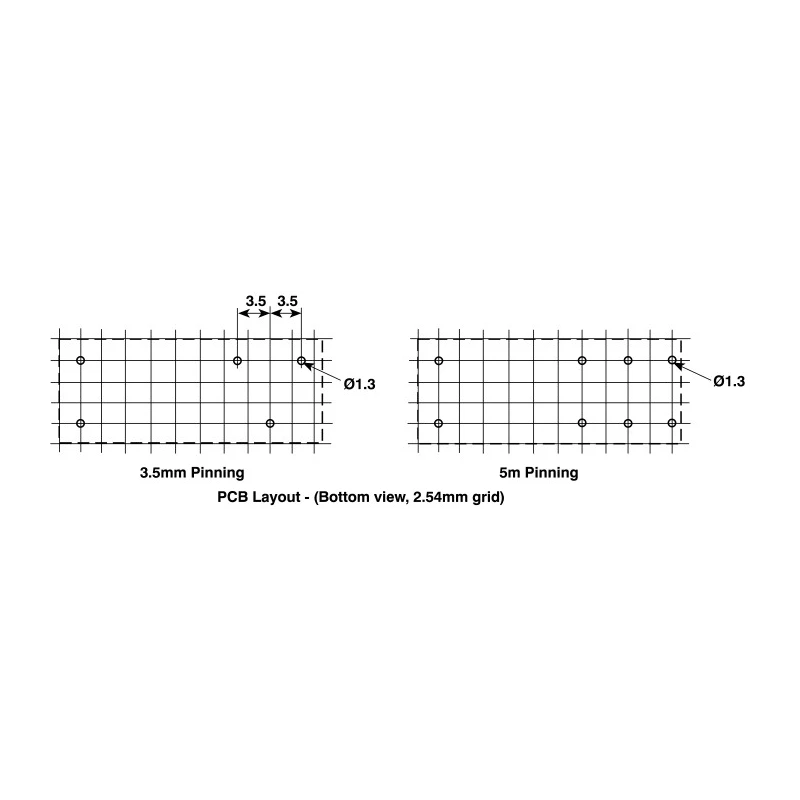

It is designed for PCB mounting with solder terminals.
It has an 8mm creepage and clearance distance, enhancing electrical safety and reliability.
Yes, it is RoHS compliant, ensuring environmentally responsible manufacturing practices.
It is suitable for various applications including power supply, domestic equipment, and heating control.
