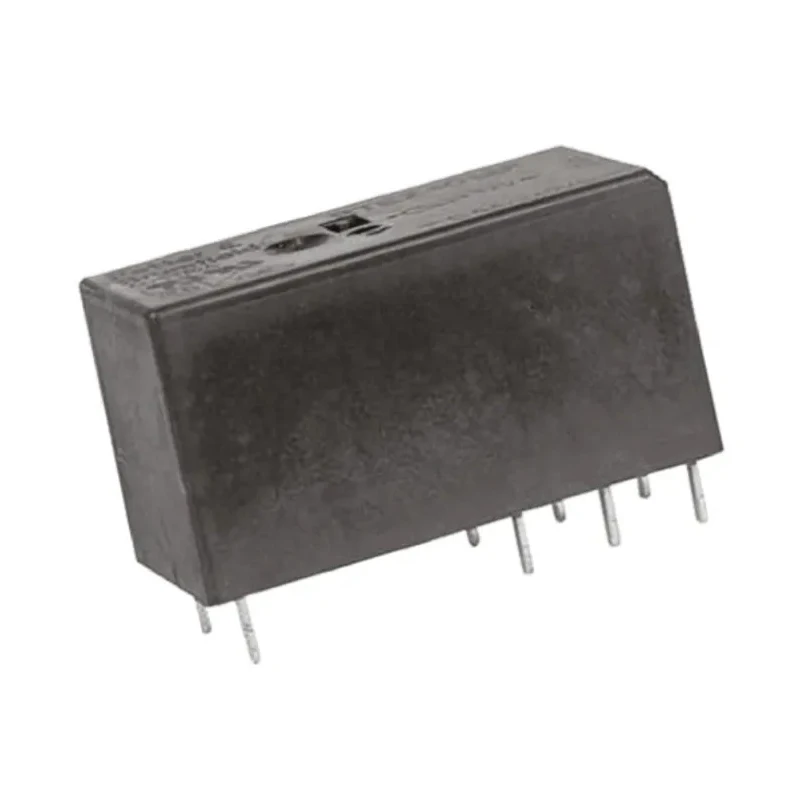

TE Connectivity Power Relay PCB Mount DPDT 24V DC Coil 8A Switching Current RTE24024F
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTE24024F |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | UR, UL, CSA |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
| Switching Power | 400mW |
Key Features
- Designed for PCB mounting with solderable terminals.
- Dual Pole Double Throw (DPDT) contact configuration provides versatile switching.
- Operates reliably in temperatures from -45°C to 85°C.
- Coil resistance of 1.4 kΩ with coil power consumption of 400 mW.
- Switching capacity of up to 8 Amps at 400 V AC and 400 mW coil power.
- Contact material composed of silver nickel alloy ensures durability and conductivity.
- Conforms to UL, CSA, and UR standards for safety and quality assurance.
- Applicable for automation, interface, heating systems, security lighting, and domestic use.
Product Description
TE Connectivity RTE24024F is a high-quality PCB mount power relay featuring a 24V DC coil and DPDT (Double Pole Double Throw) contact configuration capable of switching currents up to 8 Amps. This RT2 series relay offers reliable performance with a coil resistance of 1.4 kΩ and coil power consumption of only 400 mW, ensuring energy-efficient operation.
With dimensions of 29 mm length, 15.7 mm height, and 12.7 mm width, this compact relay fits standard PCB layouts. The contact material is a robust silver nickel alloy, providing excellent conductivity and long service life. It supports switching AC voltages up to 400 V, suitable for a variety of industrial and commercial applications.
Operating temperature range from -45°C to 85°C allows deployment in harsh environments. The relay is compliant with UL, CSA, and UR safety standards, offering assurance for critical electrical and automation tasks.
Widely used in automation systems, interface circuits, heating controls, security lighting, and domestic applications, the RTE24024F ensures effective switching with reliable isolation.
PCB mounting with 5 mm pinning and solder terminal type for secure installation. Coil insulation system meets UL class F standards, enhancing durability. Flux proof design contributes to long-term reliability. Creepage and clearance distances of 10/10 mm maintain electrical safety.
Part of TE Connectivity's RT series known for precision and performance. This Power Relay is an excellent choice for engineers and technicians requiring robust and efficient switching components in electronic and electrical systems.
Explore our comprehensive electronic components catalog to find compatible products and accessories for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this power relay is 8 Amps.
The coil voltage for this model is 24V DC.
This relay features a Dual Pole Double Throw (DPDT) contact configuration.
The dimensions of this relay are 29 mm in length, 15.7 mm in height, and 12.7 mm in width.
The operating temperature range for this relay is from -45°C to 85°C.
This model uses solder terminals for secure installation.
The coil resistance of this relay is 1.4 kΩ.
This relay complies with UR, UL, and CSA safety standards.
The coil power consumption of this relay is 400 mW.
The contact material is a silver nickel alloy, providing good conductivity.
This relay can be used in automation, interface circuits, heating controls, security lighting, and domestic applications.
The maximum switching voltage for this relay is 400V AC.
