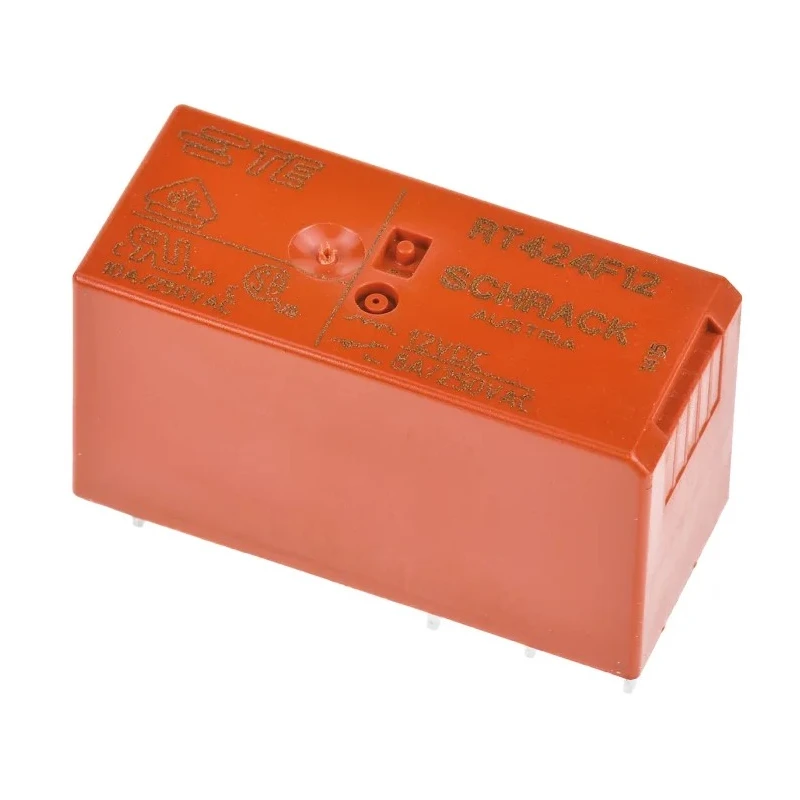

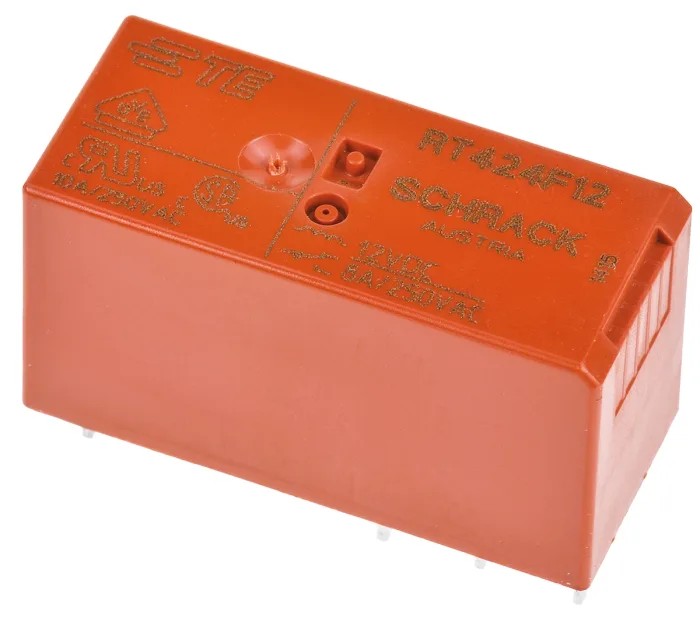

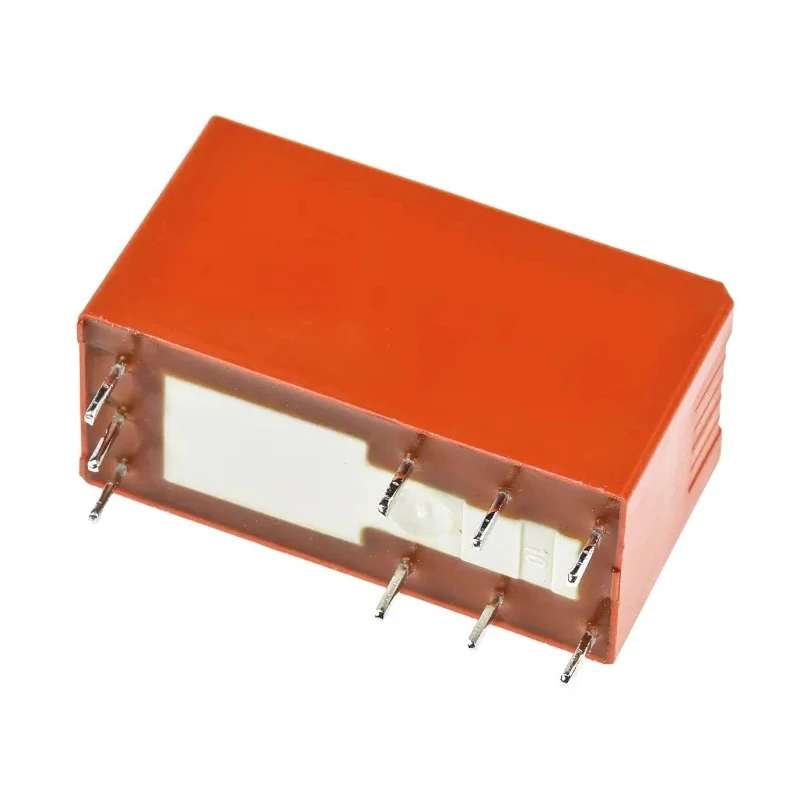

TE Connectivity PCB Power Relay 12V DC Coil 15A Switching Current DPDT RT424F12
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424F12 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 15A |
| Terminal type | Solder |
| Standards/Approvals | EN, VDE, UL, RoHS, REACH, IEC |
| Coil Resistance | 240Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 600mW |
Key Features
- This power relay is mounted on PCB and uses solder terminal type for secure connections.
- The relay coil operates at 12V DC with a resistance of 240Ω and consumes 600mW of coil power.
- It supports switching AC voltage up to 400V AC with a maximum switching power of 2kVA.
- Operating temperature ranges from -40°C to 85°C, suited for industrial environments.
- Silver alloy contact material ensures reliable electrical performance and durability.
- Complies with EN, VDE, UL, RoHS, REACH, and IEC standards for quality assurance.
- Compact dimensions with length 29mm, width 12.7mm, and height 15.7mm fit space-restricted PCB layouts.
Product Description
TE Connectivity RT424F12 PCB Power Relay is designed for efficient power switching applications on printed circuit boards. Featuring a 12V DC coil and double-pole double-throw (DPDT) contact configuration, this relay supports a switching current of 15A, making it suitable for demanding industrial, automation, and control system environments.
The relay's coil resistance is precisely 240Ω, consuming a low coil power of 600mW, which ensures energy efficiency during operation. It is designed to switch loads up to 400V AC and 2kVA, making it ideal for controlling AC circuits requiring high reliability.
Its robust design supports wide operating temperature ranges from -40°C to 85°C and includes silver alloy contacts that deliver excellent electrical conductivity and durability for heavy usage. The relay’s compact size - 29mm length, 12.7mm width, and 15.7mm height - allows easy integration into space-constrained PCB assemblies with solder-type terminals for secure mounting.
Applications include industrial automation, control panels, power management circuits, and equipment requiring reliable and efficient switching solutions. The RT424F12 series bistable and latching relay design also offers shock resistance and reinforced insulation, enhancing operational stability in harsh industrial conditions.
PCB mounted power relay with DPDT contact configuration. Operates at 12V DC coil voltage, 600mW coil power, and 240Ω coil resistance. Supports up to 15A switching current and 400V AC switching voltage. Operating temperature range from -40°C to 85°C.
Silver alloy contacts for durability and performance. Compact dimensions: 29mm x 12.7mm x 15.7mm. Meets EN, VDE, UL, RoHS, REACH, IEC standards. For reliable Power Relay solutions within industrial automation and electrical circuitry, explore the full range of TE Connectivity products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
It supports a maximum switching current of 15A.
The relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
The operating temperature range is from -40°C to 85°C.
It features a double-pole double-throw (DPDT) contact configuration.
The coil resistance is 240Ω.
It can switch AC voltage up to 400V AC.
The contacts are made of silver alloy, which ensures reliable electrical performance.
The coil consumes 600mW of power during operation.
It complies with EN, VDE, UL, RoHS, REACH, and IEC standards.
It uses solder terminals for secure connections on the PCB.
It is suitable for industrial automation, control panels, and power management circuits.
