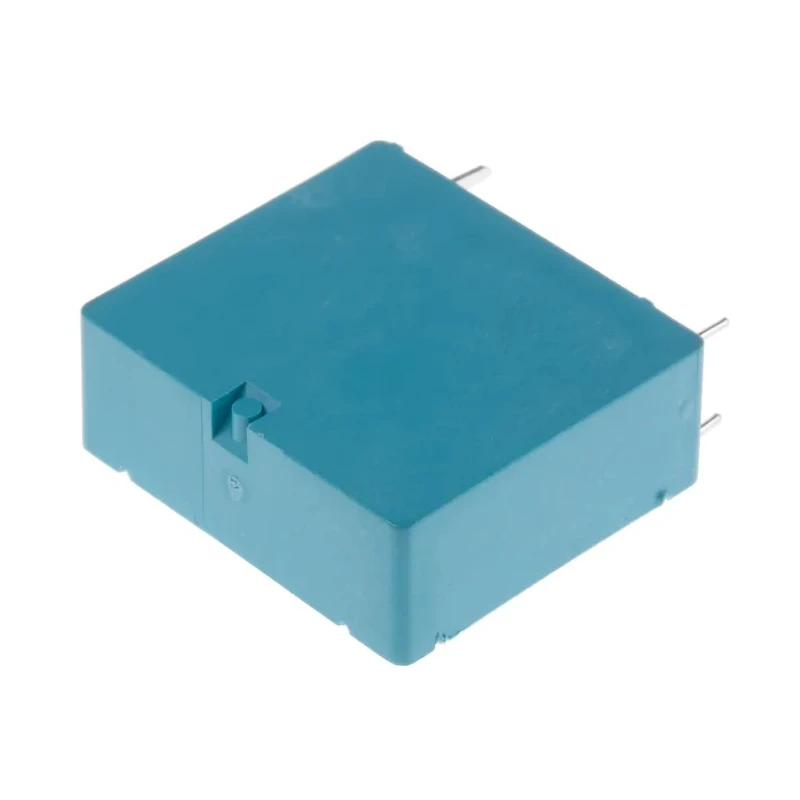

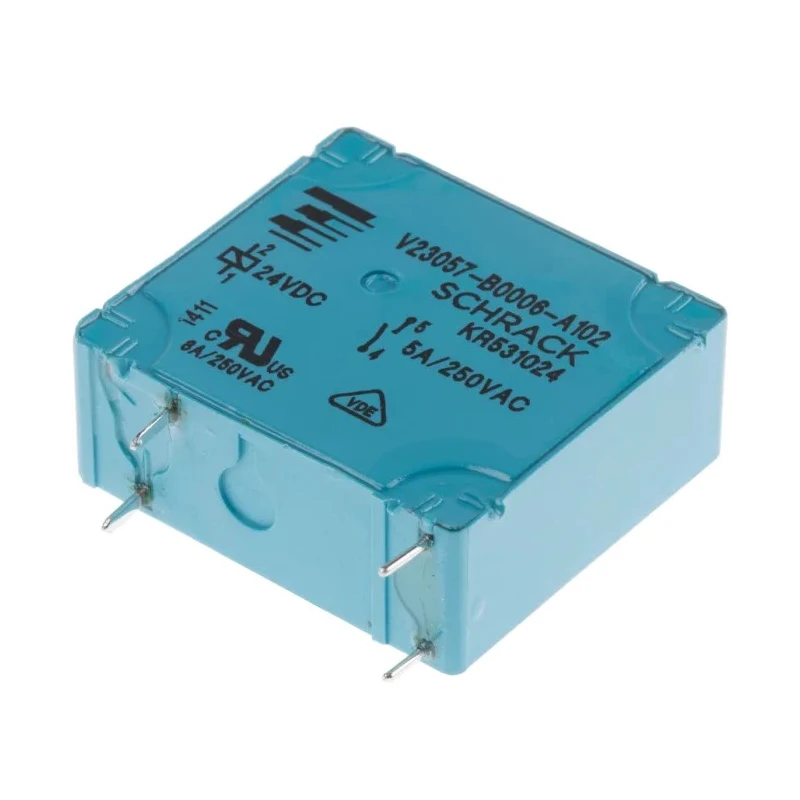

TE Connectivity PCB Power Relay 24V dc Coil 5A Switching Current SPST V23057B6A102
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 25.1mm |
| Length | 28mm |
| Model | V23057B6A102 |
| Width | 10.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | Card E |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | IEC 61810, RoHS compliant (Directive 2011/65/EC), UL E214025, VDE Cert. No. 5146 |
| Coil Resistance | 1.2kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 480mW |
Key Features
- Coil voltage rated at 24V direct current.
- Single Pole Single Throw (SPST) contact configuration.
- Designed for PCB mounting with solder terminal type.
- Supports a maximum switching current of 5 amperes.
- Operates reliably between -40°C to 70°C temperatures.
- Features a coil resistance of 1.2 kiloohms and coil power of 480 milliwatts.

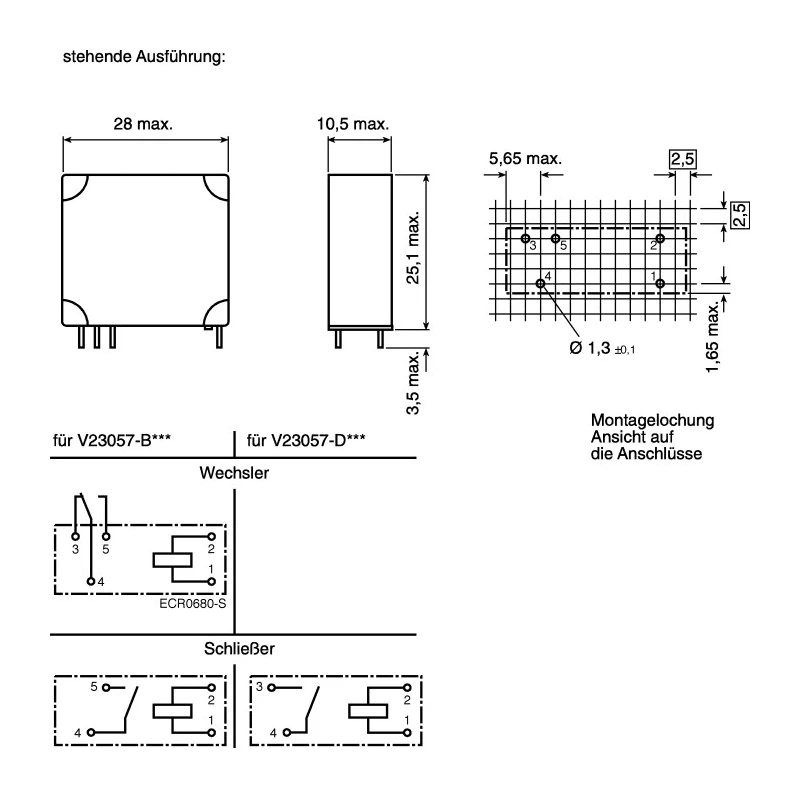

- Compact size with dimensions approximately 28mm length, 10.4mm width, and 25.1mm height.
- Switching AC voltage up to 400V and switching power rated at 2kVA.
Product Description
TE Connectivity V23057B6A102 PCB Power Relay is a high-quality power relay designed for precise control of electrical circuits with a 24V dc coil and 5A switching current capacity. It features a Single Pole Single Throw (SPST) contact configuration, making it ideal for applications requiring simple on/off switching on printed circuit boards.
This relay supports PCB mounting with solder terminal connections, ensuring easy installation and secure electrical contact. Its coil resistance is 1.2 kiloohms, consuming 480 milliwatts of coil power, optimized for energy efficiency in automation and electrical control systems.
The relay operates reliably within a temperature range of -40°C to 70°C, suitable for industrial, manufacturing, and HVAC automation environments. The device supports switching AC voltages up to 400V and switching power of 2kVA, providing robust performance in demanding electrical applications.
The compact form factor measures 28mm in length, 10.4mm in width, and 25.1mm in height, enabling integration into circuit designs with limited space. Contacts are made from durable silver alloy material, ensuring long-term reliability and excellent conductivity.
TE Connectivity V23057B6A102 complies with IEC 61810 standards, RoHS directive 2011/65/EC, and holds certifications such as UL E214025 and VDE number 5146. Manufactured in the Czech Republic, it guarantees quality and regulatory compliance.
This power relay is ideal for industrial automation, electrical control panels, HVAC systems, manufacturing machinery, and other applications demanding reliable switching of moderate electrical loads on PCBs.
Coil voltage rated at 24V direct current. Single Pole Single Throw (SPST) contact configuration. Designed for PCB mounting with solder terminal type. Supports a maximum switching current of 5 amperes. Operates reliably between -40°C to 70°C temperatures.
Features a coil resistance of 1.2 kiloohms and coil power of 480 milliwatts. Compact size with dimensions approximately 28mm length, 10.4mm width, and 25.1mm height. Switching AC voltage up to 400V and switching power rated at 2kVA.
Durable silver alloy contact material for enhanced conductivity and longevity. Conforms to IEC 61810 safety standards and RoHS compliance. Manufactured in the Czech Republic. Explore TE Connectivity products and Power Relays categories on EnvMart to find precise automation and electrical components tailored to your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage rating of this power relay is 24V direct current (dc).
This relay supports a maximum switching current of 5 amperes.
It features a Single Pole Single Throw (SPST) contact configuration.
The dimensions of this relay are approximately 28mm in length, 10.4mm in width, and 25.1mm in height.
This model operates reliably between -40°C to 70°C.
The coil resistance is 1.2 kiloohms (kΩ).
It is designed for PCB mounting with solder terminal type connections.
This relay can switch AC voltages up to 400V.
The coil power consumption is 480 milliwatts (mW).
This relay complies with IEC 61810 standards, is RoHS compliant, and holds UL E214025 and VDE Cert. No. 5146 certifications.
The contacts are made from durable silver alloy material.
This power relay is manufactured in the Czech Republic.
