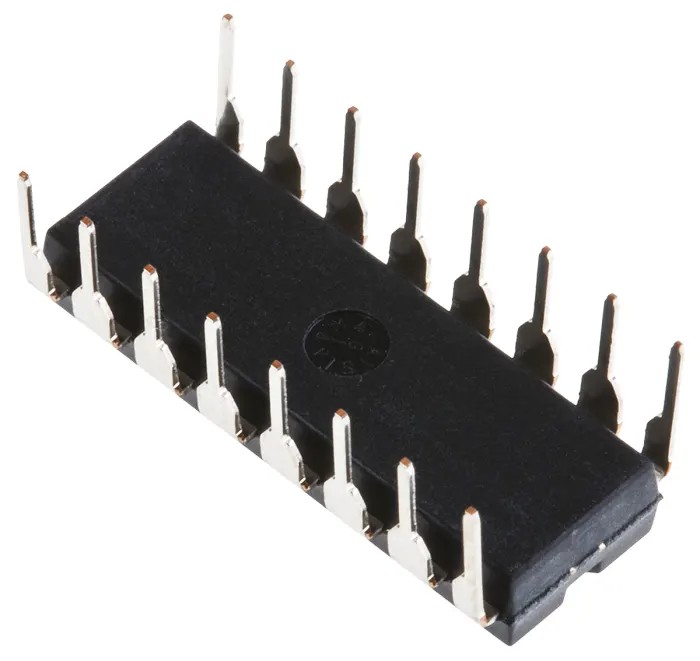

Texas Instruments Dual Channel Line Transceiver SN751177N, Differential, Non-Inverting, 16-Pin PDIP

The Texas Instruments SN751177N is a dual channel line transceiver designed for applications in line interface and data communication systems. It features differential, non-inverting input and output stages in a 16-pin PDIP through-hole package, facilitating straightforward assembly and integration into control and communication systems.

With a supply voltage range from 4.75V to 5.25V and a maximum propagation delay time of 35ns, the SN751177N provides high-speed signal transmission with reliable timing characteristics. Its robust output current ratings of ±60mA enable driving RS-422 standard communication lines with high integrity and minimal signal degradation.

The transceiver operates efficiently with a supply current of 110mA, making it suitable for designs where power consumption is a consideration. Its operational temperature range from -20°C to 85°C ensures reliability across various industrial environments, including automation, instrumentation, and communication equipment. The 16-pin PDIP form factor with compact dimensions (19.69mm length, 6.6mm width, 5.08mm height) allows for easy placement in densely packed circuit boards or legacy hardware.

Applications of the SN751177N include RS-422 line drivers and receivers, multipoint communication networks, and interfacing industrial control systems requiring differential signal transmission. The device is designed to conform to standard logic families, specifically the SN75 series, to ensure compatibility and ease of design within existing systems.

Its through-hole mount type and package type PDIP facilitate manual soldering and prototyping, as well as automated assembly in production. The non-inverting polarity characteristic guarantees signal outputs track input logic without inversion, simplifying design logic analysis.

This device operates with a minimum supply voltage of 4.75V. Featuring dual channel differential line transceiver capability for robust communication. Non-inverting polarity ensures direct signal mapping from input to output.

Wide operating temperature range ensures usage in industrial and commercial environments. Compact 16-pin PDIP package suitable for through-hole mounting on printed circuit boards. Explore our range of semiconductor line transceivers and interface ICs at EnvMart for reliable and high-performance industrial communication solutions.
