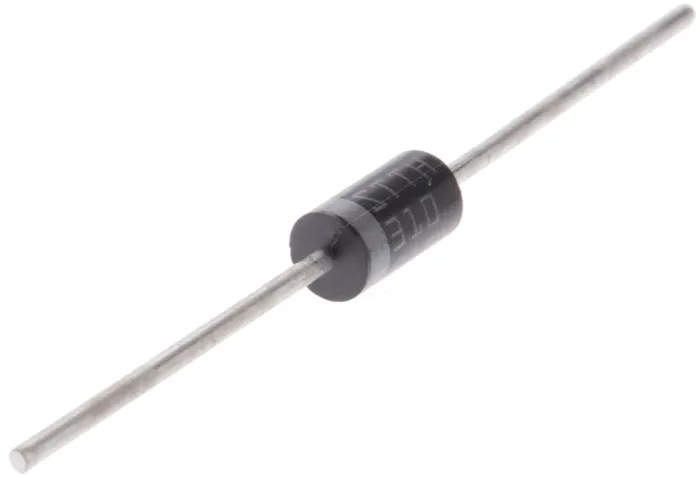

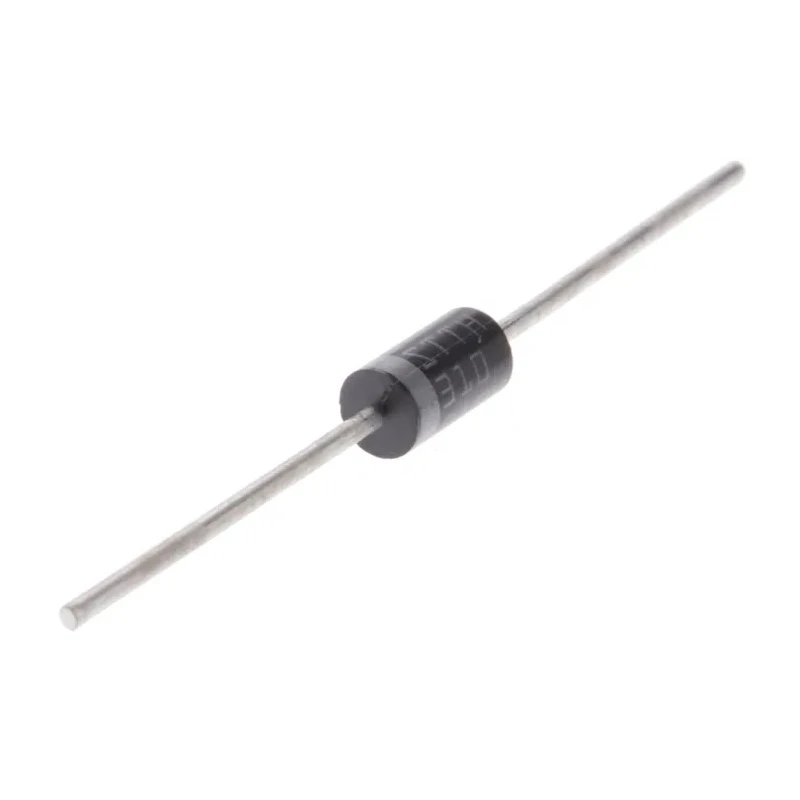

STMicroelectronics 1 kV 3 A Through Hole Diode Switching 2-Pin DO-201AD STTH310
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | STTH310 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | STTH310 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 55A |
| Maximum Forward Voltage Vf | 1.7V |
| Peak Reverse Recovery Time trr | 75ns |
| Vishay 1 kV 3 A Diode Soft Recovery 2-Pin DO-201AD UF5408-E3/54Brand | Vishay |
Key Features
- This diode features a maximum forward voltage of 1.7 V for efficient switching performance.
- It supports a peak non-repetitive forward surge current of 55 A, suitable for transient conditions.
- The device operates reliably in a temperature range from -65°C to 175°C.
- The peak reverse recovery time of 75 ns ensures fast switching capabilities.
- Compact dimensions of 9.5 mm length and 5.3 mm diameter allow easy integration into through-hole circuits.
- The diode complies with RoHS standards, ensuring environmental safety.
- Its single diode configuration and switching rectifier type improve circuit efficiency.
- Ideal for use in power, industrial, and electronic applications requiring reliable rectification.
Product Description
STMicroelectronics STTH310 is a high-performance switching diode designed for through-hole mounting in the DO-201AD package. It supports a maximum continuous forward current of 3 A and a peak reverse repetitive voltage rating of 1 kV, making it suitable for power rectification and switching applications.
The diode features a low maximum forward voltage of 1.7 V and fast switching times with a peak reverse recovery time of 75 ns. These characteristics contribute to efficient performance and reduced power loss in electronic circuits.
STTH310 can withstand transient surge currents up to 55 A and operates reliably in a wide temperature range from -65°C to 175°C, ensuring durability in harsh environments.
Its compact size, with a length of 9.5 mm and diameter of 5.3 mm, enables easy integration into through-hole PCB layouts. The device also meets RoHS standards, ensuring compliance with environmental and safety regulations.
This single diode configuration switching rectifier is ideal for use in industrial power supplies, electronic devices, automotive electronics, and other applications requiring robust and efficient diode switching solutions.
This diode features a maximum forward voltage of 1.7 V for efficient switching performance. It supports a peak non-repetitive forward surge current of 55 A, suitable for transient conditions. The device operates reliably in a temperature range from -65°C to 175°C.
The peak reverse recovery time of 75 ns ensures fast switching capabilities. Compact dimensions of 9.5 mm length and 5.3 mm diameter allow easy integration into through-hole circuits. The diode complies with RoHS standards, ensuring environmental safety.
Its single diode configuration and switching rectifier type improve circuit efficiency. Ideal for use in power, industrial, and electronic applications requiring reliable rectification. Explore more semiconductor components and switching diodes in EnvMart's extensive catalogue for your industrial, laboratory, and electronic system needs.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the STTH310 diode is 3 A.
This model has a peak reverse repetitive voltage rating of 1 kV.
The maximum forward voltage of the STTH310 is 1.7 V.
The diode supports a peak non-repetitive forward surge current of 55 A.
The diode operates reliably in a temperature range from -65°C to 175°C.
The peak reverse recovery time of the STTH310 is 75 ns.
The STTH310 has a length of 9.5 mm and a diameter of 5.3 mm.
This model supports through-hole mounting in the DO-201AD package.
The STTH310 is a single diode configuration switching rectifier.
Yes, the STTH310 complies with RoHS standards, ensuring environmental safety.
This diode is suitable for use in power, industrial, and electronic applications requiring reliable rectification.
The STTH310 has a pin count of 2.
