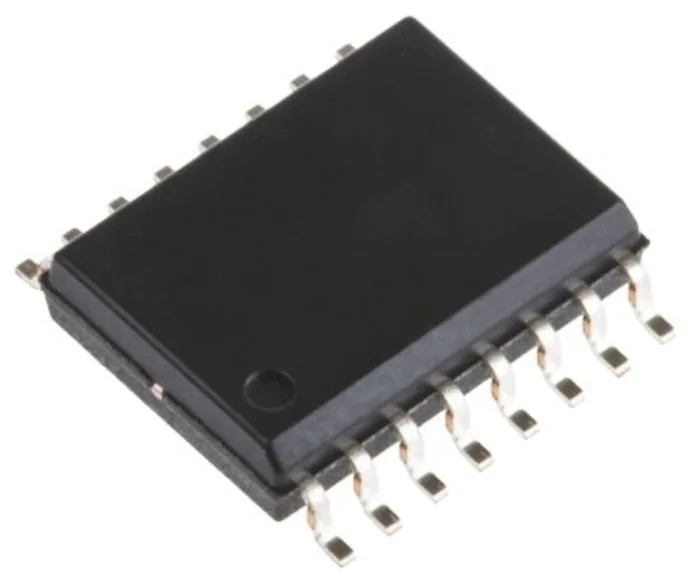

Renesas Electronics Line Transceiver, 3 State, Inverting, 16-Pin SOIC, CMOS Logic Family, 5V Supply Voltage HIN202EIBNZ

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics Line Transceiver, 3 State, Inverting, 16-Pin SOIC, CMOS Logic Family, 5V Supply Voltage HIN202EIBNZ

Name: Renesas Electronics Line Transceiver, 3 State, Inverting, 16-Pin SOIC, CMOS Logic Family, 5V Supply Voltage HIN202EIBNZ
Brand: Renesas Electronics
SKU: 308803
Price: 208.8 INR
Availability: InStock



Category Line Transceiver IC Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	1.75mm
Length	10mm
Model	HIN202EIBNZ
Width	6.2mm
Mount Type	Surface
Output type	3 State
Series	HIN202E
Input Type	TTL, CMOS
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Polarity	Inverting
IC Type	Line Transceiver
Pin Count	16
Maximum Supply Voltage	5V
Logic Family	CMOS
Logic Function	Transceiver
Maximum Propagation Delay Time @ CL	10μs
Supply Current	15mA

Key Features

Operates with a single +5V power supply for convenience.
Features onboard voltage doubler and inverter for efficient operation.
Low power consumption with a typical supply current of 15mA.
Wide operating temperature range from -40°C to 85°C enables industrial usage.
Maximum propagation delay time at capacitive load is 10 microseconds.
Surface mount SOIC package measuring 10mm length, 6.2mm width, and 1.75mm height.
Compatible with TTL and CMOS input types for versatile interfacing.
Designed to meet EIA high-speed RS-232E and V.28 specifications without requiring +/-12V supply.

Product Description

Renesas Electronics HIN202EIBNZ Line Transceiver is a high-performance interface IC designed for line transceiver applications with 3 state inverting logic. It is housed in a compact 16-pin SOIC surface mount package with CMOS logic family technology and operates with a single +5V supply voltage.

This line transceiver features an onboard voltage doubler and inverter, allowing it to comply with EIA high-speed RS-232E and V.28 standards without the need for a typical +/-12V supply voltage. Its low power consumption and supply current of only 15mA make it suitable for power-efficient designs.

The device supports TTL and CMOS input types, providing flexibility when interfacing with different logic families. It offers a maximum propagation delay time of 10 microseconds at capacitive loads, ensuring timely signal transmission in high-speed communication systems.

The operating temperature range of -40°C to 85°C allows usage in industrial and commercial environments with variable thermal conditions. The physical dimensions of the SOIC package are 10mm in length, 6.2mm in width, and 1.75mm in height, optimized for surface mounting on compact circuit boards.

Operates with single +5V power supply, reducing power complexity. Onboard voltage doubler and inverter for voltage level requirements. Low 15mA supply current for energy-efficient operation. Wide operating temperature range supports harsh environments.

Maximum propagation delay of 10μs ensures fast response times. Compact 16-pin SOIC surface mount package for space-saving design. Compatible with TTL and CMOS input logic levels. Meets EIA RS-232E and V.28 standards without +/-12V supply.

This line transceiver is ideal for industrial, electronics manufacturing, embedded system, and communication interface applications where efficient RS-232 signal level conversion and isolation are required. Its compact surface mount design and low supply requirements enable integration into automated and high-density electronic assemblies.

Explore more advanced semiconductor line interface ICs and line transceiver components at EnvMart for comprehensive industry-grade electronics solutions.

Explore more products in our Line Transceiver IC category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business
