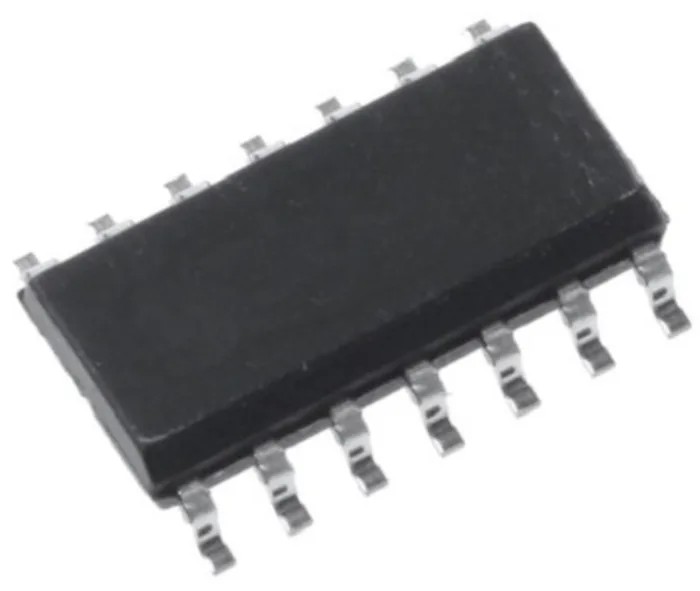

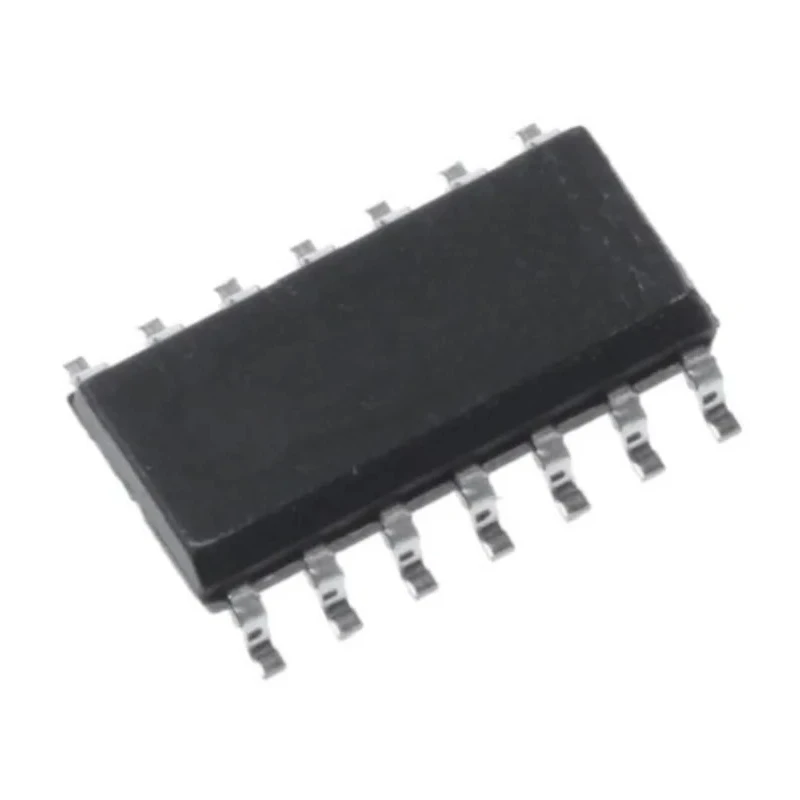

Renesas Electronics Line Transceiver ISL83491IBZ-T BiCMOS 3 State Bipolar 14-Pin SOIC ISL83491IBZ-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 1.75mm |
| Length | 8.65mm |
| Model | ISL83491IBZ-T |
| Width | 6mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | ISL83491 |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Bipolar |
| Pin Count | 14 |
| Maximum Supply Voltage | 12V |
| Logic Family | BiCMOS |
| Logic Function | Transceiver |
| Minimum Supply Voltage | -7V |
| Maximum Propagation Delay Time @ CL | 10ns |
| Supply Current | 100nA |
Key Features
- Operates with a supply voltage range from -7V to 12V.
- Features differential input and 3 State output for balanced communication.
- Suitable for RS-485 and RS-422 standards compliance.
- Supports operating temperatures from -40°C to 85°C.
- Low supply current consumption of 100 nA.
- Maximum propagation delay time at CL is 10 ns.
- Surface mount type for efficient PCB assembly.
- Does not require repeaters and minimizes signal reflection.
Product Description
Renesas Electronics ISL83491IBZ-T is a high-performance line transceiver designed with BiCMOS technology, offering reliable RS-485 and RS-422 balanced communication. This device integrates bipolar polarity and 3 State outputs, making it ideal for robust industrial and commercial electronic interface applications.
The transceiver supports a wide supply voltage range from -7V to 12V, enabling flexibility in various power environments. With its differential input and three-state output, it minimizes signal reflection and eliminates the need for repeaters, improving system efficiency.
Measuring compactly at 8.65 mm length, 6 mm width, and 1.75 mm height, packaged in a 14-Pin SOIC surface mount design, it facilitates easy integration into printed circuit boards using standard surface mount technology processes.
Operating temperature range from -40°C to 85°C ensures dependable performance in harsh industrial and automotive environments. The device consumes a minimal supply current of only 100 nA, contributing to energy-efficient designs.
The ISL83491IBZ-T model guarantees a maximum propagation delay of 10 ns under load conditions, supporting high-speed data transmission requirements in industrial automation, HVAC controls, manufacturing systems, and communication infrastructures.
Operates over a broad supply voltage from -7V to 12V. Differential input and 3 State output enable robust communication. Small form factor 14-Pin SOIC package for space-saving design. Wide temperature range for industrial reliability.
Low power consumption supports energy-efficient applications. Complies with RS-485 and RS-422 standards. Eliminates need for repeaters, reduces system complexity. Minimal signal reflection for cleaner data transmission. Suitable for automotive, industrial, and commercial electronics.
This line transceiver is a dependable component for electronics requiring reliable data transfer across balanced communication lines. Explore more advanced semiconductor products in our Electronics & Electricals category for your industrial and commercial projects.
Explore more products in our Line Transceiver IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ISL83491IBZ-T operates with a supply voltage range from -7V to 12V.
The maximum propagation delay time for the ISL83491IBZ-T is 10 ns under load conditions.
This model measures 8.65 mm in length, 6 mm in width, and 1.75 mm in height.
It features a 3 State output type, allowing for balanced communication.
The ISL83491IBZ-T utilizes a differential input type for communication.
The operating temperature range for the ISL83491IBZ-T is from -40°C to 85°C.
This model has a low supply current consumption of 100 nA.
The ISL83491IBZ-T is packaged in a 14-Pin SOIC surface mount type.
Yes, it complies with RS-485 and RS-422 standards for balanced communication.
This line transceiver is designed using BiCMOS technology, integrating bipolar polarity.
It is suitable for industrial automation, HVAC controls, manufacturing systems, and communication infrastructures.
The ISL83491IBZ-T is manufactured in India.
