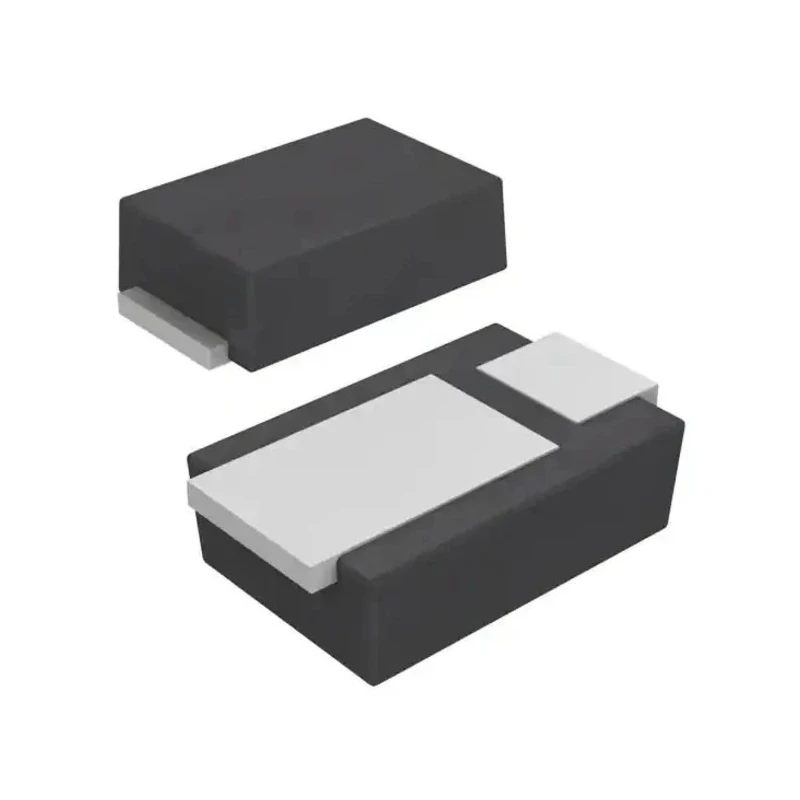

ROHM 40 V 1 A Surface Mount Schottky Rectifier Diode PMDE Package RBR1VWM40ATR

Free Delivery in India | Lowest Global Shipping Charges

ROHM 40 V 1 A Surface Mount Schottky Rectifier Diode PMDE Package RBR1VWM40ATR

Name: ROHM 40 V 1 A Surface Mount Schottky Rectifier Diode PMDE Package RBR1VWM40ATR
Brand: ROHM
SKU: 308481
Price: 14.83 INR
Availability: InStock



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Model	RBR1VWM40ATR
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	PMDE
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	20A
Maximum Forward Voltage Vf	0.52V

Key Features

This diode features a low forward voltage of 0.52 V for improved efficiency.
It supports a maximum continuous forward current of 1 A, suitable for general rectification tasks.
The device can operate over a wide temperature range from -55°C to 150°C.
Its peak reverse repetitive voltage is 40 V and peak non-repetitive forward surge current is 20 A.
Designed as a 2-pin single diode in a compact PMDE package for surface mounting.
RoHS compliant ensuring environmentally friendly manufacturing standards.
Ideal for industrial and electronic component applications including power supply circuits.

Product Description

The ROHM RBR1VWM40ATR is a high-reliability Schottky barrier rectifier diode designed for surface mount applications. Featuring a robust PMDE package, this diode operates at a maximum continuous forward current of 1 A and can handle a peak reverse repetitive voltage of 40 V.

It exhibits a low forward voltage drop of 0.52 V, contributing to higher efficiency in power rectification and switching applications. The device supports operation in harsh environments with temperature ratings from -55°C to 150°C, making it suitable for diverse industrial and electronic equipment.

This diode has a single silicon Schottky configuration with 2 pins, optimized for compact PCB layouts. Its peak non-repetitive forward surge current of 20 A allows it to withstand surges during transient conditions.

Compliance with RoHS standards ensures the diode is free from hazardous substances, making it appropriate for environmentally conscious designs. Common use cases include power supply rectification, voltage clamping, and protection circuits in various commercial and industrial devices.

This diode features a low forward voltage of 0.52 V for improved efficiency. It supports a maximum continuous forward current of 1 A, suitable for general rectification tasks. The device can operate over a wide temperature range from -55°C to 150°C.

Its peak reverse repetitive voltage is 40 V and peak non-repetitive forward surge current is 20 A. Designed as a 2-pin single diode in a compact PMDE package for surface mounting. RoHS compliant ensuring environmentally friendly manufacturing standards.

Ideal for industrial and electronic component applications including power supply circuits. Explore our wide range of semiconductor and Schottky diode products at EnvMart for enhanced reliability and performance in your electronic designs.

Explore more products in our Schottky Diodes & Rectifiers category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum continuous forward current of this diode is 1 A, making it suitable for general rectification tasks.

The peak reverse repetitive voltage rating of this model is 40 V, which is essential for its operation in various applications.

This diode features a low forward voltage drop of 0.52 V, contributing to improved efficiency in power rectification.

It can operate over a wide temperature range from -55°C to 150°C, making it suitable for diverse industrial and electronic applications.

The diode is designed in a compact PMDE package, optimized for surface mounting on PCBs.

This model has a pin count of 2, configured as a single diode.

The peak non-repetitive forward surge current for this diode is 20 A, allowing it to withstand surges during transient conditions.

Yes, this diode is RoHS compliant, ensuring it is free from hazardous substances and suitable for environmentally conscious designs.

This diode is ideal for applications such as power supply rectification, voltage clamping, and protection circuits in various commercial and industrial devices.

The peak reverse current for this model is 50 μA, which is relevant for its performance in specific applications.

This model is a Schottky rectifier, known for its low forward voltage drop and high efficiency in rectification tasks.

The country of origin for this diode is India, indicating where it was manufactured.
