| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.45mm |
| Length | 1mm |
| Model | BZX884B7V5L-HG3-08 |
| Mount Type | Surface |
| Series | BZX88L |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 7.5V |
| Zener Type | Small Signal |
Vishay BZX884B7V5L-HG3-08 is a high-reliability small signal Zener diode designed for surface mount applications requiring precise voltage regulation. This device features a nominal Zener voltage of 7.5 V and can dissipate power up to 300 mW, making it suitable for regulating power in sensitive electronic circuits.
This diode utilizes silicon planar technology to keep leakage current and noise to a minimum, enhancing performance stability across varying environmental conditions. Its voltage tolerance of ±2 % guarantees consistent voltage regulation within tight limits.

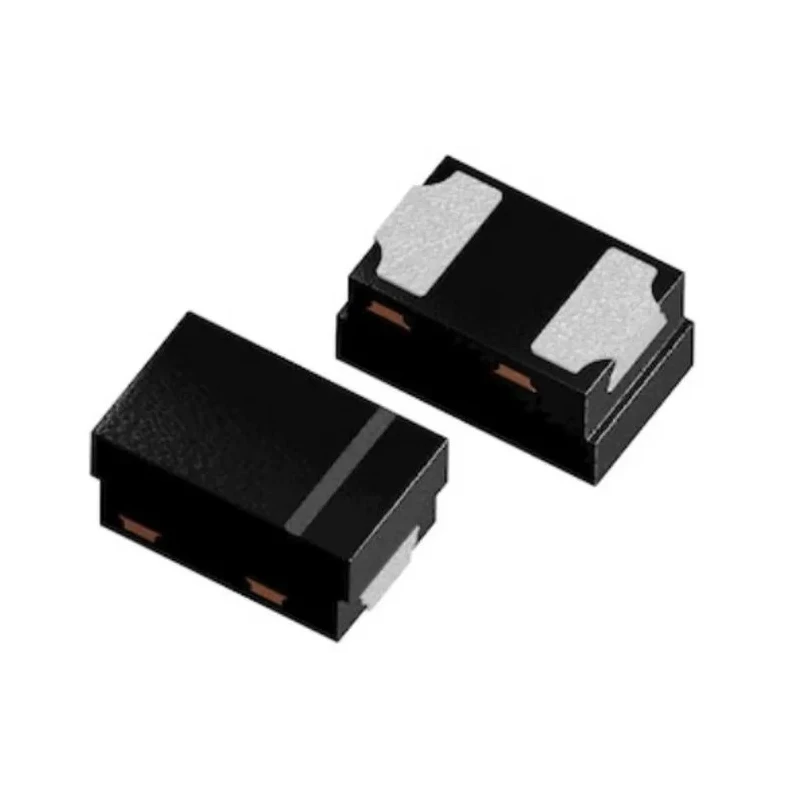

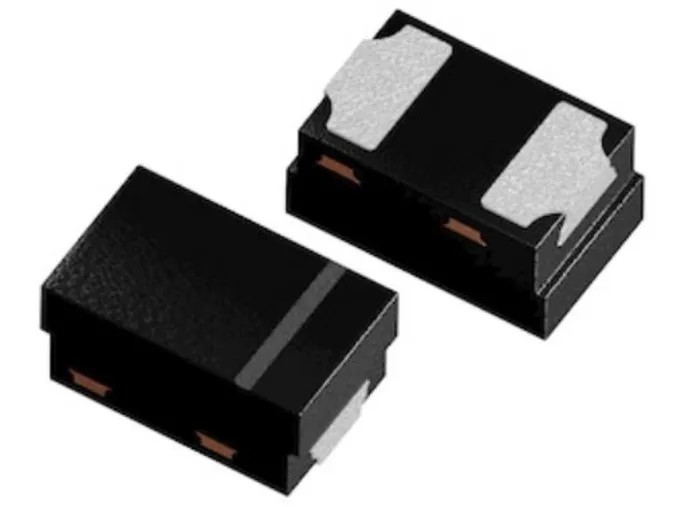

The package is a 2-pin DFN surface mount type with wettable flanks on the sidewalls and visible plastic body, allowing easy solder joint inspection without requiring X-ray methods. The diode operates reliably over a broad temperature range from -55°C to 150°C, meeting automotive-grade requirements with AEC-Q101 qualification and RoHS compliance.
Its compact dimensions of 1 mm length and 0.45 mm height allow design engineers to conserve PCB real estate in advanced electronic assemblies. The maximum reverse leakage current of 1 μA ensures minimal power losses in circuits requiring low current leakage.
Silicon planar construction for low noise and leakage. ±2 % Zener voltage tolerance for accurate voltage regulation. Surface mount 2-pin DFN package with wettable sidewalls for quality assembly. Temperature range from -55°C to 150°C for robustness.
Certified to automotive standard AEC-Q101 and RoHS directive. Compact size with 1 mm length and 0.45 mm height. Power dissipation rating of 300 mW suitable for various circuit protection roles. Maximum reverse leakage current of 1 μA to conserve power efficiency.
This Zener diode is ideal for industrial, automotive, manufacturing, and electronic design applications requiring efficient voltage regulation and protection in compact formats. The precise construction and automotive-grade certification make it suitable for demanding environments with reliability needs.
Available as a single diode in reels, this component integrates easily into automated PCB assembly lines. Explore more Vishay semiconductor components in the EnvMart catalog for comprehensive design options.
