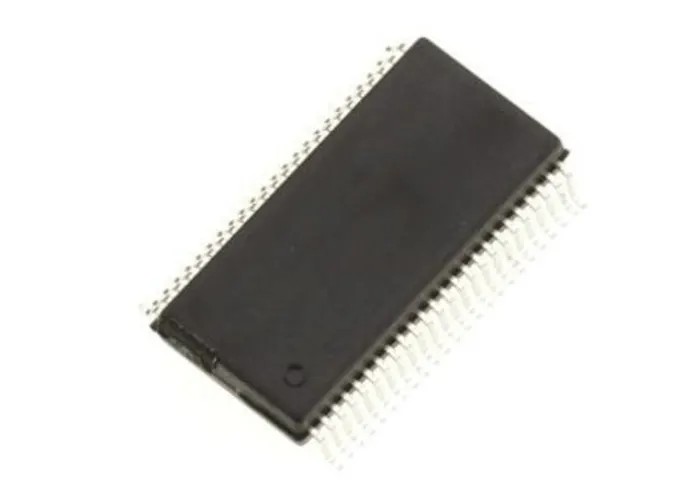

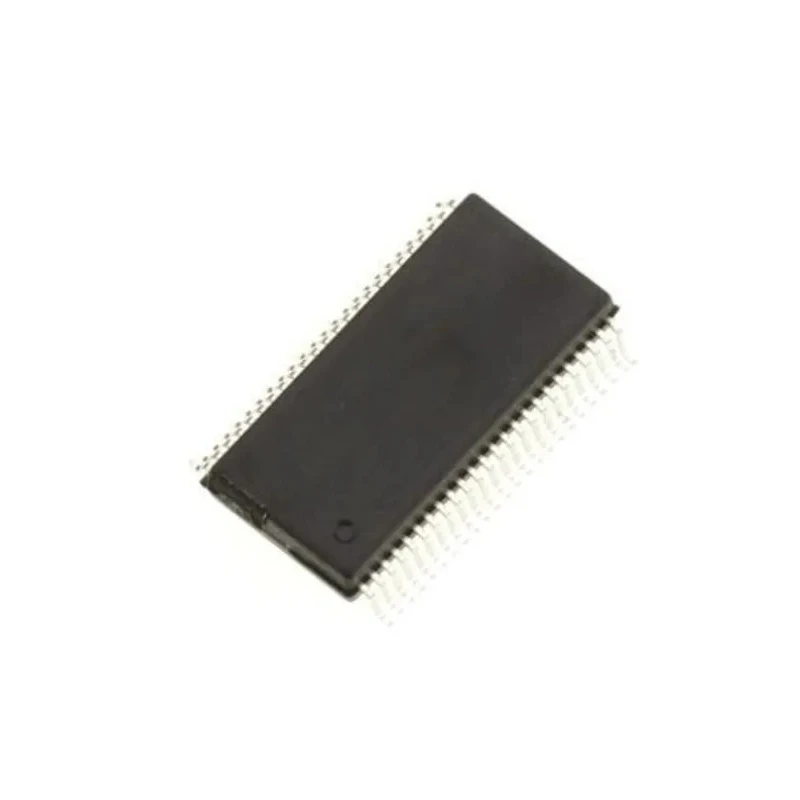

Renesas Electronics Bus Transceiver 16-Bit Non-Inverting 3 State 48-Pin SSOP 74FCT16245ATPVG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 2.3mm |
| Length | 15.9mm |
| Model | 74FCT16245ATPVG |
| Mount Type | Surface |
| Output type | 3 State |
| Series | 74FCT |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 16 |
| Pin Count | 48 |
| Maximum Supply Voltage | 7V |
| Logic Family | 74FCT |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | -0.5V |
| Maximum Propagation Delay Time @ CL | 4.6ns |
| Output Level | 3 State |
| Input Level | CMOS |
Key Features
- Operates as two independent 8-bit transceivers or a single 16-bit transceiver.
- Suitable for driving high-capacitance loads and low impedance backplanes.
- Output buffers allow live insertion for backplane drivers.
- Supports operating temperature range from -40°C to +85°C.
- Low input and output leakage current less than 1 µA maximum.
- High drive outputs with -32mA IOH and 64mA IOL capabilities.
- Typical output skew less than 250 picoseconds.
- Complies with CMOS input levels and 3-state output level.
Product Description
Renesas Electronics 74FCT16245ATPVG bus transceiver is a high-speed, low-power 16-bit non-inverting 3-state logic IC designed for synchronous communication between two buses. It operates either as two independent 8-bit transceivers or a single 16-bit transceiver, providing flexible bus interfacing.
This device is ideally suited for driving high-capacitance loads and low impedance backplanes in industrial, electronic, and communication applications. The output buffers are specifically designed to allow live insertion of boards when used as backplane drivers, ensuring reliable hot swapping.
The 74FCT16245ATPVG operates over a broad temperature range from -40°C to +85°C making it appropriate for harsh environments. It features low input and output leakage currents, high drive output currents (-32mA IOH, 64mA IOL), and minimal output skew (.
Explore more products in our Bus Transceivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a temperature range from -40°C to +85°C, making it suitable for harsh environments.
It features a total of 16 channels, allowing for flexible bus interfacing.
The output type is 3-state, which allows for multiple devices to share a common bus without interference.
It can provide a high drive output of -32mA for IOH and 64mA for IOL, suitable for driving high-capacitance loads.
The maximum supply voltage for this device is 7V.
It comes in a 48-pin SSOP package, designed for surface mounting.
The maximum propagation delay time at CL is 4.6ns, ensuring fast signal transmission.
Yes, the output buffers are designed to allow live insertion, making it suitable for backplane drivers.
This model belongs to the 74FCT logic family, which is known for its high-speed and low-power characteristics.
The height of this model is 2.3mm, which is important for space-constrained applications.
It complies with CMOS input levels, ensuring compatibility with various digital circuits.
This product is manufactured in India.
