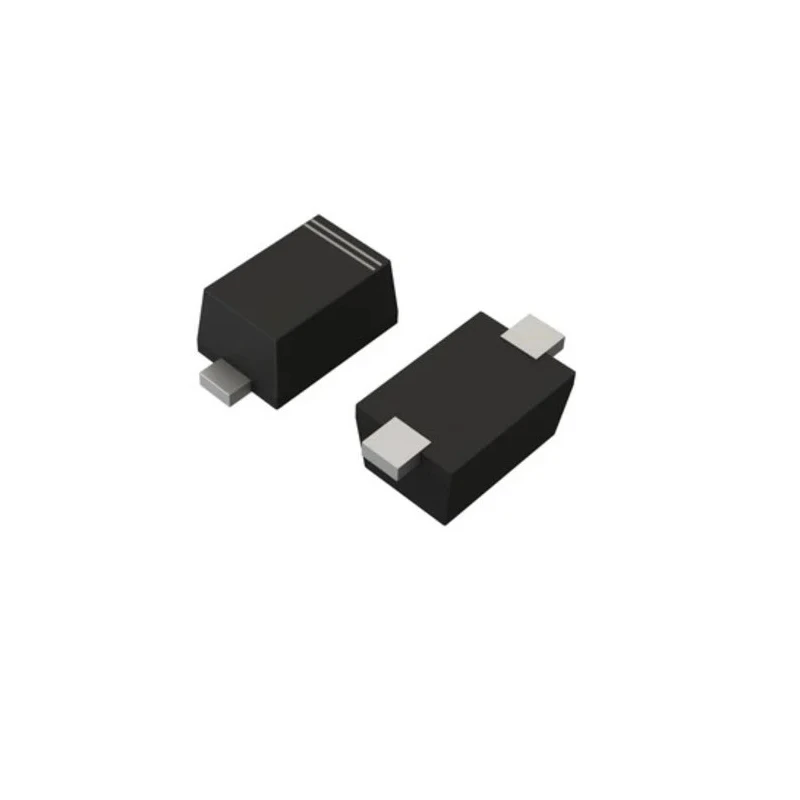

ROHM Schottky Diode 30 V 200 mA Surface Mount SOD-523 Package RB531SM-30FHT2R

Free Delivery in India | Lowest Global Shipping Charges

ROHM Schottky Diode 30 V 200 mA Surface Mount SOD-523 Package RB531SM-30FHT2R

Name: ROHM Schottky Diode 30 V 200 mA Surface Mount SOD-523 Package RB531SM-30FHT2R
Brand: ROHM
SKU: 307418
Price: 1746 INR
Availability: InStock



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.7mm
Length	1.25mm
Model	RB531SM-30FHT2R
Width	0.85mm
Mount Type	Surface
Series	RB531SM
Maximum Operating Temperature	150°C
Package Type	SOD-523
Minimum Operating Temperature	-40°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10μA
Maximum Forward Voltage Vf	0.35V

Key Features

The diode features a Schottky barrier epitaxial planar type structure for high reliability.
Maximum continuous forward current is 200 mA.
Peak reverse repetitive voltage is 30 V with a peak reverse current of 10 μA.
Maximum forward voltage drop is 0.35 V.
Operating temperature range is from -40°C up to 150°C.
Comes in a compact SOD-523 surface mount package.
Pin count of 2 facilitates easy PCB integration.
Meets automotive standard AEC-Q101 for enhanced durability.

Product Description

ROHM RB531SM-30FHT2R Schottky Diode is a high-performance surface mount diode designed with an epitaxial planar Schottky barrier structure. Rated for 30 V maximum reverse voltage and capable of handling a continuous forward current of 200 mA, it is optimized for small current rectification in a wide range of electronic applications.

This diode provides low forward voltage drop of 0.35 V which improves energy efficiency and reduces power loss. It operates reliably over a wide temperature range from -40°C to 150°C and meets the automotive-grade AEC-Q101 standard, ensuring robust performance in demanding environments.

The RB531SM-30FHT2R comes in a compact SOD-523 package with 2 pins, making it suitable for surface-mount technology in electronics manufacturing. Its small form factor with dimensions 1.25 mm length, 0.85 mm width, and 0.7 mm height supports space-saving PCB designs.

Typical applications include power management circuits, voltage clamping, reverse polarity protection, and rectification in consumer electronics, automotive electronics, telecommunications, and industrial equipment.

The diode's Schottky barrier design ensures fast switching and low forward voltage drop. Compact SOD-523 package optimizes space on PCB assemblies. Wide operating temperature range enhances reliability in diverse conditions.

Automotive standard compliant for use in vehicle electronics. Low peak reverse current minimizes leakage and improves circuit stability. Reliable performance for small signal rectification and power applications. Explore more products in Schottky Diodes & Rectifiers at EnvMart for your electronics manufacturing and design needs.
