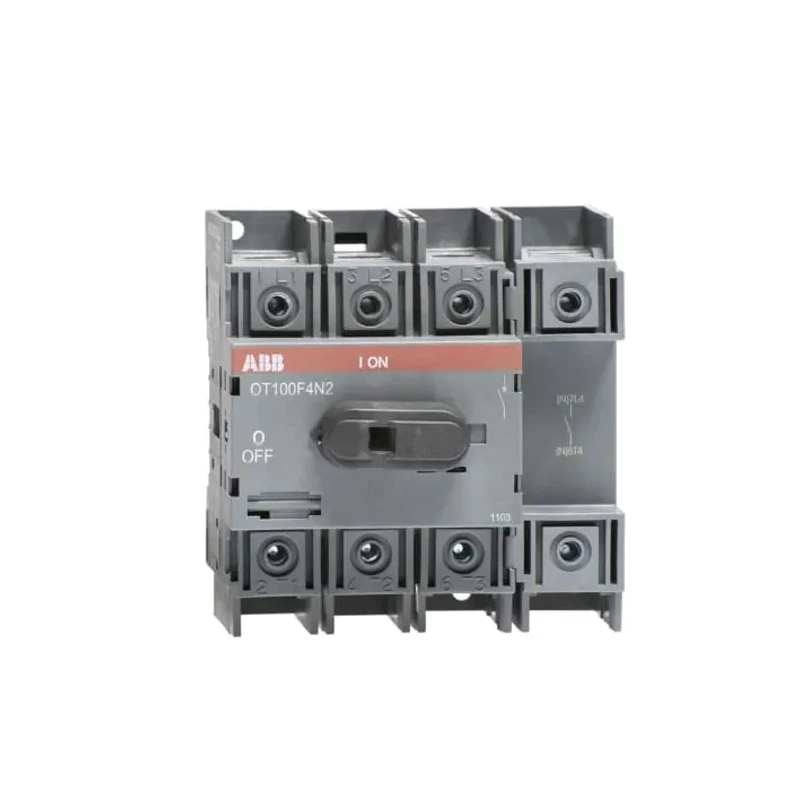

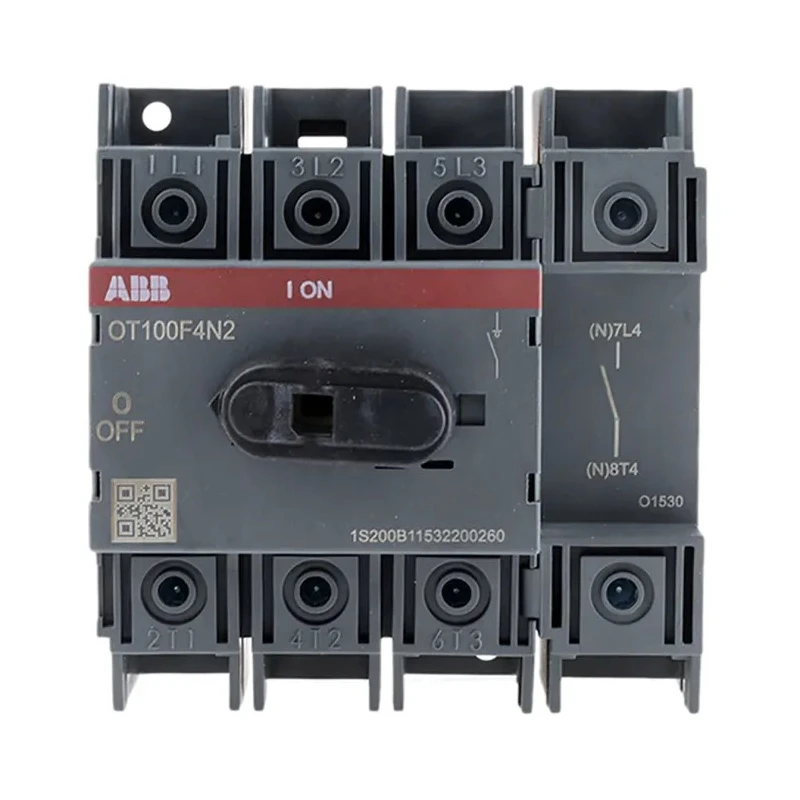

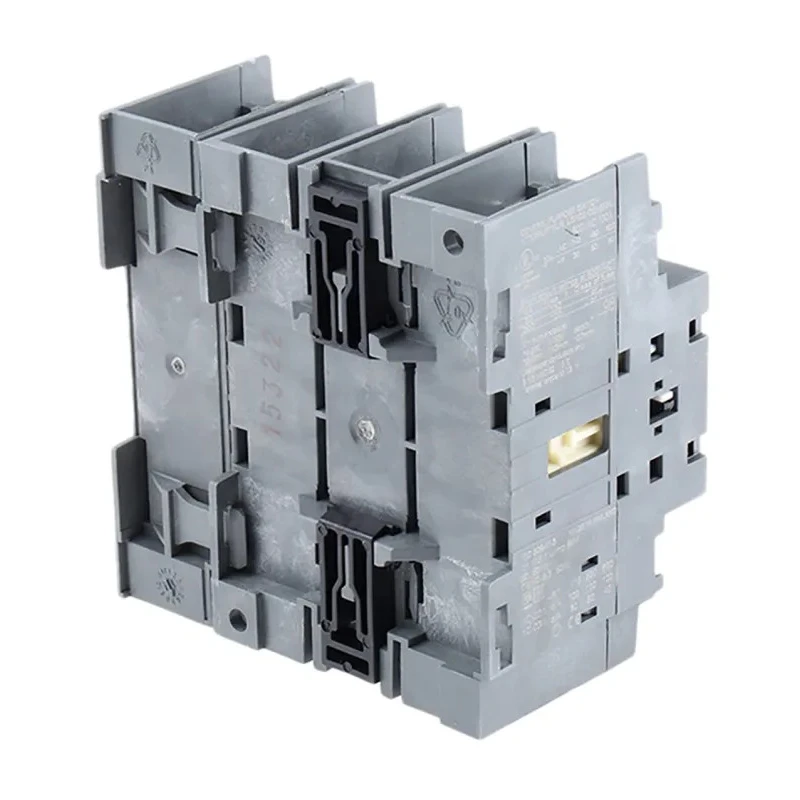

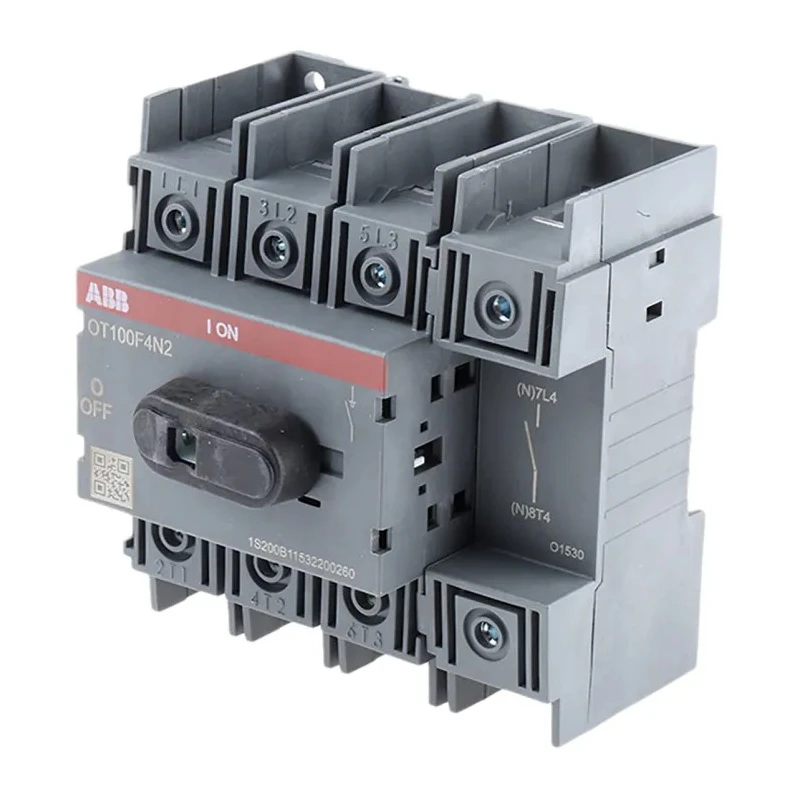

ABB 4-Pole Base Isolator Switch 3-Phase 100A 560kW IP20 OT100F4N2 1SCA105018R1001

Free Delivery in India | Lowest Global Shipping Charges

ABB 4-Pole Base Isolator Switch 3-Phase 100A 560kW IP20 OT100F4N2 1SCA105018R1001



Category Isolator Switch Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	100mm
Model	IP20
Depth	74mm
IP Rating	IP20
Width	97mm
Mount Type	Base
Series	OT
Minimum Operating Temperature	40°C
Switching Current	100A
Terminal type	Screw
Electrical Phase	3
Handle Colour	Grey
Hazardous Area Certification	ATEX
Number of Poles	4
Standards/Approvals	VDE, UL, RoHS, REACH, CSA, CE, ATEX
Switching DC Voltage	1000V dc
Switching AC Voltage	690V ac
Switching Power	560kW
ABB 4-Pole Base Isolator Switch -, IP20, 80A, 560 kWBrand	ABB

Key Features

Features 4 poles ideal for multi-phase electrical systems.
IP20 rating protects against solid objects larger than 12mm, ensuring safety.
Screw terminal connections provide secure and vibration-resistant wiring.
Equipped for 3-phase operation with 690V AC and 1000V DC voltage ratings.
Mechanical durability rated for 20,000 operating cycles delivers lasting reliability.
Compact dimensions (100mm L x 97mm W x 74mm D) support easy DIN rail mounting.
Rated impulse withstand voltage of 8kV withstands voltage surges effectively.
Low power loss per pole at 4W contributes to energy-efficient operation.

Product Description

ABB OT100F4N2 1SCA105018R1001 4-Pole Base Isolator Switch is a high-performance electrical switch engineered for reliable isolation of power circuits in industrial and commercial settings. Designed for 3-phase systems, it supports a switching current of 100A and a powerful 560kW rating to safely interrupt electrical loads.

Featuring a base mounting type, this isolator switch easily clips onto DIN rails delivering quick installation and maintenance convenience. Its 4-pole design ensures compatibility with multi-phase electrical wiring systems, essential for complex power setups.

The IP20 ingress protection rating safeguards users by preventing contact with live parts and avoiding entry of foreign solids larger than 12mm, which is critical for safety in operational environments. The grey handle offers a clear visual status indication to operators.

Electrical performance includes an AC voltage rating of 690V and a DC voltage rating up to 1000V, making it versatile across varied applications. The mechanical durability is rated for 20,000 cycles, ensuring long-term operational stability. Screw terminals provide secure wiring resistant to vibrations, supporting robustness in demanding industrial contexts.

With a rated impulse withstand voltage of 8kV, it effectively handles voltage surges, protecting connected equipment. The switch incurs low power loss of merely 4W per pole, making it energy efficient in continuous operation.

4 poles for multi-phase system compatibility. Base mount for DIN rail installation convenience. IP20 rating for enhanced user safety. High switching current of 100A and 560kW power capability. Mechanical durability of 20,000 cycles for dependable use.

Complies with VDE, UL, RoHS, REACH, CSA, CE, and ATEX standards. Screw terminals ensure vibration-resistant connections. Compact dimensions suited for confined installations. Rated to resist impulse voltages up to 8kV. Ideal for industrial kitchens, power plants, and mining sectors.

This ABB isolator switch is manufactured in Finland, reflecting high-quality standards in electrical safety components. It is particularly suitable for industrial automation, power distribution units, manufacturing plants, and harsh environmental applications requiring robust operation and compliance with safety regulations.
